Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 1560 x 1400 x 750 mm | |
|---|---|---|
| Individual user workspace depth | 700 mm | |
| Desktop thickness | 25 mm | |
| Privacy divider dimensions | 1400 x 300 mm | |
| Seated knee clearance height | 673 mm | |
| Fixed storage pedestal dimensions | 450 x 600 x 670 mm | |
| Cable grommet diameter | 60 mm | |
| ABS edge banding thickness | 2 mm | |
| A-frame steel leg section | 60 x 30 x 1.2 mm | |
| Pedestal leveling foot adjustment range | 10 mm | |
| Privacy divider mounting height above desktop | 300 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
| Total product net weight | 126 kg | |
|---|---|---|
| Desktop static uniform load capacity | 150 kg | |
| Drawer slide cycle durability | 50000 open/close cycles | |
| Desktop surface abrasion resistance | 2000 cycles | |
| Recommended user capacity | 2 seated office workers | |
| Surface heat resistance | 120 °C | |
| Product warranty period | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Desktop core and finish | 25mm E1-grade particleboard core with thermally fused white melamine face | |
|---|---|---|
| Edge banding | 2mm thick ABS edge banding on all desktop and pedestal edges | |
| Support frame | 1.2mm thick powder-coated white steel A-frame cantilever legs with terracotta accent bracket | |
| Privacy divider | Perforated terracotta MDF panel with matte finish, mounted with matching terracotta plastic brackets | |
| Fixed pedestal cabinet | 18mm thick melamine-faced engineered wood carcass with white finish, fitted with keyed cam lock | |
| Cable management ports | Dual 60mm diameter plastic cable grommets with brushed opening, mounted on pedestal side face | |
| Leveling feet | Reinforced nylon adjustable glides fitted to pedestal base and leg ends | |
| Drawer hardware | Cold-rolled steel full-extension drawer slides with zinc plating | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
Adjustment / rotation / tilt / mobility / storage features

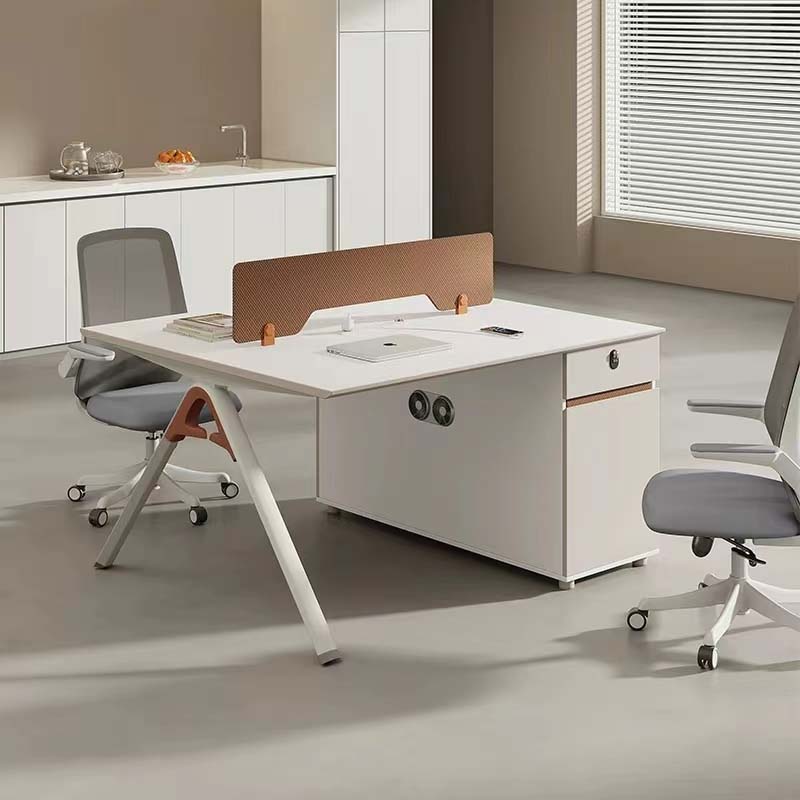

| Seating orientation | Dual face-to-face seated work positions separated by central desktop divider | |
|---|---|---|
| Storage access | One lockable utility drawer on fixed pedestal secures office supplies with supplied key | |
| Cable routing | Dual side cable grommets route power and data cables from desktop to floor under desk | |
| Floor leveling | Adjustable nylon glides at all base contact points compensate for uneven floor surfaces | |
| Privacy screening | Central perforated divider blocks direct line of sight between facing users without blocking light | |
| Assembly configuration | Desk ships as knockdown flat pack with steel-to-steel fixing hardware for rigid assembly | |
| Surface protection | Melamine desktop resists water, scratches, and common office stains for daily commercial use | |
| Lockable drawer internal dimensions | 305 x 387 x 241 mm | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
| Open plan office staff areas | Suits open-plan team zones for two adjacent staff, with divider to reduce visual distraction | |
|---|---|---|
| Small startup workspaces | Fits compact office layouts without heavy cubicle partitioning, maximizing usable floor space | |
| Home office dual work setups | Works for shared home offices where two users require separate dedicated work surfaces | |
| Co-working space dedicated desks | Suitable for co-working dedicated desk allocations with secure lockable storage for personal items | |
| Administrative department work areas | Supports daily administrative tasks with cable management for computers, phones, and office peripherals |
EU Market Access Requirements* EN Standards
| Office furniture safety standard | EN 527:2011 | |
|---|---|---|
| Office furniture durability standard | EN 527:2002+A1:2019 | |
| Furniture formaldehyde emission standard | EN 13986:2004+A1:2015 |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
| Office desk dimensional standard | GB/T 3326 | |
|---|---|---|
| Wood-based panel emission standard | GB 18580 | |
| Furniture mechanical performance standard | GB/T 10357.1 |
This product must meet the following technical requirements: 1. Office desk dimensional standard: GB/T 3326; 2. Wood-based panel emission standard: GB 18580; 3. Furniture mechanical performance standard: GB/T 10357.1; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
