PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	7200 × 700 × 750 mm
Per-seat work surface width	1200 mm
Work surface thickness	25 mm
PVC edge banding thickness	3 mm
Low privacy divider height above desk	400 mm
Knee clearance height under desk	680 mm
Knee clearance width per position	600 mm
Drawer pedestal dimensions per seat	400 x 500 x 650 mm
Open under-desk shelf dimensions	350 x 450 x 300 mm
Steel support leg tube section	40 x 35 mm
Levelling foot height adjustment	15 mm
Cable grommet diameter	80 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Worktop static uniform load capacity	150 kg
Recommended maximum user weight per seat	120 kg
Surface scratch resistance rating	2000 cycles
Net weight per workstation position	65 kg
Available finish color options	60
Product warranty period	5 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop core panel	25mm E1-grade particleboard core
Worktop surface finish	Matte melamine laminate, sage green and light grey
Desk edge protection	3mm PVC edge banding, color-matched to worktop
Frame and support structure	Powder-coated steel tube, silver finish
Privacy divider panels	Fabric-covered MDF core, sage green finish
Storage pedestal panels	18mm melamine-faced particleboard, two-tone sage green and grey
Drawer slides	Cold-rolled steel ball-bearing full-extension slides
Cabinet door hinges	Nickel-plated steel concealed hinges
Levelling feet	Nylon base with steel threaded stem
Desk feet glides	Nylon non-marking glides on angled end legs
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating capacity	6 individual seated work positions
Per-seat storage	1 lockable top drawer, 1 lower cabinet door, 2 adjacent open shelves
Cable management	Desktop cable grommets, under-desk wire tray routing for power/data
Privacy separation	Low 400mm desk dividers between adjacent seats
Levelling adjustment	15mm adjustable height on all support feet
Modular extendability	Connectable additional desk sections to extend run length
Drawer operation	Full-extension ball-bearing slides, keyed lock on top drawer
Surface performance	Water-resistant, stain-resistant, easy-clean melamine finish
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan corporate office areas	Suitable for large team departments requiring dense, efficient seating
Staff work zones for 4-6 person teams	Provides individual storage and partial privacy for focused work
Co-working and shared office spaces	Modular design supports flexible team size adjustment
Government and administrative office spaces	Durable construction meets high-traffic public sector use requirements
Startup and tech company open offices	Modern two-tone aesthetic matches contemporary office design
Call center and back-office operations	High-density layout supports efficient large team deployment

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables: Dimensions and safety requirements
EN 527-2:2016	Office work tables: Mechanical safety requirements
EN 13722:2004	Office furniture: Storage units

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk Products: Safety and performance standard
ANSI/BIFMA X5.9-2019	Storage Units: Safety and performance standard

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture
GB/T 3327-2016	Office desks and tables
GB 18580-2017	Formaldehyde emission limits for wood-based panels
GB/T 10357.1-2013	Furniture mechanical test for tables: strength and durability

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture;
2. GB/T 3327-2016: Office desks and tables;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels;
4. GB/T 10357.1-2013: Furniture mechanical test for tables: strength and durability;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LWS-6P-LIN-SG

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LWS-6P-LIN-SG

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LWS-6P-LIN-SGOpen Export Tool

Quick Actions

Post an RFQ

Product Description

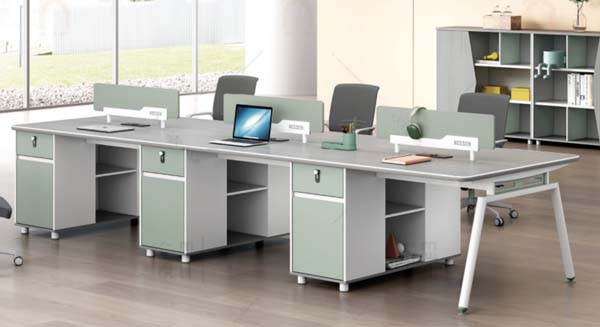

The 6-Person Linear Modular Open-Plan Office Workstation Desk (model LWS-6P-LIN-SG) is an unbranded multi-seat modular desk solution designed for efficient, collaborative open-plan work environments, with a sleek linear fixed configuration that balances shared space functionality with individual user needs. Its visual profile features a clean modern two-tone aesthetic, pairing sage green and light grey matte melamine surfaces with a silver powder-coated steel frame, low fabric-covered dividers that sit between adjacent seats to offer subtle visual separation without blocking cross-team sightlines, and integrated storage pedestals aligned with each work position to create a cohesive, uncluttered layout across the full desk run. Each seat is positioned to offer dedicated work surface space, with uniform knee clearance and consistent alignment for a streamlined, professional appearance. The desk is constructed for high-traffic commercial use, with a 25mm E1-grade particleboard worktop core faced with scratch-resistant matte melamine, protected by color-matched 3mm PVC edge banding to reduce wear from daily use. The support structure uses durable powder-coated steel tubing, with nylon levelling feet fitted with steel threaded stems to accommodate uneven floor surfaces. Low privacy dividers are built with fabric-covered MDF cores in a matching sage green finish, while integrated storage pedestals use 18mm melamine-faced particleboard in the coordinating two-tone palette, fitted with cold-rolled steel ball-bearing full-extension drawer slides, nickel-plated steel concealed cabinet hinges, and keyed locks for the top drawer of each unit. Functionality is tailored to open office workflows: the desk supports six individual work positions, each outfitted with a lockable top drawer, lower cabinet, two adjacent open shelves, desktop cable grommets, and under-desk wire trays to organize power and data cabling. The low dividers provide partial privacy for focused tasks while preserving the open feel of shared spaces, and the modular design allows users to connect additional desk sections to extend run length as team sizes shift. Levelling feet offer adjustable height to stabilize the desk on uneven subfloors. This workstation is suited for a range of commercial spaces: open-plan corporate offices for large team departments, 6person staff work zones, flexible co-working and shared office spaces, high-traffic government and administrative offices, contemporary startup and tech company open offices, and high-density call center or back-office operations. For procurement, stakeholders should note the 5-year product warranty, wide range of available finish color options to align with existing interior schemes, per-seat load ratings for worktop and user weight, packaged configuration split across multiple cartons, and required assembly time per set to plan for installation and space allocation appropriately.

6-Person Linear Modular Open-Plan Office Workstation Desk with Integrated Storage Specifications
