PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall workstation footprint	1400 x 1200 x 1100 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Suggested users	2 users
Distributed work-surface load	80 kg total
Pedestal top load	30 kg
Drawer load per drawer	15 kg
Product net weight	58 kg
Divider sound attenuation	6 dB speech-level reduction
Leveling adjustment	10 mm per foot
Warranty reference	5 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm melamine-faced particleboard with sealed edge banding
Divider panel	25 mm rigid board core upholstered on both faces with dark woven fabric
Metal legs	40 mm powder-coated cylindrical steel legs with gray non-marking end caps
Pedestal carcass	18 mm melamine-faced particleboard in slate gray with edge-sealed exposed borders
Drawer runners	Side-mounted three-section ball-bearing drawer slides with stop-out feature
Support rail	Rectangular steel or aluminum under-top rail connecting the leg frame to the cabinet

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Two-way occupancy	Two users work face-to-face or back-to-back on opposite sides of the 350 mm high divider, which separates sightlines without closing the desk.
Cable management	A 60 mm round center grommet allows monitor and power cables to pass from the work surface into the under-desk zone.
Storage operation	The right pedestal provides one 150 mm shallow drawer and one 430 mm lower file or storage compartment, each rated for a 15 kg moving load.
Floor leveling	Removable glide feet on the cylindrical legs and cabinet base permit 10 mm height compensation during installation.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suited to two-person benching zones where the central screen gives partial visual privacy while preserving compact shared footprint and cable routing.
Administrative or staff workspace	Suitable for daily computer and paperwork use because it combines a 750 mm writing surface, under-desk drawer storage, and a single pedestal layout.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables and desks, safety and dimensional requirements for the seated work surface and structure
EN 527-2:2002+A1:2003	Mechanical safety, durability, and stability test methods applicable to office desk acceptance
EN 1730:2023	Furniture tables test methods for strength, durability, and stability, suitable for frame and top-load verification
EN 13986:2004+A1:2015	Wood-based panels for construction and furniture use, relevant to panel performance and declaration

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to panel dimensions, edge finishing, and cabinet workmanship inspection
GB/T 3325-2017	Metal furniture general technical requirements, applicable to the steel leg frame, welded or fastened joints, and coating quality
GB/T 10357.5-2011	Furniture surface mechanical test for impact resistance, suitable as a work-surface acceptance test reference
GB 18580-2017	Formaldehyde emission limit for wood-based panels, suitable for procurement verification of the board substrate

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel dimensions, edge finishing, and cabinet workmanship inspection;
2. GB/T 3325-2017: Metal furniture general technical requirements, applicable to the steel leg frame, welded or fastened joints, and coating quality;
3. GB/T 10357.5-2011: Furniture surface mechanical test for impact resistance, suitable as a work-surface acceptance test reference;
4. GB 18580-2017: Formaldehyde emission limit for wood-based panels, suitable for procurement verification of the board substrate;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-DIV-SP-1400

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-DIV-SP-1400

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-DIV-SP-1400Open Export Tool

Quick Actions

Post an RFQ

Product Description

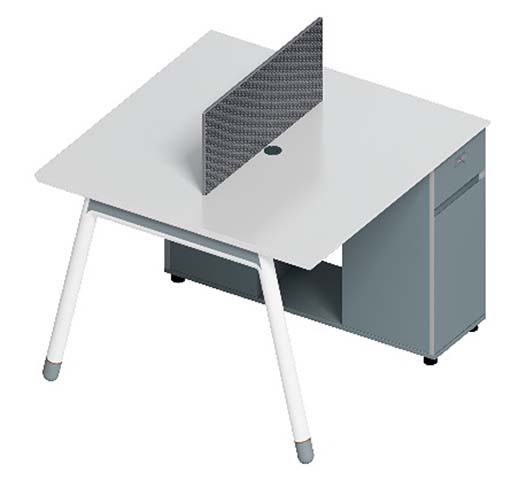

The Two-Person Workstation with Central Divider and Side Storage Pedestal is a compact benching solution designed for two users in shared office settings. Its layout places opposing work positions around a central fabric-covered divider, allowing face-to-face or back-to-back use while separating sightlines without fully enclosing either seat. A side pedestal on the right adds drawer and file storage within the same footprint, supporting an organized workspace for daily computer work, paperwork, and administrative tasks. Visually, the workstation combines a white work surface with slate-gray storage and a dark woven divider screen. The divider is 350 mm high and built with a 25 mm rigid board core upholstered on both faces, giving the bench a soft central accent and partial visual privacy. The work surface uses melamine-faced particleboard with sealed edge banding and a finished top thickness of 50 mm. Each main seat provides 680 mm of knee clearance height and 900 mm of width. The overall footprint is 1400 x 1200 x 1100 mm. Construction balances panel components with a metal support structure. The desk rests on 40 mm powder-coated cylindrical steel legs with gray non-marking end caps, while an 80 mm main support section with a 2 mm metal wall contributes to the understructure. A rectangular steel or aluminum rail connects the leg frame to the cabinet beneath the top. The pedestal uses 18 mm melamine-faced particleboard in slate gray with edge-sealed exposed borders, and its drawers operate on side-mounted, three-section ball-bearing slides with a stop-out feature. Practical features include integrated cable routing, accessible storage, and floor leveling. A 60 mm round center grommet allows monitor and power cables to pass from the work surface into the under-desk area, where cable management can be arranged. The cable opening is specified at 80 mm in diameter, with a cable tray depth of 120 mm. The right pedestal includes one 150 mm shallow drawer and one 430 mm lower file or storage compartment. Removable glide feet on the legs and cabinet base allow 10 mm of height compensation during installation. This workstation is well suited to open-plan benching zones, staff workspaces, and administrative offices where two positions must share a compact footprint. Buyers should plan for two users, note the 80 kg distributed work-surface load, 30 kg pedestal top load, and 15 kg load rating per drawer or storage compartment, and allow installation time for assembly and leveling. The unbranded model WS-2P-DIV-SP-1400 is supplied as a set, with packaging and carton details subject to the procurement quotation.

Two-Person Workstation with Central Divider and Side Storage Pedestal Specifications
