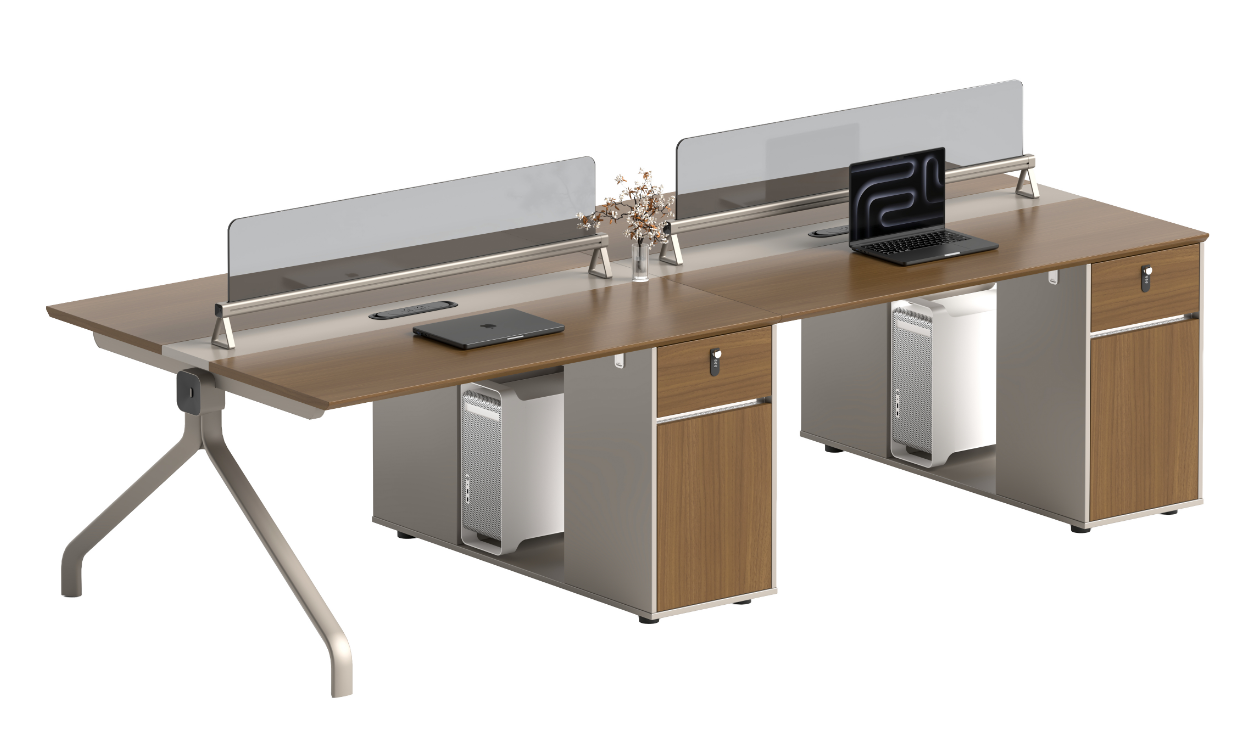

Four-Person Face-to-Face Office Workstation with Dividers and Storage Pedestals (model WS4-F2F-2800-WAL-GRY) is listed under Open Workstation. Dimensions: 2800 × 1200 × 1100 mm. Materials: 25 mm high-pressure laminate face on particleboard substrate with 2 mm PVC edge banding. Load capacity: 100 kg uniformly distributed load per individual 1200 x 600 mm work surface. Product Features: four-person,workstation,layout,desktop,divider,storage,pedestal,CPU,bay,cable,management,wood-grain,finish,metal,frame. This page consolidates 5 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | XIANGSHI | Model | WS4-F2F-2800-WAL-GRY |
| Overall dimensions (W × D × H) | 2800 × 1200 × 1100 mm | Finished Top Thickness | 50 mm |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | Leg / Support Section | 80 mm main section with 2 mm metal wall |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm | Desktop static load | 100 kg uniformly distributed load per individual 1200 x 600 mm work surface |
| Pedestal top load | 80 kg static load on cabinet-supported section of work surface | Drawer load capacity | 25 kg maximum contents load for the full-extension upper drawer |
| Drawer slide durability | 50,000 full extension and closure cycles without load failure beyond 25 kg | Hinge durability | 100,000 door-opening cycles to 95 degrees with self-closing function retained |
| CPU bay load | 20 kg maximum tower-computer load on the fixed shelf or base panel | Cable tray load | 10 kg maximum distributed load for power strips, adapters and bundled cables |
| Divider panel impact resistance | 15 kg horizontal point load applied for 1 minute without permanent loosening | Leveling compensation | 10 mm total floor-unevenness adjustment through nylon glides |
| Warranty | 5 year limited warranty for structural frame and cabinet components under single-shift office use | Worktop | 25 mm high-pressure laminate face on particleboard substrate with 2 mm PVC edge banding |
| Central top strip | 25 mm warm gray matte laminate panel with recessed cable ports and divider mounting points | Drawer front and door | 18 mm walnut-grain melamine-faced particleboard panel with matching PVC edge banding |
| Cabinet carcass | 18 mm warm gray melamine-faced particleboard with PVC-sealed exposed edges | Privacy screens | 6 mm frosted gray translucent acrylic panel with rounded upper corners and polished edges |
| Divider rail and brackets | 40 x 40 x 1.5 mm rectangular steel tube and 3 mm folded steel brackets with champagne powder coating | Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | Reference Packaging Volume | 1 m³/set |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2800 × 1200 × 1100 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load | 100 kg uniformly distributed load per individual 1200 x 600 mm work surface | |
|---|---|---|
| Pedestal top load | 80 kg static load on cabinet-supported section of work surface | |
| Drawer load capacity | 25 kg maximum contents load for the full-extension upper drawer | |
| Drawer slide durability | 50,000 full extension and closure cycles without load failure beyond 25 kg | |
| Hinge durability | 100,000 door-opening cycles to 95 degrees with self-closing function retained | |
| CPU bay load | 20 kg maximum tower-computer load on the fixed shelf or base panel | |
| Cable tray load | 10 kg maximum distributed load for power strips, adapters and bundled cables | |
| Divider panel impact resistance | 15 kg horizontal point load applied for 1 minute without permanent loosening | |
| Leveling compensation | 10 mm total floor-unevenness adjustment through nylon glides | |
| Warranty | 5 year limited warranty for structural frame and cabinet components under single-shift office use |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop | 25 mm high-pressure laminate face on particleboard substrate with 2 mm PVC edge banding | |
|---|---|---|
| Central top strip | 25 mm warm gray matte laminate panel with recessed cable ports and divider mounting points | |
| Drawer front and door | 18 mm walnut-grain melamine-faced particleboard panel with matching PVC edge banding | |
| Cabinet carcass | 18 mm warm gray melamine-faced particleboard with PVC-sealed exposed edges | |
| Privacy screens | 6 mm frosted gray translucent acrylic panel with rounded upper corners and polished edges | |
| Divider rail and brackets | 40 x 40 x 1.5 mm rectangular steel tube and 3 mm folded steel brackets with champagne powder coating |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
|---|---|---|
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
