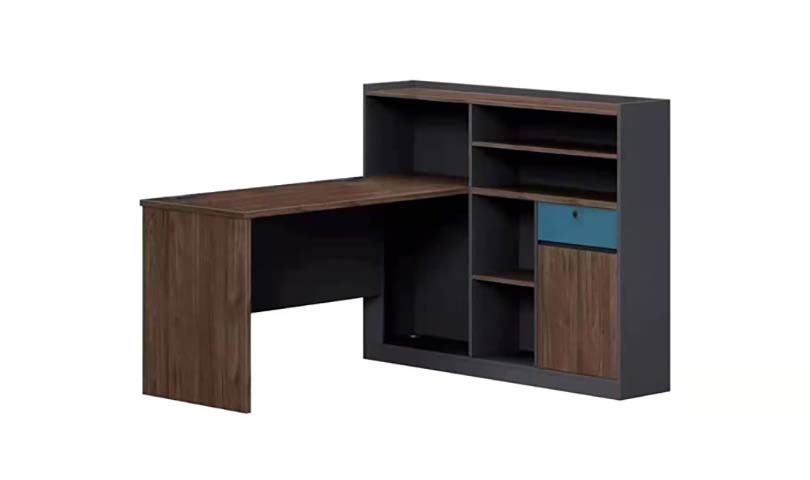

L-Shaped Study Desk with Integrated Open Bookcase and Storage Cabinet (model LSD-1200-WAL-BLK-BLUE) is listed under Open Workstation. Dimensions: 1200 × 1050 × 1350 mm. Materials: 18 mm melamine-faced particleboard for cabinet dividers, shelves and door; image-based construction requiring BOM confirmation. Load capacity: 40 kg. Product Features: L-shaped,desk,integrated,bookcase,hutch,open,shelving,drawer,hinged,door,mixed-tone,furniture. This page consolidates 6 groups of specifications and GB / EN standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | GENUOWA | Model | LSD-1200-WAL-BLK-BLUE |
| Carcass Panel Thickness | 25 mm | Back Panel Thickness | 9 mm |
| Door / Drawer Front Thickness | 22 mm | Shelf Thickness | 25 mm |
| Product net weight | 62 kg | Desktop distributed static load | 40 kg |
| Open shelf distributed load per level | 12 kg | Drawer load capacity | 8 kg |
| Lower cabinet storage load | 20 kg | Recommended user size | 1 person |
| Recommended monitor size | 27 in | Hardware cyclic-use target | 50,000 drawer and door operations |
| Recommended total occupancy load | 140 kg | Shelf Distributed Load | 30 kg/shelf |
| Board substrate | 18 mm melamine-faced particleboard for cabinet dividers, shelves and door; image-based construction requiring BOM confirmation | Worktop and left side panel | 25 mm walnut-woodgrain melamine board with matching edge banding |
| Dark exterior and interior panels | Graphite-black melamine laminate on particleboard | Drawer front | 18 mm blue-painted or melamine-finished panel with a central key aperture |
| Edge and edging | PVC or ABS edge banding at least 1 mm thick on exposed worktop and cabinet edges | Hardware | Steel cam-and-dowel connectors, concealed hinges, side-mounted drawer runners and one key-type drawer lock |
| Open document storage | Four open shelf compartments provide separate vertical and horizontal storage for books, binders and display items | Secured small-item drawer | One 180 mm-high blue drawer with central lock stores stationery and personal documents; supplied keys and runner type require BOM confirmation |
| Concealed lower storage | One walnut-grain hinged door covers the lower cabinet for files or a small computer tower, with the visible open side bay allowing cable passage | Cable / Vent Opening Reference | If fitted, 80 mm diameter |
| Carton dimensions | 1300 x 650 x 120 mm and 1400 x 470 x 110 mm | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | Reference Packaging Volume | 0.65 m³/set |
| Home study or bedroom workstation | Suitable for one student or remote worker because the compact 1200 mm desk provides seating clearance and immediate book storage | Small office and dormitory storage desk | Suited to individual paperwork, laptop work and reference-material storage where floor space is limited and a separate bookshelf is impractical |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Carcass Panel Thickness | 25 mm | |
|---|---|---|
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Product net weight | 62 kg | |
|---|---|---|
| Desktop distributed static load | 40 kg | |
| Open shelf distributed load per level | 12 kg | |
| Drawer load capacity | 8 kg | |
| Lower cabinet storage load | 20 kg | |
| Recommended user size | 1 person | |
| Recommended monitor size | 27 in | |
| Hardware cyclic-use target | 50,000 drawer and door operations | |
| Recommended total occupancy load | 140 kg | |
| Shelf Distributed Load | 30 kg/shelf |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Board substrate | 18 mm melamine-faced particleboard for cabinet dividers, shelves and door; image-based construction requiring BOM confirmation | |
|---|---|---|
| Worktop and left side panel | 25 mm walnut-woodgrain melamine board with matching edge banding | |
| Dark exterior and interior panels | Graphite-black melamine laminate on particleboard | |
| Drawer front | 18 mm blue-painted or melamine-finished panel with a central key aperture | |
| Edge and edging | PVC or ABS edge banding at least 1 mm thick on exposed worktop and cabinet edges | |
| Hardware | Steel cam-and-dowel connectors, concealed hinges, side-mounted drawer runners and one key-type drawer lock |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Open document storage | Four open shelf compartments provide separate vertical and horizontal storage for books, binders and display items | |
|---|---|---|
| Secured small-item drawer | One 180 mm-high blue drawer with central lock stores stationery and personal documents; supplied keys and runner type require BOM confirmation | |
| Concealed lower storage | One walnut-grain hinged door covers the lower cabinet for files or a small computer tower, with the visible open side bay allowing cable passage | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Carton dimensions | 1300 x 650 x 120 mm and 1400 x 470 x 110 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Home study or bedroom workstation | Suitable for one student or remote worker because the compact 1200 mm desk provides seating clearance and immediate book storage | |
|---|---|---|
| Small office and dormitory storage desk | Suited to individual paperwork, laptop work and reference-material storage where floor space is limited and a separate bookshelf is impractical |
EU Market Access Requirements* EN Standards
| EN 527-1 office desk safety | Recommended dimensional and structural safety reference for a seated work desk | |
|---|---|---|
| EN 527-2 office desk mechanical requirements | Recommended strength, durability and stability acceptance basis | |
| EN 16121 storage furniture safety | Recommended reference for non-domestic storage compartments, doors and shelves | |
| EN 13986 wood-based panels | Recommended panel-performance and documentation reference for melamine board components |
Standards applicable to China-market projects
| GB/T 3324 dimensional and structural quality | Applicable procurement acceptance reference for general wooden furniture dimensions, tolerances and workmanship | |
|---|---|---|
| GB/T 3325 surface durability | Applicable reference for wooden office furniture surfaces, edges and mechanical components | |
| GB 18580 formaldehyde control | Recommended acceptance criterion for wood-based-panel formaldehyde emission | |
| GB/T 10357 furniture mechanical tests | Recommended desk strength, stability and shelf-load verification basis |
This product must meet the following technical requirements: 1. GB/T 3324 dimensional and structural quality: Applicable procurement acceptance reference for general wooden furniture dimensions, tolerances and workmanship; 2. GB/T 3325 surface durability: Applicable reference for wooden office furniture surfaces, edges and mechanical components; 3. GB 18580 formaldehyde control: Recommended acceptance criterion for wood-based-panel formaldehyde emission; 4. GB/T 10357 furniture mechanical tests: Recommended desk strength, stability and shelf-load verification basis; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
