PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total workstation static load	200 kg distributed over four work surfaces
Load per individual work surface	50 kg
Pedestal drawer load	15 kg per drawer
Open shelf load	10 kg
Suggested occupancy	4 users
Mobility pedestal load	35 kg total stored contents
net weight	118 kg
Recommended assembly time	70 minutes
Top surface concentrated load test reference	100 kg over 300 x 300 mm
Pedestal caster rolling load	40 kg per pedestal

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm melamine-faced particleboard with walnut woodgrain finish and sealed edges
Edge banding	2 mm PVC or ABS impact-resistant edge banding around all desktop panels
Divider panels	Fabric-wrapped panel over a sound-damping composite core with light gray finish
Support legs	32 mm powder-coated dark gray steel tubes with splayed geometry and floor glides
Pedestal carcass	Melamine-faced board cabinet with dark gray side panels and walnut drawer fronts
Drawer handles	Recessed or slim black integrated pulls on upper and lower drawers

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating layout	Four users sit two per side, each receiving a 1200 x 600 mm work zone separated by central panels
Privacy division	Two centerline divider panels create sight-line separation between opposite seats while retaining a shared frame
Mobile storage	The two-drawer pedestal rolls between work positions and includes a central open shelf for active documents
Under-desk access	Splayed corner legs and offset pedestal preserve separate knee bays rather than using full modesty panels

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total packed volume	0.44 CBM
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open office benching	Suitable for four-person team clusters where face-to-face collaboration and partial visual privacy are both required
Administrative or project workspace	Recommended for clerical, finance, procurement or project teams using laptops, documents and shared mobile filing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS4-PNL-2400x1200-MP

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS4-PNL-2400x1200-MP

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS4-PNL-2400x1200-MPOpen Export Tool

Quick Actions

Post an RFQ

Product Description

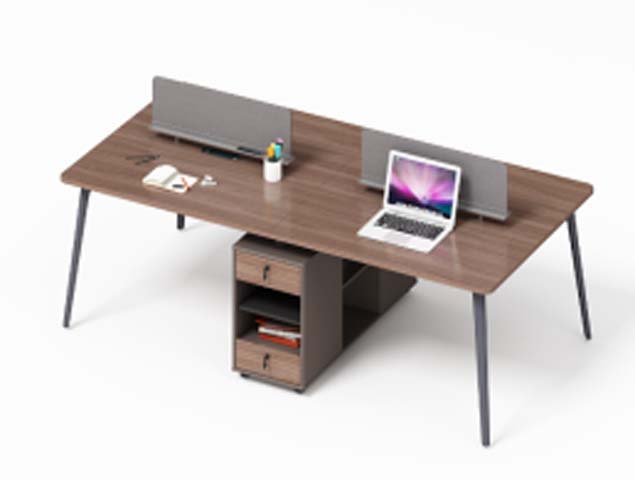

The Four-Person Panel Workstation with Central Dividers and Mobile Pedestal is an unbranded office benching solution for teams that benefit from shared proximity and partial visual separation. Its rectangular layout places four users two per side, with a 1200 by 600 mm work zone at each position. Two centerline fabric divider panels run between opposite seats, creating sight-line privacy while keeping the bench within one shared frame. The walnut woodgrain work surfaces provide a warm commercial appearance, complemented by light gray divider panels, dark gray supports, dark gray pedestal sides, and restrained black drawer pulls. Construction combines board, fabric, and steel components. Each desktop is made from 25 mm melamine-faced particleboard with a walnut finish and sealed edges, protected around all panels by 2 mm impact-resistant PVC or ABS edge banding. The finished top thickness is 50 mm. Dividers use a sound-damping composite core wrapped in light gray fabric. The support structure consists of powder-coated dark gray steel tubes in a splayed arrangement with floor glides; the main support section is 80 mm with 2 mm metal wall thickness. The storage pedestal combines a melamine-faced board cabinet, steel mobility elements, walnut drawer fronts, and recessed or slim integrated black handles. Designed for practical daily office use, the system offers 50 kg static load capacity per work surface and 200 kg distributed over the four surfaces. Each main seat has 680 mm high and 900 mm wide effective knee clearance. Splayed corner legs and the offset pedestal preserve separate knee bays instead of enclosing the underside with full modesty panels. Cable management includes 80 mm diameter cable openings and a cable tray with 120 mm depth. The two-drawer mobile pedestal rolls between positions and includes a central open shelf for active documents. It supports 15 kg per drawer, 10 kg on the open shelf, and 35 kg of total stored contents. This configuration is appropriate for open-plan four-person team clusters, administrative areas, project rooms, and clerical, finance, or procurement teams using laptops, paperwork, and shared mobile filing. Procurement planning should account for four users per set, a 118 kg net product weight, and assembly time of 40 minutes per set. Reference packing lists two cartons per set, with the main top packed at 2500 by 1050 by 350 mm and the return or pedestal packed separately; alternate reference logistics information records 180 kg packaged gross weight, four cartons, and one cubic meter per set.

Four-Person Panel Workstation with Central Dividers and Mobile Pedestal Specifications
