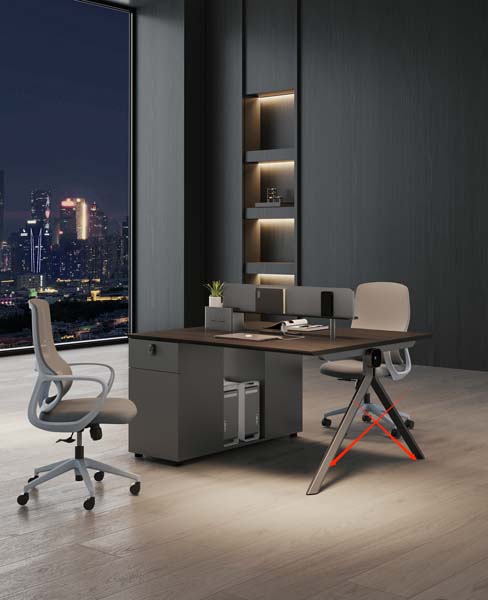

Product supplierTwo-Person Face-to-Face Modular Office Workstation with Integrated Storage, 25mm P2 grade particleboard with dark walnut melamine veneer, 1mm PVC edge banding
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 1200 × 750 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Worktop static load capacity | 120 kg | |
|---|---|---|
| Net weight of workstation unit | 115 kg | |
| Gas lift durability for task chair | 100000 cycles | |
| Caster rolling durability | 40000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop surface | 25mm P2 grade particleboard with dark walnut melamine veneer, 1mm PVC edge banding | |
|---|---|---|
| Storage pedestal body | 18mm P2 grade particleboard with matte grey melamine finish | |
| Support frame and legs | 1.5mm thick cold-rolled steel with matte grey powder-coated finish | |
| Desk divider screens | 12mm MDF core with grey fabric wrap | |
| Chair seat and back upholstery | Breathable grey mesh back, fabric seat with high-resilience polyurethane foam | |
| Chair frame and armrests | Reinforced polypropylene with light grey finish, integrated fixed loop armrests | |
| Chair five-star base | 350mm diameter reinforced nylon base | |
| Chair casters | 50mm diameter hard-floor polyurethane casters | |
| Chair gas lift | Class 3 carbon steel gas lift with 100mm adjustment stroke | |
| Drawer hardware | Three-section silent ball-bearing drawer slides, keyed cam lock | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Two-person face-to-face work layout | Provides two opposite seated positions with shared central work surface | |
|---|---|---|
| Integrated lockable storage drawer | Top pedestal drawer includes key lock to secure personal documents and valuables | |
| CPU storage compartment | Open under-desk slot holds full-size computer towers to free worktop space | |
| Chair height adjustment | Pneumatic lever adjusts seat height 100mm to match user leg length | |
| Chair swivel and mobility | 360-degree swivel seat and rolling casters allow easy movement around work area | |
| Privacy divider screen | Raised central screen blocks direct line of sight between facing users for reduced distraction | |
| Cable management access | Gap behind central divider allows routing of power and data cables to desk equipment | |
| Levelling feet on pedestal | Adjustable feet on cabinet base compensate for uneven flooring to keep worktop level | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Largest carton dimensions | 1800 x 750 x 120 mm | |
|---|---|---|
| Total shipping volume | 0.38 CBM | |
| 20ft GP container loading quantity | 58 units | |
| 40ft HQ container loading quantity | 142 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan corporate offices | Two-person modular unit fits standard open office bay spacing for team work areas | |
|---|---|---|
| Executive team work zones | Dark professional finish and integrated storage suitable for manager and assistant shared space | |
| Small business workspaces | Compact dual layout fits startup and small office floor plans without excess footprint | |
| Task-based work environments | Privacy divider and separate storage supports focused individual work while enabling easy collaboration | |
| 24-hour operation offices | Commercial-grade components support heavy daily use in financial or operational control rooms | |
| Matching ergonomic seating | Included task chairs are adjusted for 750mm desk height to reduce user fatigue during long shifts |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements for commercial office use | |
|---|---|---|
| EN 527-2:2002 | Office worktables dimensional requirements for ergonomic seated work | |
| EN 1335-1:2020 | Office chairs safety and performance requirements for task seating |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.1-2017 | Office chair safety and durability standard for general purpose task seating | |
|---|---|---|
| ANSI/BIFMA X5.5-2021 | Desk products performance standard for work surfaces and storage units | |
| ANSI/BIFMA X5.9-2019 | Storage units performance standard for pedestal drawers and cabinet components |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for desk panel quality and finish | |
|---|---|---|
| GB/T 3327-2016 | Office desk dimensional and structural stability requirements for seated work use | |
| GB/T 3325-2017 | Metal furniture general technical requirements, applicable for steel frame durability | |
| GB 18584-2001 | Indoor decorating and refurbishing materials limit of harmful substances for wood furniture |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for desk panel quality and finish; 2. GB/T 3327-2016: Office desk dimensional and structural stability requirements for seated work use; 3. GB/T 3325-2017: Metal furniture general technical requirements, applicable for steel frame durability; 4. GB 18584-2001: Indoor decorating and refurbishing materials limit of harmful substances for wood furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
