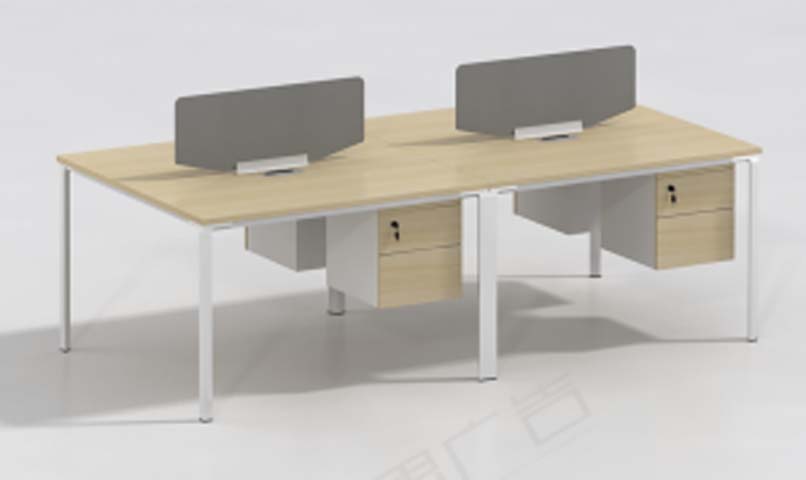

4-Person Back-to-Back Office Workstation Bench Desk with Dividers and Suspended Pedestals (model WS-4P-BB-2816-OWH) is listed under Open Workstation, with overall dimensions of 2800 × 1600 × 750 mm and main material of Particle‑board (PB). Load capacity: 135 kg. Certifications: Open-plan,cluster,configuration,low,desktop,privacy,dividers,suspended,lockable,drawers,white,metal,square,leg,frame. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall workstation dimensions | 2800 x 1600 x 750 mm | |
|---|---|---|
| Individual work surface per position | 1400 x 700 mm | |
| Desktop privacy divider dimensions | 1200 x 400 mm | |
| Worktop thickness | 25 mm | |
| ABS edge banding thickness | 2 mm | |
| Steel leg profile | 50 x 50 mm square tube | |
| Steel frame wall thickness | 1.5 mm | |
| Seated knee clearance height under worktop | 670 mm | |
| Knee clearance depth per user | 650 mm | |
| Suspended pedestal dimensions per position | 400 x 500 x 600 mm | |
| Cable grommet diameter | 60 mm | |
| Leveling glide adjustment range | 10 mm | |
| Pedestal upper drawer internal dimensions | 320 x 420 x 150 mm | |
| Pedestal lower file drawer internal dimensions | 320 x 420 x 280 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per-position worktop static load capacity | 135 kg | |
|---|---|---|
| Drawer slide cycle rating | 50000 open/close cycles | |
| Lock cycle rating | 10000 lock/unlock cycles | |
| Surface abrasion resistance | 2000 cycles | |
| Total workstation net weight | 135 kg | |
| Maximum user weight per position | 135 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop substrate and finish | E1 grade melamine-faced particleboard, light oak finish | |
|---|---|---|
| Edge banding | 2mm thick ABS impact-resistant edging, color matched to worktop | |
| Support frame and legs | 1.5mm wall thickness powder-coated white square steel tube | |
| Desktop privacy dividers | Fabric-upholstered fiberboard core, matte grey finish | |
| Pedestal construction | 18mm thick melamine-faced particleboard, matching light oak drawer fronts, white side panels | |
| Hardware components | Steel ball-bearing drawer slides, chrome-plated cam locks, nylon leveling glides |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Pedestal locking function | Central cam lock secures both drawers per position, includes 2 keys per lock | |
|---|---|---|
| Leveling adjustment | Rotating nylon glides on all leg bases adjust 10mm to compensate for uneven floors | |
| Cable management | 60mm grommets route power/data cables from worktop to under-desk cable trays | |
| Modular expandability | Pre-drilled connection points allow linking additional matching bench units for larger clusters |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office task work areas | Configured for 4 seated staff in 2x2 face-to-face layout, defines individual work zones | |
|---|---|---|
| Small team department zones | Modular connection points allow expansion for larger team clusters as headcount grows |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements for fixed-height desks | |
|---|---|---|
| EN 13501-1:2018 | Fire reaction classification for construction products, minimum Class E for work surfaces |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products safety, durability and structural performance standard for office workstations |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to worktop and pedestal components | |
|---|---|---|
| GB/T 3325-2017 | Metal furniture general technical requirements, applicable to steel support frame | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, minimum E1 grade requirement |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to worktop and pedestal components; 2. GB/T 3325-2017: Metal furniture general technical requirements, applicable to steel support frame; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, minimum E1 grade requirement; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
