2-Person L-Shaped Modular Office Workstation Desk with Central Privacy Divider and Integrated Storage Cabinet Specifications

OFW-2P-L-STG-001

Code：CYNPXQV1
Request supplier quotes
2026-09-29 16:55Popularity: 1
Correction History (visible to all visitors)
TimeFieldOriginal ValueCorrected ValueNote / Status
No correction records yet. Found an error? Click the flag at the end of a row to report it.

OFW-2P-L-STG-001

1 active supplier(s) >>
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall workstation footprint2400 x 1600 x 1050 mm
Desktop working height750 mm
Per-seat desktop width1200 mm
Desktop depth at primary work zone600 mm
Central privacy divider height above desktop300 mm
Privacy divider panel thickness40 mm
Cable grommet opening diameter60 mm
Integrated side storage cabinet height750 mm
Upper storage drawer internal depth400 mm
Lower cabinet door compartment internal height600 mm
Raised back storage channel height above desktop300 mm
Seated knee clearance height under desktop670 mm
A-frame steel leg wall thickness1.5 mm
Desktop panel thickness25 mm
Edge band thickness on desktop2 mm
Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Uniform desktop static load capacity127 kg
Drawer slide cycle rating50000 open/close cycles
Cabinet hinge cycle rating80000 open/close cycles
Total workstation net weight118 kg
Recommended maximum user weight per seat136 kg
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
Top Abrasion ReferenceAcceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement WarrantyStructure 5 years; hardware 3 years; finish 2 years
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop and cabinet panel substrate18mm grade E1 particle board core
Desktop surface finishThermally fused melamine laminate, scratch and stain resistant
Support leg and crossbar framePowder-coated white 1.5mm thick steel tube
Central privacy dividerFabric-wrapped MDF core with light green lower trim
Hardware componentsChrome-plated steel hinges, drawer slides, circular recessed handles
Cable management componentsABS plastic cable grommets and rear cable tray
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management systemRear raised channel and desktop grommets route power/data cables off work surface
Integrated fixed storageSide cabinet provides 1 upper drawer and 2 lower door compartments per workstation
Seated privacy partitionLow central divider blocks direct line of sight between adjacent seated users
Leveling adjustmentAdjustable feet on cabinet base compensate for uneven office flooring
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office clerical zonesProvides dedicated shared workspace with privacy divider for 2 staff, supports standard office tasks
Startup and co-working spacesModular structure enables flexible reconfiguration for growing team seating plans
STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011Office work tables: safety and strength requirements for commercial desk products
EN 527-2:2002+A1:2019Office work tables: dimensional requirements for seated work positions
EN 13722:2004Furniture: strength and durability requirements for storage cabinets and pedestals
STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021Desk products: safety, durability and structural performance standard for office workstations
ANSI/BIFMA X5.9-2019Storage units: performance requirements for integrated desk cabinets and drawers
STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017General technical requirements for wooden furniture, applicable to desk panel and cabinet construction
GB/T 3327-2016Performance requirements for office desks and tables, applicable to load and stability testing
GB 18580-2017Formaldehyde emission limits for wood-based panels, applicable to particle board substrates
GB/T 10357.1-2013Furniture mechanical performance test methods for table stability and strength
Standardized tender description text
This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk panel and cabinet construction;
2. GB/T 3327-2016: Performance requirements for office desks and tables, applicable to load and stability testing;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to particle board substrates;
4. GB/T 10357.1-2013: Furniture mechanical performance test methods for table stability and strength;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFW-2P-L-STG-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFW-2P-L-STG-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFW-2P-L-STG-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

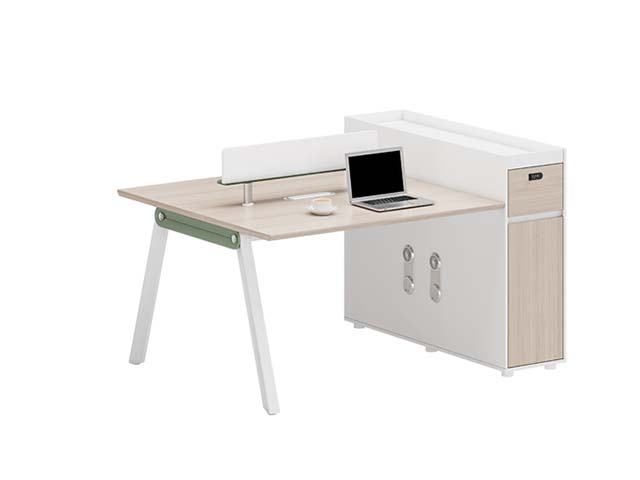

This 2-person L-shaped modular office workstation, model OFW-2P-L-STG-001, delivers a structured, modern shared workspace solution for commercial and flexible work environments. Its L-shaped layout positions two dedicated work zones at a right angle, with a low central fabric-wrapped privacy divider separating the two adjacent seats; the divider features subtle sage green lower accent trim for a muted, polished visual detail. The unit integrates a fixed side storage cabinet that aligns flush with the desktop height for a streamlined, cohesive appearance, supported by a crisp white powder-coated steel frame with cantilever A-frame legs that keep floor space open beneath work surfaces. Constructed for consistent daily use, the workstation features 18mm E1 grade particle board cores for desktops and cabinetry, finished with thermally fused scratch and stain-resistant melamine laminate. Support structures are built from thick powder-coated steel tube, with chrome-plated steel hardware for hinges, drawer slides and recessed circular handles. The central privacy divider uses an MDF core wrapped in soft fabric, while cable management components are formed from durable ABS plastic. Adjustable feet built into the cabinet base allow easy leveling to compensate for uneven flooring. Practical functionality is built into every element of the design. The rear raised cable channel and desktop grommets route power and data cables neatly off work surfaces to reduce clutter. The integrated fixed side cabinet offers one upper drawer and two lower door compartments per workstation to keep office supplies and personal items within easy reach. The low central divider blocks direct line of sight between seated adjacent users to reduce distraction without closing off collaborative visibility. The uniform desktop supports evenly distributed static load for regular office equipment, with hardware rated for repeated long-term open and close cycles for drawers and cabinet doors. This workstation is well suited for open-plan office clerical zones, where it provides dedicated, semi-private shared space for two staff to complete standard daily office tasks. Its modular design also makes it a strong fit for startup offices and co-working spaces, where flexible reconfiguration supports evolving team seating plans as headcount changes. When planning procurement, note that each unit ships across multiple cartons, with a straightforward assembly process that can be completed in a short dedicated window; the unit’s substantial net weight means teams should plan for appropriate delivery and placement support during installation. The unbranded design coordinates easily with a wide range of existing commercial office furniture palettes without clashing with established decor schemes.
