PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended seated users	2 users
Distributed desktop load capacity	100 kg total
Pedestal top support load	40 kg
Adjustable foot leveling range	10 mm
Suggested product net weight	95 kg
Suggested allowable floor load	2.0 kPa occupancy allowance
Drawer slide durability target	50,000 opening cycles
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm melamine-faced particleboard with impact-resistant edge banding
Central divider	Rigid panel core upholstered on both faces with dark woven fabric
Side privacy panel	Melamine-faced engineered-wood panel with matching edge banding
Storage pedestal	Melamine-faced engineered-wood carcass with smooth gray front and side panels
Drawer components	Steel ball-bearing drawer runners with formed drawer boxes
Leveling hardware	Steel or reinforced polymer adjustable feet with floor-contact pads

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Privacy separation	Central 350 mm-high upholstered screen separates two facing users while retaining sightline reduction
Cable routing	60 mm desktop grommet on each work position routes monitor and power cables below the top
Storage configuration	Right-side under-desk pedestal provides two front-access drawers for files and personal items
Floor leveling	Adjustable pedestal feet compensate for irregular floors and align the cabinet with the panel system

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suits two-person clerical or administrative clusters where visual privacy, cable outlet access, and under-desk filing are required
Procurement planning	Can be arranged in repeated back-to-back clusters for dense seated office planning while maintaining separate 600 mm knee bays

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS2-DIV-PED-2400

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS2-DIV-PED-2400

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS2-DIV-PED-2400Open Export Tool

Quick Actions

Post an RFQ

Product Description

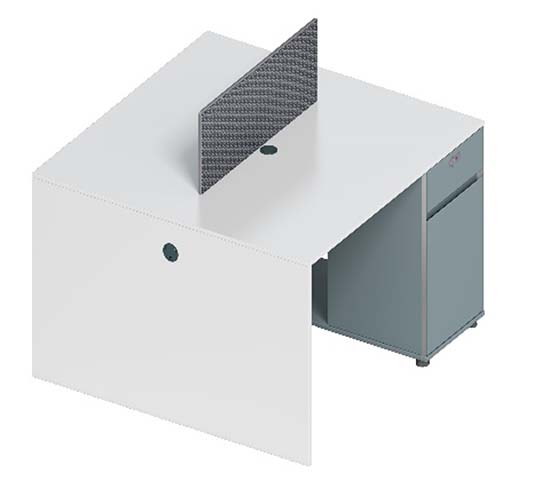

The Two-Person Panel-Based Workstation with Divider Screen and Storage Pedestal is an unbranded office workstation, model WS2-DIV-PED-2400, designed for facing seated work in organized open-plan settings. Its layout provides two main work positions separated by a central upholstered screen, with a side privacy panel and a right-side under-desk pedestal. The divider is 350 mm high and uses a rigid panel core upholstered on both faces in dark woven fabric, giving each user reduced visual distraction without forming a fully enclosed booth. The work surface is finished in melamine-faced particleboard and edged with impact-resistant banding, while matching engineered-wood panels create the structured panel system. The pedestal has a melamine-faced carcass with smooth gray front and side panels, formed drawer boxes, and steel ball-bearing runners. Steel is also used in the support structure and drawer guidance, with adjustable feet made from steel or reinforced polymer and fitted with floor-contact pads. Finished top thickness is 50 mm, the main support section is 80 mm with a 2 mm metal wall, and each main seat has 680 mm high and 900 mm wide effective knee clearance. The desktop supports a distributed load of 100 kg total, and the pedestal top supports 40 kg. Each work position includes a 60 mm desktop grommet that directs monitor and power cables below the surface, leading toward an 80 mm cable opening and a cable tray with 120 mm depth. The two-drawer pedestal provides front-access storage for files and personal items, while its adjustable feet compensate for uneven floors and align the cabinet with the panel system over a 10 mm leveling range. The drawer slide durability target is 50,000 opening cycles. This arrangement suits two-person clerical or administrative clusters that require visual separation, accessible cable routing, and under-desk filing. It can also be repeated in back-to-back clusters for dense office planning while retaining separate 600 mm knee bays. Procurement teams should plan for two seated users per set and confirm floor conditions against the suggested product net weight of 95 kg and suggested allowable floor load of 2.0 kPa occupancy allowance. The reference assembly time is 40 minutes per set. Packaging information should be checked at order confirmation because the supplied records show both 1 set in 2 cartons and a packaged gross weight reference of 180 kg per set in 4 cartons, with a reference packaging volume of 1 m3 per set and a listed main top carton dimension of 2500 by 1050 by 35 mm, with the return or pedestal packed separately.

Two-Person Panel-Based Workstation with Divider Screen and Storage Pedestal Specifications
