PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed worktop load	80 kg
Pedestal drawer load per drawer	15 kg
Open shelf load	10 kg
Recommended user capacity	1 person
Product net weight	48 kg
Static stability load	120 kg
Drawer slide opening cycle reference	50000 cycles
Warranty target	5 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop	25 mm wood-grain laminate panel with sealed edge banding
Storage pedestal	Melamine-faced particleboard or MDF carcass with taupe side panels and wood-tone drawer fronts
Privacy divider	Fabric-covered acoustic-style panel with a slim framed edge
Leg frame	Charcoal powder-coated square steel tube with two A-frame/splayed legs
Drawer pulls	Integrated dark recessed pulls, likely plastic or painted metal insert
Internal drawer runners	Side-mounted ball-bearing steel slides

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Privacy screen mounting	The freestanding rectangular divider is fixed on the rear desktop to reduce cross-desk sight lines
Cable management provision	Use a 60 mm rear grommet or under-top tray for monitor and power cables
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Flat-pack carton dimensions	1480 x 760 x 110 mm for the largest pack
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office workstation	Suitable for a single employee in open-plan offices because the desktop screen provides sight-line separation and the pedestal stores daily documents
Small private office or manager desk	Fits a compact executive or administrative workspace requiring a laptop or monitor, drawer storage and a clean leg bay

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1 applicability	Use EN 527for office desk safety, dimensions and structural requirements
EN 527-2 applicability	Use EN 527for mechanical safety test methods and stability verification of the work surface
EN 13986 applicability	Use EN 13986 for wood-based panel performance declarations if the supplier uses engineered board
EN 1022 applicability	Use EN 1022 for seating-adjacent furniture stability logic where the desk is used on level commercial flooring

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324 applicability	Use GB/T 3324 for wooden furniture dimensions, tolerances and structural inspection of the desk and pedestal
GB/T 3325 applicability	Use GB/T 3325 for metal furniture requirements covering the steel leg frame and finished metal surfaces
GB 18584 applicability	Use GB 18584 for indoor wooden furniture formaldehyde emission limits during procurement inspection
GB/T 10357.1 applicability	Use GB/T 10357.1 for table strength and load test methods when verifying worktop performance

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324 applicability: Use GB/T 3324 for wooden furniture dimensions, tolerances and structural inspection of the desk and pedestal;
2. GB/T 3325 applicability: Use GB/T 3325 for metal furniture requirements covering the steel leg frame and finished metal surfaces;
3. GB 18584 applicability: Use GB 18584 for indoor wooden furniture formaldehyde emission limits during procurement inspection;
4. GB/T 10357.1 applicability: Use GB/T 10357.1 for table strength and load test methods when verifying worktop performance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OWS-1400-LEFT-PED-SCREEN

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OWS-1400-LEFT-PED-SCREEN

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OWS-1400-LEFT-PED-SCREENOpen Export Tool

Quick Actions

Post an RFQ

Product Description

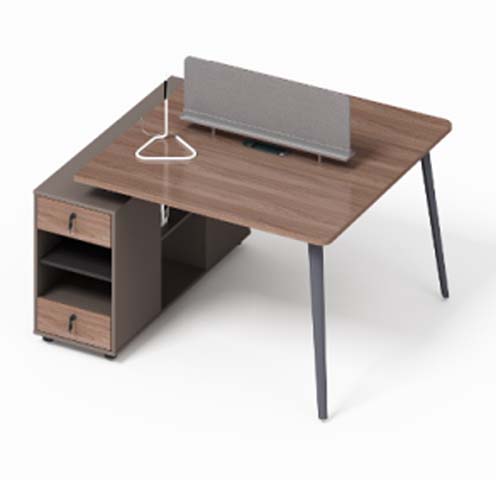

The Panel Leg Office Workstation with Left Storage Pedestal and Desktop Privacy Screen, model OWS-1400-LEFT-PED-SCREEN, is an unbranded rectangular desk solution designed for single-user office settings. Its visual character is modern and structured, combining a wood-grain laminate work surface, taupe pedestal side panels, wood-tone drawer fronts, and charcoal steel legs. A slim-framed, fabric-covered divider stands at the rear of the desktop, giving the workstation a defined individual zone while maintaining an open-office appearance. The left-side pedestal balances the worktop and keeps storage close at hand, while the splayed A-frame legs create a clean leg bay and a confident, contemporary silhouette. The finished top is specified at 50 mm thick, with the worktop panel itself formed from 25 mm wood-grain laminate and sealed edge banding. The storage pedestal uses a melamine-faced particleboard or MDF carcass, with integrated dark recessed pulls and side-mounted ball-bearing steel drawer runners. The leg frame is made from square steel tube with a charcoal powder-coated finish and an 80 mm main section with a 2 mm metal wall. Practical features are tailored to daily desk use. The freestanding rectangular privacy screen is fixed to the rear desktop to reduce cross-desk sight lines, making the workstation suited to open-plan environments where personal focus and visual separation are needed. The left pedestal provides drawer storage for documents and everyday office items, while an open shelf offers accessible storage. Cable management is supported by a rear grommet and an under-top tray for monitor and power cables, helping keep the work surface uncluttered. The workstation is rated for one user, with an 80 kg distributed worktop load, a 120 kg static stability load, a 15 kg load per drawer, and a 10 kg open-shelf load. The cable tray also carries a 10 kg load reference. The drawer slides reference 50,000 opening cycles, and the main joints are referenced for five controlled assembly cycles. This model is appropriate for open-plan office seating, compact private offices, administrative workspaces, and small manager desks where a laptop or monitor, personal storage, and a tidy knee space are required. Procurement teams should confirm the supplied packaging details for the specific order, as logistics information includes both a two-carton flat-pack reference and a four-carton reference. Assembly time is referenced at 40 minutes per set, and planning should account for desk-level delivery, installation access, cable layout, and pedestal orientation. The left-hand storage configuration should also be checked against circulation space and user preference before purchase.

Panel Leg Office Workstation with Left Storage Pedestal and Desktop Privacy Screen Specifications
