PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 1200 × 1200 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

desktop uniform static load capacity	120 kg
recommended maximum user weight per seat	150 kg
total unit net weight reference	115 kg
formaldehyde emission grade (panel material)	E0 ≤ 0.05 mg/m³
surface abrasion resistance (desktop)	2000 cycles
edge band peel strength	1.5 N/mm
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

desktop panel	25mm thick melamine-faced MFC particle board
support legs	1.5mm thick powder-coated dark grey steel, angled profile
cabinet carcass	18mm thick melamine-faced MDF, dark grey and white finish
cabinet back panel	3mm thick hardboard (MDF backing)
central privacy divider	18mm thick brown wood-grain melamine panel
edge banding	2mm thick PVC edging on all exposed panel edges
cabinet door handles	Matte black aluminum alloy recessed pull handles
storage cabinet feet	20mm height adjustable nylon leveling feet
cable grommet	ABS plastic recessed cable management port with brush strip
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

seating capacity	2 side-by-side seated office staff positions
cable management	Recessed desktop grommet routes power/data cables under work surface
storage configuration	2 lockable end closed cabinets, 8 upper open cubbies, 2 lower open storage bays
divider function	Central brown panel separates work zones to reduce visual distraction between users
leveling adjustment	Adjustable feet on cabinet base compensate for uneven office flooring
storage accessibility	Open cubbies provide immediate access to frequently used files and supplies
assembly structure	Knock-down (KD) bolt-together construction for flat-pack shipping and on-site assembly
Cable / Vent Opening Reference	If fitted, 80 mm diameter

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

open plan office work areas	Accommodates two staff with integrated storage to minimize footprint in dense offices
small team work zones	Suitable for admin, customer service or project teams needing shared adjacent workspaces
startup and co-working spaces	Modern color-blocked design fits flexible leased office fitouts with quick assembly
home office for two users	Provides separated work zones and ample storage for dual home work setups
departmental workstation clusters	Can be grouped linearly to create larger multi-seat open office layouts

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables - Safety and strength requirements for commercial work surfaces
EN 14073-2:2004	Office storage furniture - Safety requirements for cabinets and shelving units
EN 14074:2004	Office furniture - Test methods for strength and durability of tables and storage

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden office furniture, applicable for panel strength and finish
GB/T 3327-2017	Performance requirements for office desks, applicable for desktop load and stability testing
GB 18580-2017	Formaldehyde emission limits for wood-based panels, applicable for E0 grade panelAcceptance
GB/T 10357.1-2013	Furniture mechanical performance test for tables, applicable for static load and stability

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable for panel strength and finish;
2. GB/T 3327-2017: Performance requirements for office desks, applicable for desktop load and stability testing;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable for E0 grade panelAcceptance;
4. GB/T 10357.1-2013: Furniture mechanical performance test for tables, applicable for static load and stability;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-REAR-CAB-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-REAR-CAB-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-REAR-CAB-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

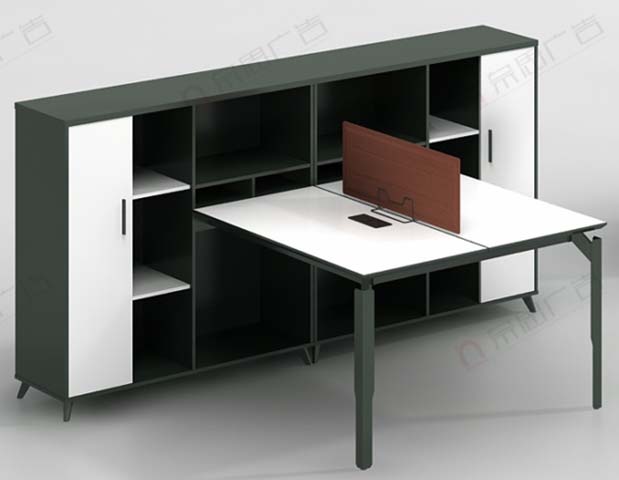

Designed for streamlined dual-user office setups, the WS-2P-REAR-CAB-2800 two-person staff workstation integrates a full-length rear storage unit to deliver a compact, organized workspace solution with a modern color-blocked aesthetic. Its overall footprint of 2800 x 1200 x 1200 mm features a central brown wood-grain melamine privacy divider running lengthwise down the center of the work surface, creating two distinct, distraction-minimized work zones positioned side-by-side. The rear storage unit rises to the full 1200mm unit height, aligned flush with the divider for a cohesive visual profile, finished in a coordinated dark grey and white palette paired with matte black recessed aluminum pull handles for a clean, contemporary look. The workstation is built for durable daily use, with a 25mm thick melamine-faced MFC particle board desktop finished with 2mm thick PVC edge banding on all exposed panel edges to resist impact damage. Support comes from angled 1.5mm thick powder-coated dark grey steel legs, while the storage cabinet carcass uses melamine-faced MDF, with 9mm back panels, 22mm thick door and drawer fronts, and 25mm thick shelves engineered to support 30kg of distributed weight per shelf. Additional material details include E0-grade panel material with formaldehyde emission at or below 0.05 mg/m³, a desktop surface rated to withstand 2000 abrasion cycles, PVC edge banding with 1.5 N/mm peel strength, and 20mm height-adjustable nylon leveling feet on the cabinet base. The desktop supports a uniform static load of 120kg, with a recommended maximum user weight of 150kg per seat, for a total unit net weight of 115kg. Functional design elements support smooth daily workflow: recessed ABS plastic cable grommets with integrated brush strips route power and data cables beneath the work surface to eliminate cord clutter, while the rear storage configuration includes two lockable end closed cabinets, eight upper open cubbies for immediate access to frequently used files and supplies, and two lower open storage bays. The adjustable cabinet feet compensate for uneven flooring to maintain a stable, level work surface. The unit uses knock-down bolt-together construction for flat-pack shipping, arriving in cartons sized to 2100×700×350mm per section, with a reference assembly time of 40 minutes per set, a packaged gross weight of 100kg per set, and total packaging volume of 0.65m³ per set. This workstation is well suited for open-plan office work areas where its integrated storage minimizes footprint in dense layouts, small team zones for admin, customer service or project teams, startup and co-working spaces seeking quick-to-assemble fitouts for flexible leased premises, dual-user home offices, and departmental clusters where multiple units can be grouped linearly to form larger multi-seat layouts. When procuring, buyers should account for on-site assembly requirements, confirm floor load capacity aligns with the unit’s weight, and note that the model is unbranded, with no additional third-party performance certifications beyond the listed material and load specifications.

Two-Person Office Staff Workstation Desk with Integrated Full-Length Rear Storage Cabinet Specifications
