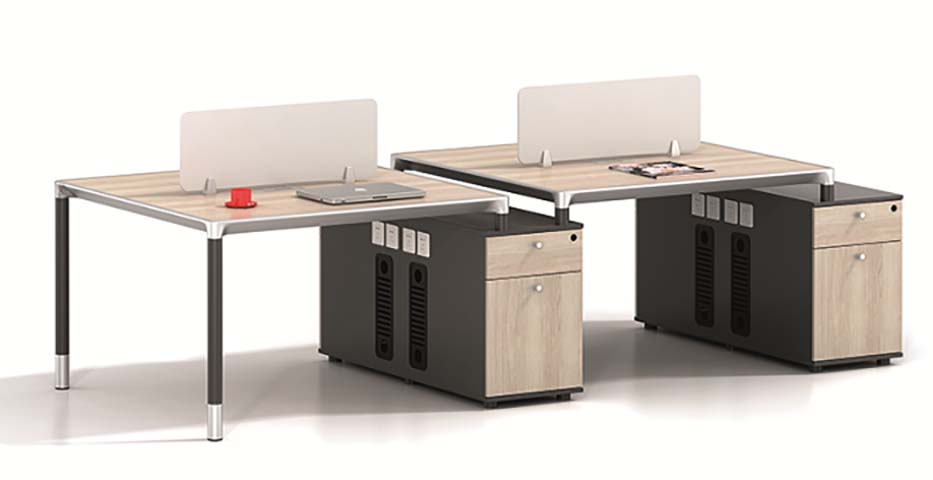

Light Oak Black 2-Person Office Workstation with Privacy Dividers and Fixed Pedestals (model OWS-2P-LOAK-BLK-2400) is listed under Open Workstation, with overall dimensions of 2400 × 600 × 750 mm and main material of Particle‑board (PB). Load capacity: 100 kg. Certifications: Modern,style,side-by-side,2-user,layout,integrated,storage,cable,management,desktop,privacy,dividers. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 2400 x 1200 x 750 mm | |
|---|---|---|
| Desktop thickness | 25 mm | |
| Single user work surface width | 1200 mm | |
| Single user work surface depth | 600 mm | |
| Desktop edge band thickness | 2 mm | |
| Under-desk knee clearance height | 630 mm | |
| Under-desk knee clearance width per user | 640 mm | |
| Knee clearance depth from desktop edge | 450 mm | |
| Privacy divider height above desktop | 350 mm | |
| Privacy divider width per user | 700 mm | |
| Fixed storage pedestal dimensions | 600 x 500 x 600 mm | |
| Steel leg section diameter | 50 mm | |
| Integrated power module port count per pedestal | 4 | |
| Cable grommet diameter | 60 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per drawer static load capacity | 100 kg | |
|---|---|---|
| Drawer slide cycle rating | 50000 cycles | |
| Net workstation weight | 140 kg | |
| Seating capacity | 2 users | |
| Desktop surface abrasion resistance | 2000 cycles | |
| Product structural warranty | 8 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop panel | 25mm E1 grade particleboard with light oak melamine laminate, 2mm PVC edge band | |
|---|---|---|
| Support frame and legs | 1.2mm wall powder-coated matte black steel, polished chrome foot trim | |
| Privacy dividers | 8mm frosted acrylic with matte white finish, silver steel mounting brackets | |
| Storage pedestal bodies | 18mm matte black melamine particleboard, adjustable leveling feet | |
| Pedestal drawer/door fronts | 18mm light oak melamine particleboard, chrome round knobs, keyed lock | |
| Integrated power modules | ABS plastic housing, 4 AC power ports per unit, 10A rated |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Privacy screening | Frosted desktop dividers block direct line of sight between adjacent users, 350mm height above work surface | |
|---|---|---|
| Integrated power access | 4-port AC outlets mounted on front pedestal face for easy user access to device charging | |
| Under-desk storage | Each fixed pedestal includes one shallow top drawer and one lower file storage compartment with key lock | |
| Cable management | Vented rear pedestal panels route cables from desktop to floor, concealed wiring path behind storage |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office staff zones | Suitable for 2 adjacent seated staff, reduces visual distraction with privacy dividers | |
|---|---|---|
| Small business and startup workspaces | Compact footprint with integrated storage eliminates need for separate filing cabinets |
EU Market Access Requirements* EN Standards
| EN 527-2:2016 | Office worktables safety and strength requirements, applicable to structural load and stability verification | |
|---|---|---|
| Desktop static load capacity | 100 kg |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard, applicable to static load, cycle testing, and stability validation for commercial use |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to panel desk structural safety and finish quality | |
|---|---|---|
| GB/T 24821-2009 | Office desk performance requirements, applicable to desktop load, stability, and drawer durability testing |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel desk structural safety and finish quality; 2. GB/T 24821-2009: Office desk performance requirements, applicable to desktop load, stability, and drawer durability testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
