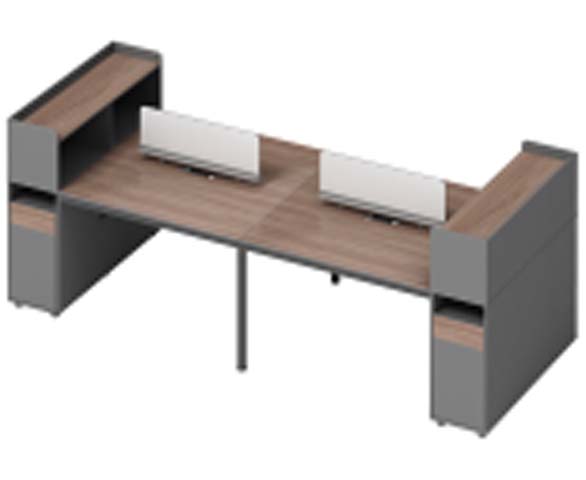

Two-Person Face-to-Face Modular Office Workstation with Side Storage Cabinets (model WS-2P-F2F-2800) is listed under Open Workstation, with overall dimensions of 2800 × 2400 × 1100 mm and main material of Particle‑board (PB). Load capacity: 120 kg per seat. Certifications: Two-person,workstation,layout,integrated,side,storage,desk,dividers. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 2800 x 2400 x 1100 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total workstation weight | 185 kg | |
|---|---|---|
| Desktop uniform static load capacity | 120 kg per seat | |
| Seating capacity | 2 people | |
| Side cabinet drawer count per unit | 2 | |
| Design service life | 8 years | |
| Surface abrasion resistance | 2000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop panels | 25mm thick melamine-faced particleboard | |
|---|---|---|
| Cabinet bodies | 18mm thick melamine-faced particleboard | |
| Structural support legs | Powder-coated round steel tube | |
| Desk dividers | Fabric-faced MDF core privacy screens | |
| Hardware components | Zinc-plated steel connectors and drawer slides | |
| Edge banding | 2mm thick PVC edge trim |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Privacy partition | Mounted central screens block direct line of sight between facing seats | |
|---|---|---|
| Cable management | Pre-drilled cable grommet at desktop center routes power and data cords | |
| Structural support | Central steel leg prevents desktop sag across the long span | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office staff areas | Two-person face-to-face layout fits standard open office modular zoning | |
|---|---|---|
| Small team work zones | Integrated storage reduces need for additional mobile pedestals |
EU Market Access Requirements* EN Standards
| Office desk stability | EN 527:2002 Office work tables - Safety requirements | |
|---|---|---|
| Surface durability | EN 14372:2004 Furniture hardware - Drawer slides durability |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
| Desktop load requirement | GB/T 3324General technical requirements for wooden furniture | |
|---|---|---|
| Panel formaldehyde emission | GB 18580Formaldehyde emission limit for wood-based panels | |
| Hardware durability | GB/T 10357.1Furniture mechanical performance test for tables |
This product must meet the following technical requirements: 1. Desktop load requirement: GB/T 3324General technical requirements for wooden furniture; 2. Panel formaldehyde emission: GB 18580Formaldehyde emission limit for wood-based panels; 3. Hardware durability: GB/T 10357.1Furniture mechanical performance test for tables; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
