PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Static work-surface load per station	80 kg
Total workstation static load	320 kg
Storage cubby shelf load	15 kg per bay
Recommended occupancy	4 users
Seating capacity density	4 seats per 11.52 square meters
Unit net weight reference	220 kg
Panel edge impact resistance target	45 N drop impact
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop construction	25 mm melamine-faced wood-composite board with woodgrain finish and sealed edge banding
Divider panel facing	Gray fabric-clad panel over a rigid board or steel-reinforced core
Central desktop screens	Low gray fabric-covered divider screens with light-colored perimeter trim
Support legs	50 mm diameter cylindrical steel legs with silver-gray powder-coated or plated finish
Storage bay structure	Panel-built fixed cubby with dark interior shelf and gray exterior cladding
Frame and joining hardware	Concealed steel cam, bracket and rail connections with leveling feet at metal legs

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Workstation division	Four independently oriented work surfaces separated by low central screens for visual privacy while maintaining shared structure
Privacy and screening	Central 350 mm desktop screens block seated sight lines, while 1100 mm end panels define each workstation boundary
Integrated storage	Two outer panel bays provide open under-desk cubbies for CPU, bag or filing storage; no drawer or lock is visible in the image
Floor-mounted support	The workstation uses fixed panel ends plus round metal legs, creating open knee bays without casters or height-adjustment mechanisms

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total packaging volume	1.10 CBM
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office use	Suits four-person clerical, administrative or booking teams needing separated screens, fixed work positions and shared structural footprint
Procurement configuration	Use in call centers, government service halls, or staff offices by arranging multiple cross modules in aisle grids with task chairs and under-desk mobile pedestals

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011 applicability	Office worktop dimensions, safety and structural requirements should be checked against this standard
EN 527-2:2002 applicability	Applicable standards and test results require confirmation
EN 1022:2018 applicability	Stability test method is relevant because the interconnected workstation must resist user loading
EN 717-1:2004 applicability	Formaldehyde release by chamber method can verify wood-composite panel emissions
EN 13986:2004+A1:2015 applicability	Use for wood-based panel characteristics and CE-relevant construction properties if exported

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021 applicability	Apply desk/products table load, cycle, stability and durability tests to each 1200 x 600 mm work surface
ANSI/BIFMA X5.9-2019 applicability	Use storage performance tests for the integrated fixed cubbies and shelf supports
ANSI/BIFMA e3-2019 applicability	Use as a furniture sustainability and material-transparency scoring reference during supplier evaluation
ANSI/BIFMA X5.1-2017 applicability	Use seating compatibility dimensions, including 750 mm work height and 690 mm knee clearance

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2024 applicability	Use for general technical requirements, dimensions and inspection of wooden office furniture components
GB/T 4893.4-2021 applicability	Use for abrasion-resistance testing of the melamine-like work surface
GB 18580-2017 applicability	Use for formaldehyde emission limits on wood-based panels in indoor furniture
GB/T 10357.5-2011 applicability	Use for furniture surface mechanical-property testing on worktops and storage panels
GB/T 3325-2017 applicability	Use for metal furniture requirements covering legs, coatings and structural hardware
Worktop wear acceptance value	450 revolutions under GB/T 4893 abrasion method

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2024 applicability: Use for general technical requirements, dimensions and inspection of wooden office furniture components;
2. GB/T 4893.4-2021 applicability: Use for abrasion-resistance testing of the melamine-like work surface;
3. GB 18580-2017 applicability: Use for formaldehyde emission limits on wood-based panels in indoor furniture;
4. GB/T 10357.5-2011 applicability: Use for furniture surface mechanical-property testing on worktops and storage panels;
5. GB/T 3325-2017 applicability: Use for metal furniture requirements covering legs, coatings and structural hardware;
6. Worktop wear acceptance value: 450 revolutions under GB/T 4893 abrasion method;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-CROSS4-1200-GRY

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-CROSS4-1200-GRY

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-CROSS4-1200-GRYOpen Export Tool

Quick Actions

Post an RFQ

Product Description

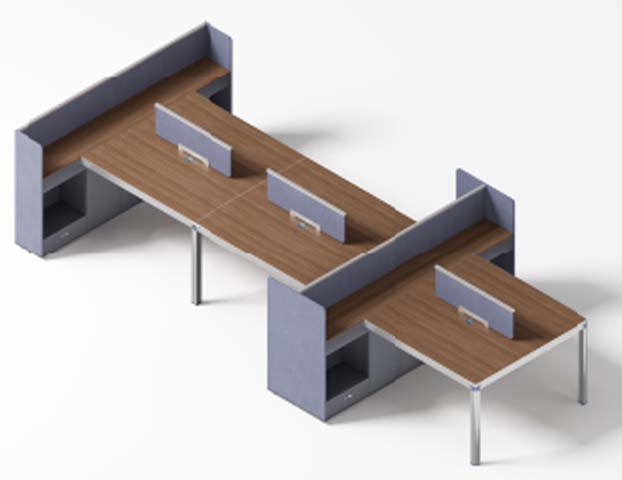

The Four-Person Cross-Shaped Panel Workstation with Integrated Storage Bays is a structured office workstation designed for four users who benefit from defined personal space within a shared footprint. Its cross-shaped layout arranges four independently oriented work surfaces around a central junction, while low gray fabric-covered divider screens provide seated visual privacy without closing the plan off from collaboration or supervision. Light-colored trim outlines the central desktop screens, and taller end panels help define each user’s boundary. The overall appearance combines gray paneling, woodgrain work surfaces, dark storage interiors, and silver-gray metal supports for a practical commercial office look. Construction uses melamine-faced wood-composite worktops with a woodgrain finish and sealed edge banding. The divider panels are faced in gray fabric over a rigid board or steel-reinforced core, while support is provided by cylindrical steel legs with a silver-gray powder-coated or plated finish. Panel-frame storage bays and fixed panel ends contribute to the workstation structure. Frame and joining hardware, including steel cams, brackets, and rails, is concealed, and leveling feet on the metal legs assist with placement on uneven floors. Each work area includes an open knee bay, with no casters or height-adjustment mechanism. Two outer panel bays offer open under-desk cubby storage suitable for CPUs, bags, or filing materials; no drawer or lock is shown. An 80 mm cable opening and a cable tray support basic desk cabling organization. The published static work-surface load is 80 kg per station, with total workstation static load of 320 kg, and each storage cubby shelf is rated for 15 kg. Finished top thickness is 50 mm, and each main seat provides 680 mm of knee clearance height and 900 mm of width. The workstation is well suited to open-plan clerical, administrative, or booking teams requiring fixed positions and separated screens. Multiple cross modules can be arranged in aisle grids for call centers, government service halls, or staff offices, paired with task chairs and under-desk mobile pedestals. Procurement planners should note that this is an unbranded model, WS-CROSS1200-GRY, supplied as a set requiring assembly. The reference assembly time is 40 minutes per set. Planning should also account for the fixed panel-and-leg support, open rather than lockable storage, four-person capacity, 220 kg net weight reference, and the need for coordinated cable management, seating, and circulation space.

Four-Person Cross-Shaped Panel Workstation with Integrated Storage Bays Specifications
