PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 1200 × 1100 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Static work surface load	80 kg per user position
Pedestal drawer load	15 kg per drawer
Mobile pedestal stability load	45 kg total cabinet contents
Supported users	4 users
Seating capacity including side desk	5 users
Assembly time	100 minutes
Indicative product net weight	220 kg for the four-person bench
Drawer slide cycle rating	50000 open-close cycles
Work surface distributed load test target	120 kg total per module
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm melamine-faced particleboard with 2 mm PVC edge banding
Pedestal cabinet	18 mm melamine-faced particleboard carcass with black bottom glides
Support structure	Powder-coated steel rectangular legs and underside rails
Divider panel	32 mm fabric-wrapped fibreboard with foam backing and aluminium or steel edge rail
Drawer hardware	Full-extension zinc-plated steel ball-bearing drawer slides
Locks and handles	Integrated recessed lock with two keys per pedestal

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Workstation layout	Double-sided four-person benching arrangement with 1400 mm wide individual work zones
Privacy screening	Low 350 mm divider separates opposing users while retaining sightlines across the office
Mobile storage	Each seated position includes a lockable two-drawer pedestal that can roll or slide beneath the top
Cable management	Central 120 mm spine provides a routed channel for power and data cables between opposing work surfaces

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Assembly time	100 minutes for two installers
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suits four staff in a 2800 x 1200 mm footprint, with low screens for privacy and pedestals for personal storage.
Project procurement layout	Can be paired with the visible single desk to create a five-person planning, administration, or accounting zone.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-BN4-2800-1200-750

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-BN4-2800-1200-750

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-BN4-2800-1200-750Open Export Tool

Quick Actions

Post an RFQ

Product Description

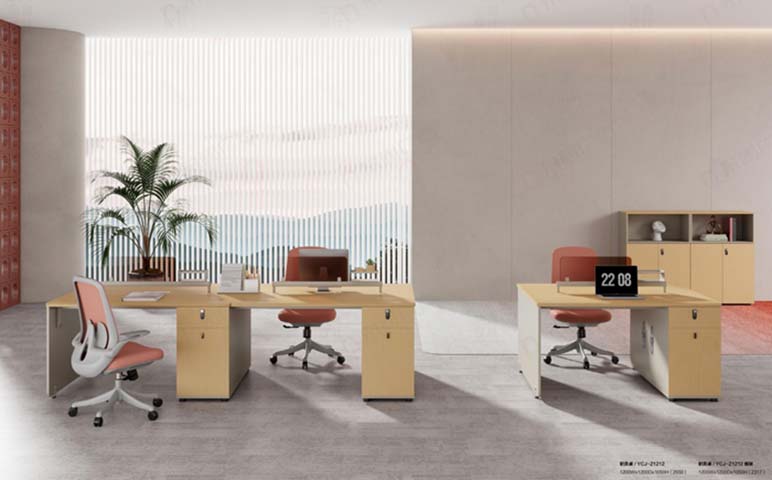

The Four-Person Bench Workstation with Integrated Mobile Pedestals and Divider Panels is an unbranded office benching solution for teams requiring coordinated work surfaces, personal storage, and a degree of visual separation within an open-plan setting. Its double-sided layout places four users across opposing work zones, with individual work areas measuring 1400 mm wide. A low, 350 mm divider runs between the two sides, giving users privacy screening while preserving sightlines across the room. When planned with the visible single desk, the arrangement can support a five-person planning, administration, or accounting zone. The workstation combines melamine-faced particleboard surfaces with a powder-coated steel support structure. The work surface is 25 mm thick and finished with 2 mm PVC edge banding, while the stated finished top thickness is 50 mm. Rectangular steel legs and underside rails form the bench frame, with an 80 mm main support section and 2 mm metal wall. Each main seat offers effective knee clearance of 680 mm in height and 900 mm in width. The divider panels use 32 mm fabric-wrapped fibreboard with foam backing and an aluminium or steel edge rail, introducing a softer texture against the board and metal construction. Each seated position is supplied with a lockable two-drawer mobile pedestal built from an 18 mm melamine-faced particleboard carcass with black bottom glides. The pedestals can roll or slide beneath the worktop, keeping bags, stationery, and personal work materials close without occupying circulation space. Full-extension zinc-plated steel ball-bearing slides support drawer access, and each pedestal has an integrated recessed lock supplied with two keys. Power and data cabling is managed through a central 120 mm spine that creates a routed channel between opposing work surfaces. The cable openings are 80 mm in diameter, and the cable tray provides 120 mm of depth. The static work surface load is rated at 80 kg per user position, each drawer at 15 kg, and mobile pedestal stability at 45 kg of total cabinet contents. These figures should be checked against intended equipment placement during specification. The four-person bench is suited to open-plan offices, administrative clusters, finance teams, and project-based residential workrooms that operate in a commercial style. Its footprint is listed as 2800 x 1200 mm, and the indicative net weight for the four-person bench is 220 kg. Procurement teams should plan for two-installer assembly, access for carton delivery, and coordination with the separate single desk if a five-person layout is required. The product reference indicates one set across two cartons, with separate packing for the return or pedestal; buyers should confirm the final packing configuration, lock keying, fabric appearance, and edge-rail material before purchase.

Four-Person Bench Workstation with Integrated Mobile Pedestals and Divider Panels Specifications
