PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1400 × 1200 × 750 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Static work-surface load	100 kg
Pedestal drawer load	25 kg
Lower cabinet shelf load	30 kg
Open CPU bay load	20 kg
Suggested user weight at desk	120 kg
Net weight	52 kg
Durability target for moving parts	50,000 drawer cycles
Seating capacity	1 person
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop panel	25 mm wood-grain melamine-faced particleboard with sealed exposed edge
Pedestal panels	18 mm melamine-faced panel in wood-grain and light grey fronts
Support legs	Powder-coated silver rectangular steel A-frame legs with floor glides
Privacy divider	Rounded-edge upholstered or laminate panel with silver-grey finish
Power module	White plastic desktop clamp unit with two visible electrical faceplates
Drawer and door hardware	Black key lock, metal hinges and side-mounted drawer slides with zinc or black finish

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Storage and locking	One upper lockable drawer and one lower right-hand cabinet door secure documents and personal items with a single key lock.
Computer storage	Central open bay accepts a vertical mini-tower CPU, with open front and rear clearance for power and data cabling.
Power access	Desktop-mounted dual-faceplate socket module provides power access near the rear work zone; local plug standard must be specified at order.
Privacy separation	Rear freestanding divider blocks direct sightlines and can define one seat in a benching or open-plan layout.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	1460 x 700 x 160 mm per main carton, 1160 x 620 x 180 mm per pedestal carton, 1030 x 390 x 130 mm per hardware carton
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office workstation	Suitable for one employee in open offices, with a rear privacy screen and desktop power for laptop or monitor work.
Managerial or administrative seat	Right pedestal supports filing and personal storage, while the central CPU bay suits fixed desktop-computer deployments.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture safety	EN 527:2011 safety, strength and durability requirements for office tables
Office furniture dimensions	EN 527:2003 safety, strength and durability test methods for office tables
Formaldehyde panel emission	EN 13986:2004 wood-based panels for construction with E1 classification

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Desk safety and structural acceptance	GB/T 3324 general technical requirements for wooden furniture
Formaldehyde emission	GB 18580formaldehyde emission for interior decoration materials
Furniture mechanical tests	GB/T 10357.1through GB/T 10357.7table strength, stability and durability methods

Standardized tender description text

This product must meet the following technical requirements:
1. Desk safety and structural acceptance: GB/T 3324 general technical requirements for wooden furniture;
2. Formaldehyde emission: GB 18580formaldehyde emission for interior decoration materials;
3. Furniture mechanical tests: GB/T 10357.1through GB/T 10357.7table strength, stability and durability methods;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-1400X1200-RSP

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-1400X1200-RSP

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-1400X1200-RSPOpen Export Tool

Quick Actions

Post an RFQ

Product Description

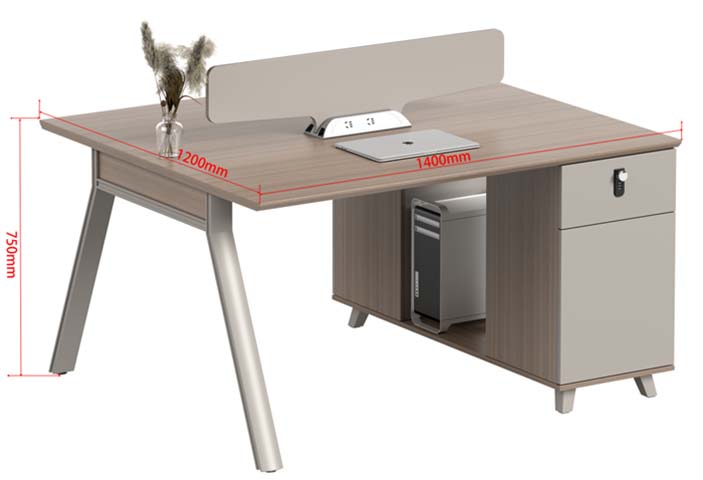

The Panel-Finish Workstation Desk with Right Storage Pedestal and Privacy Screen is a single-seat office workstation designed for open-plan work areas that require defined personal space, accessible power, and enclosed storage. Its visual character combines wood-grain work surfaces with light-grey pedestal fronts, silver rectangular steel A-frame legs, and a silver-grey rear divider. The rounded privacy panel creates a distinct seat boundary while maintaining the open feel appropriate to benching layouts. The desk is built around a 50 mm finished top, using a 25 mm wood-grain melamine-faced particleboard desktop with sealed exposed edges. Pedestal panels use 18 mm melamine-faced board in coordinating wood-grain and light-grey finishes. The support structure consists of powder-coated silver rectangular steel A-frame legs with floor glides; the main leg section is 80 mm with a 2 mm metal wall. Hardware includes a black key lock, metal hinges, and side-mounted drawer slides with a zinc or black finish. The privacy divider is available as an upholstered fabric panel or a laminate panel. Layout and function are organized around the user. The right-hand pedestal provides one upper lockable drawer and one lower cabinet door secured by a single key lock, supporting document storage and personal belongings. A central open bay accommodates a vertical mini-tower CPU, with open front and rear clearance for power and data cabling. Cable management is supported by an 80 mm cable opening and a cable tray with 120 mm depth. Near the rear work zone, a white plastic clamp-on power module presents two visible electrical faceplates; the local plug standard should be specified when ordering. The freestanding rear divider blocks direct sightlines and helps define one workstation in a shared office. This arrangement is well suited to an employee seat in an open office, particularly for laptop or monitor-based work, and also fits managerial or administrative positions that need filing space and fixed desktop-computer storage. It can be considered for residential office use where a structured, storage-equipped workstation is preferred. Rated capacities include 100 kg on the work surface, 25 kg for a pedestal drawer, 30 kg for the lower cabinet shelf, and 20 kg for the CPU bay; the suggested user weight at the desk is 120 kg. The moving parts have a durability target of 50,000 drawer cycles. Procurement teams should confirm the required power faceplate standard, privacy divider finish, and delivery packaging details, as reference packing information varies across the supplied logistics records. On-site assembly should be planned for each individual workstation.

Panel-Finish Workstation Desk with Right Storage Pedestal and Privacy Screen Specifications
