PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total worktop distributed load	200 kg
Single-position worktop load	80 kg
Pedestal drawer load	15 kg per drawer
Mobile pedestal moving load	45 kg fully loaded
Static seating capacity	4 users
Chair user weight capacity	120 kg per chair
Steel frame load durability	100,000 cycles of normal seated bench use
Drawer slide durability	50,000 opening cycles
Workstation net weight	148 kg
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm melamine-faced wood-composite board with sealed exposed edge
Support frame	White powder-coated square steel legs and connecting rails
Divider screens	Light gray fabric-wrapped panel over composite board core
Mobile pedestals	White steel side panels with oak-tone drawer fronts and black casters
Drawer hardware	Side-mounted telescopic slides with integrated lock cylinder
Floor contact parts	Black polymer glides on frame legs and black swivel casters on pedestals

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Four-person work zoning	Cross-mounted center screens separate four 1200 x 600 mm seated positions while sharing one bench frame
Mobile file storage	Each position is paired with a three-drawer rolling pedestal that retracts under the worktop
Privacy and visual screening	Low upholstered dividers block direct sightlines across opposite seats while preserving ceiling visibility
Cable management	Horizontal rails and rear screen zones provide routing paths for laptop and monitor cables

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suitable for four staff in call centers, administration teams, or shared processing areas because each seat has independent storage and a low visual divider.
Project procurement layout	Can be repeated in rows with a 900 mm aisle for dense but accessible four-person neighborhoods in renovated or leased office floors.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS4-2400X1200-MP

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS4-2400X1200-MP

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS4-2400X1200-MPOpen Export Tool

Quick Actions

Post an RFQ

Product Description

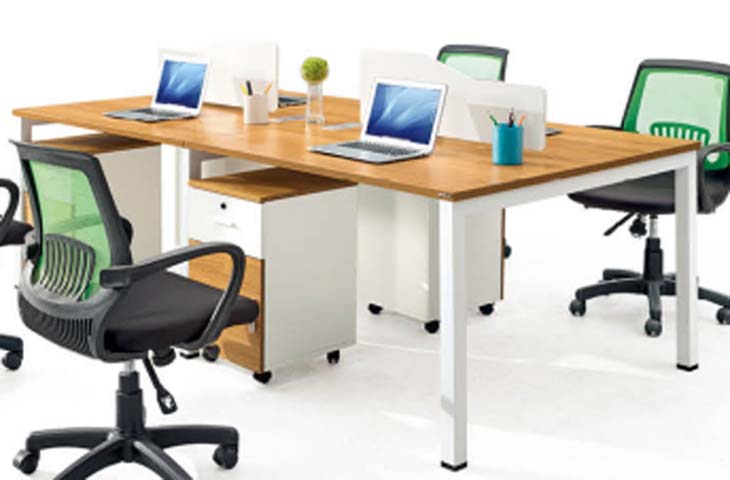

The Four-Person Face-to-Face Modular Office Workstation with Screens and Mobile Pedestals is an unbranded office bench system, model WS2400X1200-MP, designed for four users on a shared frame. Its face-to-face layout uses cross-mounted center screens to define four individual seated positions, each with a 1200 x 600 mm work zone. The low, light gray fabric-covered dividers separate opposite seats and reduce direct sightlines without closing off ceiling visibility, giving the workstation a balanced balance of privacy and openness. Each work surface is made from 25 mm melamine-faced wood-composite board with a sealed exposed edge, producing a finished top thickness of 50 mm. The support structure consists of white powder-coated square steel legs and connecting rails, with an 80 mm main support section and 2 mm metal wall. Black polymer glides protect the floor contact points. The divider panels use a composite board core wrapped in light gray fabric. Each position is paired with a three-drawer mobile pedestal featuring white steel side panels, oak-tone drawer fronts, black swivel casters, and side-mounted telescopic slides with an integrated lock cylinder. Practical support is built into the compact plan. Users receive 680 mm high and 900 mm wide knee clearance at each main seat, while the rolling pedestal retracts beneath the worktop to provide personal file storage without consuming aisle space. The worktop supports a total distributed load of 200 kg, with a single-position capacity of 80 kg. Each pedestal drawer is rated for 15 kg, and a fully loaded mobile pedestal is rated for 45 kg while moving. The frame is rated for 100,000 cycles of normal seated bench use, and compatible task chair users are supported up to 120 kg per chair. Cable organization is handled through horizontal rails and rear screen zones, creating routing paths for laptop and monitor leads. An 80 mm diameter cable opening and a cable tray with 120 mm depth support desk-based technology. This configuration is well suited to open-plan call centers, administration teams, shared processing floors, and other four-person group work areas. For project planning, identical workstations can be repeated in rows with a 900 mm aisle, producing dense but accessible neighborhoods in renovated or leased offices. Procurement teams should note the stated assembly reference of 40 minutes per set and plan storage, receiving, and installation around the packaged consignment. The package information lists 2 cartons per set, with the main top packaged at 2500 x 1050 x 350 mm and the return or pedestal packed separately; the reference packaged gross weight is 180 kg per set, the reference packaging volume is 1 m³ per set, and the logistics record also notes 4 cartons.

Four-Person Face-to-Face Modular Office Workstation with Screens and Mobile Pedestals Specifications
