PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2830 × 2400 × 1100 mm | |
|---|---|---|
| Work surface height | 750 mm | |
| Individual station width | 1200 mm | |
| Individual station depth | 600 mm | |
| Desktop thickness | 25 mm | |
| Edge banding thickness | 2 mm | |
| Privacy screen height above desktop | 350 mm | |
| Knee clearance height under desk | 620 mm | |
| Under-desk pedestal width per station | 400 mm | |
| Pedestal drawer height | 120 mm | |
| Cable grommet diameter | 60 mm | |
| A-frame leg section size | 60 x 30 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Static uniform load per desktop station | 100 kg | |
|---|---|---|
| Drawer static load capacity | 25 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Hinge cycle rating for cabinet doors | 80000 cycles | |
| Laminate surface abrasion resistance | 2000 cycles | |
| Recommended user count | 4 people | |
| Product net weight | 150 kg | |
| Frame warranty period | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | E1 grade melamine-faced particle board, light grey wood grain finish | |
|---|---|---|
| Edge banding | 2mm thick PVC edge sealing, impact resistant | |
| Support frame and legs | White powder-coated carbon steel, splayed A-frame design | |
| Privacy dividers | Sage green fabric-wrapped fiberboard, mounted on aluminum support rails | |
| Storage cabinet carcass | E1 grade melamine particle board, off-white and light woodgrain finish | |
| Drawer fronts | Melamine-faced MDF with integrated key locks, off-white finish | |
| Hardware components | Zinc-alloy drawer handles, steel ball-bearing slides, steel hinges | |
| Integrated power module | Fire-retardant ABS housing with AC power sockets, mounted on dividers | |
| Leveling feet | Nylon adjustable feet on cabinet bases, height-adjustable for uneven floors | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

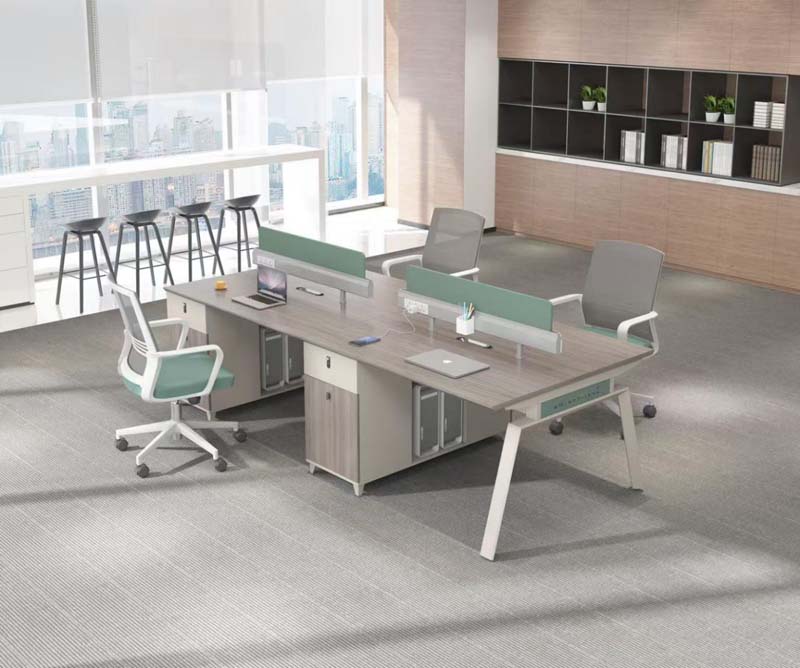

| Four individual work zones | Face-to-face layout separated by central privacy screens for focused work | |
|---|---|---|
| Per-user lockable storage | One upper drawer and one lower cabinet door per station for personal item security | |
| Integrated cable management | Central cable channel under dividers with desktop grommets for power and data routing | |
| Divider-mounted power access | AC power sockets integrated into central divider rails for convenient device charging | |
| Modular construction | Knock-down design allows reconfiguration or replacement of individual components | |
| Adjustable leveling | Nylon feet on cabinet bases adjust to compensate for uneven office flooring | |
| Privacy screening | Low fabric dividers reduce visual distraction between opposite-facing users | |
| Open knee clearance | A-frame splayed legs eliminate crossbars under knee space for unobstructed leg movement | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office areas | Suited for corporate staff zones, supporting 4 employees with dedicated personal space | |
|---|---|---|
| Startup and co-working spaces | Modular design supports flexible team expansion and reconfiguration as needed | |
| Administrative departments | Integrated per-user storage improves organization for daily paperwork and supplies | |
| Call center and back-office teams | Low dividers balance privacy and easy supervisor access for team support | |
| Project team zones | Face-to-face layout supports quick communication between adjacent team members | |
| Small business office fit-outs | All-in-one integrated design reduces need for separate desk and storage purchases |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and strength requirements, applicable to structural performance | |
|---|---|---|
| EN 12521:2015 | Furniture strength durability and safety for non-domestic seating-adjacent tables | |
| EN 13722:2004 | Office furniture storage units performance requirements for pedestal components |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for structural performance and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard for drawer and cabinet performance validation |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk panel and storage components | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, applicable to MDF/particle board components | |
| GB/T 4897.3-2003 | Particle board for furniture use, applicable to desktop and cabinet panel substrates |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk panel and storage components; 2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, applicable to MDF/particle board components; 3. GB/T 4897.3-2003: Particle board for furniture use, applicable to desktop and cabinet panel substrates; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
