PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 1200 × 1100 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per-workstation distributed top load	80 kg
Pedestal drawer static load	25 kg per drawer
Pedestal top surface load	40 kg
Number of work seats	2 seats
complete workstation net weight	118 kg
Caster rolling capacity per pedestal	50 kg total
Drawer slide cycle rating for procurement	60000 cycles
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surfaces	25 mm engineered-wood board with white melamine facing and sealed matching edge band
Divider screen	Grey fabric-wrapped acoustical panel over a composite board core with a white horizontal rail
Support legs and rails	White powder-coated rectangular steel tube with black floor-contact glides
Mobile pedestals	White steel cabinet body with two drawer fronts, integrated lock and black base feet
Drawer hardware	Side-mounted full-extension ball-bearing drawer slides with a keyed central lock
Visitor seating upholstery	Black woven office fabric over shaped foam cushions and backs

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Two-person work layout	Two facing-away individual seats are separated by central low screens, each with a 1400 mm work surface and dedicated pedestal
Privacy and visual division	A 350 mm-high upholstered divider above the desktop reduces cross-desk sightlines without blocking room light
Locked personal storage	Each seat has one key-lockable mobile pedestal with one shallow utility drawer and one tall filing drawer
Cable and equipment organization	Desktop cables route toward the rear screen rail and under-top beam, with a 60 mm grommet-capable cutout at each position

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Largest carton dimensions	1450 x 680 x 180 mm
Total packed volume	0.68 m3
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office allocation	Suits two staff positions in open offices or team zones because each user receives a dedicated surface, screen and lockable pedestal
Procurement configuration	Recommended as a paired workstation for administrative, finance and back-office teams requiring paper filing and personal locked storage

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office work surface safety and strength	EN 527and EN 527
Storage cabinet safety and strength	EN 14073and EN 14073
Office seating structural safety	EN 1335
Upholstered fabric flame behavior	EN 1021and EN 1021

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Desk performance standard	ANSI/BIFMA X5.5
Mobile storage performance	ANSI/BIFMA X5.9
Guest chair performance	ANSI/BIFMA X5.4

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Worksurface physical durability	GB/T 4893.4 and GB/T 4893.9
Formaldehyde emission	GB/T 39600
Steel furniture structural verification	GB/T 3324
Office furniture safety and stability	GB/T 3325
Panel surface impact and abrasion acceptance	Class for horizontal work surfaces under GB/T 4893.4 and GB/T 4893.9

Standardized tender description text

This product must meet the following technical requirements:
1. Worksurface physical durability: GB/T 4893.4 and GB/T 4893.9;
2. Formaldehyde emission: GB/T 39600;
3. Steel furniture structural verification: GB/T 3324;
4. Office furniture safety and stability: GB/T 3325;
5. Panel surface impact and abrasion acceptance: Class for horizontal work surfaces under GB/T 4893.4 and GB/T 4893.9;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS2-PED-SCREEN-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS2-PED-SCREEN-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS2-PED-SCREEN-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

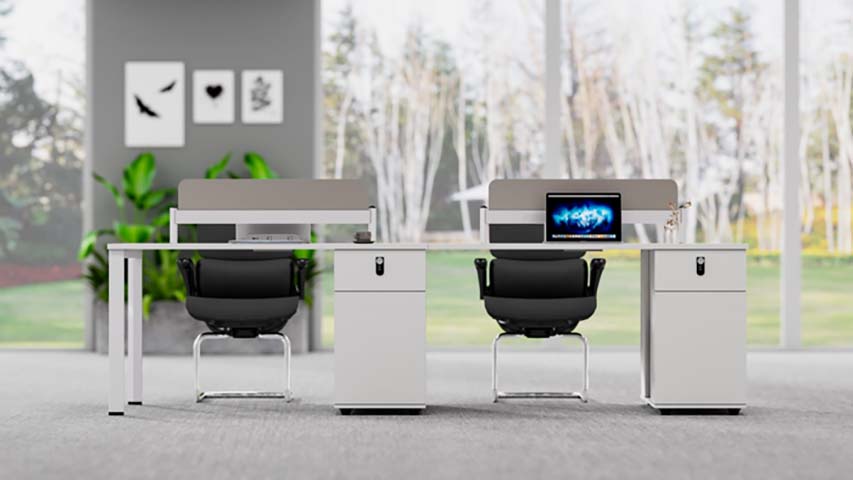

The Two-Person Panel-Based Office Workstation, model WS2-PED-SCREEN-280, presents a clean two-seat layout in white and grey. Two facing-away work positions are organized around central low divider screens, giving each user a distinct work surface, personal storage and visual separation. The 350 mm upholstered divider rises above the desktop to reduce cross-desk sightlines while preserving an open feel and allowing light to pass across the workspace. A white horizontal rail complements the grey fabric-wrapped acoustical panels, and the white surfaces, steel supports and black visitor chairs create a coordinated commercial appearance. Each position includes a 1400 mm work surface and a dedicated mobile pedestal. Work surfaces use 25 mm engineered-wood board with white melamine facing and sealed matching edge banding, producing a practical, uniform finish. The finished top thickness is 50 mm, and support is provided by white powder-coated rectangular steel tube with black floor-contact glides. The main support section is 80 mm with 2 mm metal wall thickness, while effective knee clearance is 680 mm high and 900 mm wide for each main seat. Storage is supplied by white steel mobile pedestals with two drawer fronts, an integrated keyed lock and black base feet. Each pedestal has one shallow utility drawer and one tall filing drawer, using side-mounted full-extension ball-bearing slides. The pedestal cabinet is rated for a 50 kg total rolling capacity, its top surface supports 40 kg, and each drawer has a static load rating of 25 kg. The drawer slide cycle rating is 60000 cycles, a useful reference for specification and lifecycle comparison. The distributed top load is 80 kg per workstation. Cable management is integrated into the layout. Cables route toward the rear screen rail and under-top beam, with an 80 mm cable opening and a cable tray depth of 120 mm. Each position also accommodates a 60 mm grommet-capable cutout, helping keep power and data connections orderly for computers, chargers and desktop equipment. The complete workstation has a net weight of 118 kg. The accompanying visitor seating uses black woven office fabric over shaped foam cushions and backs, supporting short meetings or guest seating beside the workstation. This configuration is well suited to open-plan offices, team zones and other shared work areas where two staff members need dedicated surfaces and private storage. It is particularly appropriate for administrative, finance and back-office teams that handle paper filing and require lockable personal storage. Procurement planning should account for delivery packaging and installation logistics. Reference records note a packaged gross weight of 180 kg per set in four cartons, a total packed volume of 0.68 cubic metres, and a reference assembly time of 40 minutes per set. The largest carton measures 1450 x 680 x 180 mm, while the main top is packed separately at 2500 x 1050 x 350 mm, with the return and pedestal also packed separately. Buyers should confirm access routes, lift capacity, storage during staging, assembly responsibility and whether chair quantities match the intended seating plan.

Two-Person Panel-Based Office Workstation with Mobile Pedestals Specifications
