PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 1400 × 1100 mm
Overall workstation dimensions	2800 x 1400 x 1100 mm
Seated worksurface height	750 mm
Central privacy divider height	350 mm
Rear modesty panel height	750 mm
Side storage cabinet width	400 mm
Side storage cabinet height	1100 mm
Cable grommet diameter	80 mm
Desk top thickness	25 mm
Edge banding thickness	2 mm
Metal leg section thickness	1.5 mm
Knee clearance height under worksurface	620 mm
Open storage cubby internal height	250 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Worksurface static load capacity	150 kg
Drawer slide cycle rating	50000 cycles
Recommended user capacity	2 users
Surface abrasion resistance	2000 cycles
Net workstation weight	154 kg
Product warranty period	5 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worksurface panel	25mm E1-grade melamine-faced particleboard
Leg frame	1.5mm thick powder-coated black steel
Central privacy divider	Fabric-upholstered tackable fiberboard
Storage cabinet body	18mm black melamine-faced particleboard
Drawer fronts	18mm light wood grain melamine particleboard
Drawer hardware	Cold-rolled steel ball-bearing slides with keyed locks
Rear modesty panel	18mm black melamine particleboard
Cabinet feet	Powder-coated black steel tapered feet
Cable grommet	Black ABS plastic recessed port
Edge banding	2mm thick PVC matching worktop finish
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Dual-seat work surface	Two adjacent 1400mm wide work positions separated by central divider
Lockable drawer storage	Two keyed drawers for secure document storage in right-side cabinet
Open storage cubbies	Two open shelves between lockable drawers for frequently accessed items
Cable management system	Recessed desktop grommet with under-desk cable routing
Visual privacy separation	Central fabric divider blocks direct line of sight between users
Rear modesty protection	Full-height rear panel conceals under-desk cables and leg area
Stable angled leg support	Splayed steel legs distribute weight evenly across four floor contact points
Integrated side cabinet support	Attached storage cabinet acts as secondary structural support for worktop
Lockable drawer internal height	150 mm
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office staff areas	Two-person unit for dense team seating with privacy separation
Small business admin offices	Integrated storage reduces need for separate filing cabinets
Call center and customer service zones	Low divider supports communication while providing individual work space
Startup co-working spaces	Configurable dual work position for flexible team seating
Shared administrative workstations	Lockable drawers secure personal and team documents
Side-by-side team project spaces	L-shaped layout provides extra work surface for documents and devices

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables - Safety requirements
EN 527-2:2016	Office work tables - Mechanical safety requirements
EN 1335-1:2020	Office furniture - Office work chairs

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk Products - Safety and performance
ANSI/BIFMA X5.9-2019	Storage Units - Safety and performance

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture
GB/T 3327-2019	Office desks and tables
GB 18580-2017	Formaldehyde emission limits for wood-based panels
GB/T 4897.3-2003	Particleboard for furniture use

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture;
2. GB/T 3327-2019: Office desks and tables;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels;
4. GB/T 4897.3-2003: Particleboard for furniture use;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-L2-ST-BL

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-L2-ST-BL

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-L2-ST-BLOpen Export Tool

Quick Actions

Post an RFQ

Product Description

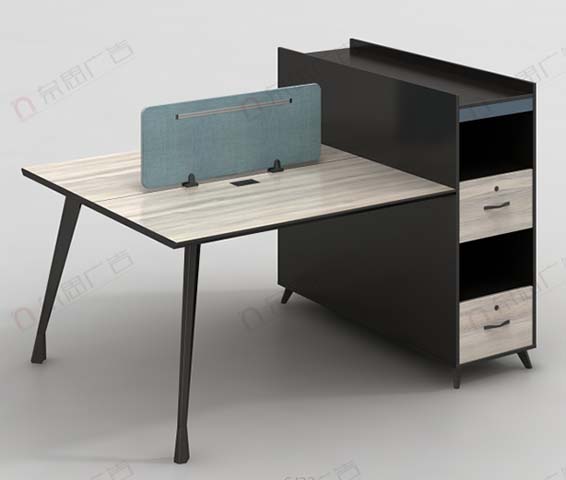

This two-person L-shaped office workstation, model WS-L2-ST-BL, delivers a streamlined, modern workspace solution built to support collaborative yet focused work for two users. Its L-shaped configuration arranges two adjacent work positions separated by a low, blue fabric-upholstered central privacy divider, balancing open visual flow between teammates with clear personal workspace boundaries. A full-height rear modesty panel runs along the back edge of the unit, concealing under-desk cabling and the lower leg area for a clean, uncluttered sightline from surrounding space, while a tall integrated side storage cabinet anchors one end of the layout to keep essential supplies within easy reach without requiring additional freestanding furniture. The workstation is constructed for long-term daily use, with a 25mm thick E1-grade melamine-faced particleboard worksurface mounted to a splayed, powder-coated black steel leg frame that distributes weight evenly across floor contact points for stable support. The central privacy divider uses a tackable fiberboard core wrapped in fabric, allowing users to pin quick notes or reference materials as needed. The side storage cabinet combines a black melamine body with light wood grain melamine drawer fronts, set on tapered powder-coated black steel feet for a refined, consistent finish. Lockable drawers run on cold-rolled steel ball-bearing slides, and the unit includes recessed black ABS cable grommets paired with under-desk routing to keep power and data cords organized. The worksurface supports static loads of 150kg when uniformly distributed, and the product is backed by a 5-year warranty. Functional design elements support flexible daily use: the lockable drawers provide secure storage for personal or confidential documents, while open cubbies between drawers hold frequently accessed items for quick retrieval. The low central divider blocks direct line of sight between seats to reduce distraction, but remains short enough to support quick, natural communication between adjacent users. This workstation fits a wide range of commercial spaces, including open-plan office staff zones, small business admin offices, call center floors, startup co-working areas, shared administrative hubs, and side-by-side team project spaces, where its integrated storage eliminates the need for separate filing cabinets to maximize usable floor space. Procurement teams should note the unit ships across multiple cartons, with a reference assembly time of 40 minutes per set, and plan for appropriate handling support given the packaged gross weight. The unbranded design pairs easily with existing modern office furniture palettes, and its fixed L-shaped layout works best in floor plans configured to accommodate corner-aligned dual seating without obstructing walkways.

Two-Person L-Shaped Office Workstation with Side Storage Cabinet and Blue Privacy Divider Specifications
