PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3200 × 1600 × 1350 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended users	2 persons
Worktop distributed static load	120 kg per user zone
Upper shelf load per level	20 kg
Lower cabinet shelf load	25 kg per shelf
Drawer load per drawer	15 kg
Product net weight	165 kg
Floor loading	32.2 kg/m2
Chair-side clearance allowance	800 mm outward from desk edge
Worktop point load	30 kg on a 200 x 200 mm area
Drawer slide load	15 kg per drawer with 50000 open-close cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop	25 mm melamine-faced wood-composite board with rounded light-oak surface and grey edge trim
Storage cabinet panels	18 mm melamine-faced composite panels in light oak and matte grey
Rear carcass and top rails	Matte grey composite or metal-clad panels with continuous edge banding
Privacy divider	Frosted translucent acrylic or textured glass-like panel with grey vertical supports
Front support legs	Grey powder-coated cylindrical metal legs splayed outward
Drawer and door hardware	Cam-lock cylinders, concealed hinges or drawer runners, and black escutcheons

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Workstation layout	Two side-by-side seated work positions separated by a low central divider, each with access to power and storage
Privacy screening	Frosted divider reduces visual distraction while maintaining airflow and overhead visibility
Cable management	A central grey service spine routes laptop and power cables from worktop to two vertical socket modules
Integrated storage	Rear credenza combines open shelves, sliding-door compartments, hinged lower doors and two lockable drawers for shared and personal storage

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan shared office	Place in 3600 x 2400 mm floor zones for two staff who need side-by-side work surfaces and shared filing
Administrative workstation	Use for HR, finance or administration staff requiring locked drawers, lower-door storage and laptop power at 750 mm height

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office desk safety, strength and durability requirements applicable to the work surfaces and support structure
EN 527-2:2002	Office desk dimensional safety requirements applicable to 750 mm work height and seated clearances
EN 15372:2007+A1:2008	Storage furniture strength, durability and stability requirements applicable to the credenza
EN 62368-1:2014+A11:2017	Audio/video and ICT equipment safety standard applicable if USB or socket modules are supplied

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2024	General technical requirements for wooden furniture, applicable to panel flatness, edge banding and cabinet assembly
GB/T 3325-2017	Metal furniture technical requirements applicable to the metal legs and structural hardware
GB/T 10357.5-2011	Furniture surface physicochemical test for abrasion resistance, applicable to melamine worktops and cabinet faces
GB/T 22792-2022	General requirements for office workstations covering stability, safety and structural performance
GB 200.2.7-2022	Electrical accessories in furniture should be assessed if the supplied power modules enter the Chinese market
GB/T 10357.1-2013	Table mechanical property test applicable to desktop static load, leg strength and stability acceptance

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2024: General technical requirements for wooden furniture, applicable to panel flatness, edge banding and cabinet assembly;
2. GB/T 3325-2017: Metal furniture technical requirements applicable to the metal legs and structural hardware;
3. GB/T 10357.5-2011: Furniture surface physicochemical test for abrasion resistance, applicable to melamine worktops and cabinet faces;
4. GB/T 22792-2022: General requirements for office workstations covering stability, safety and structural performance;
5. GB 200.2.7-2022: Electrical accessories in furniture should be assessed if the supplied power modules enter the Chinese market;
6. GB/T 10357.1-2013: Table mechanical property test applicable to desktop static load, leg strength and stability acceptance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-CREDENZA-3200

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-CREDENZA-3200

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-CREDENZA-3200Open Export Tool

Quick Actions

Post an RFQ

Product Description

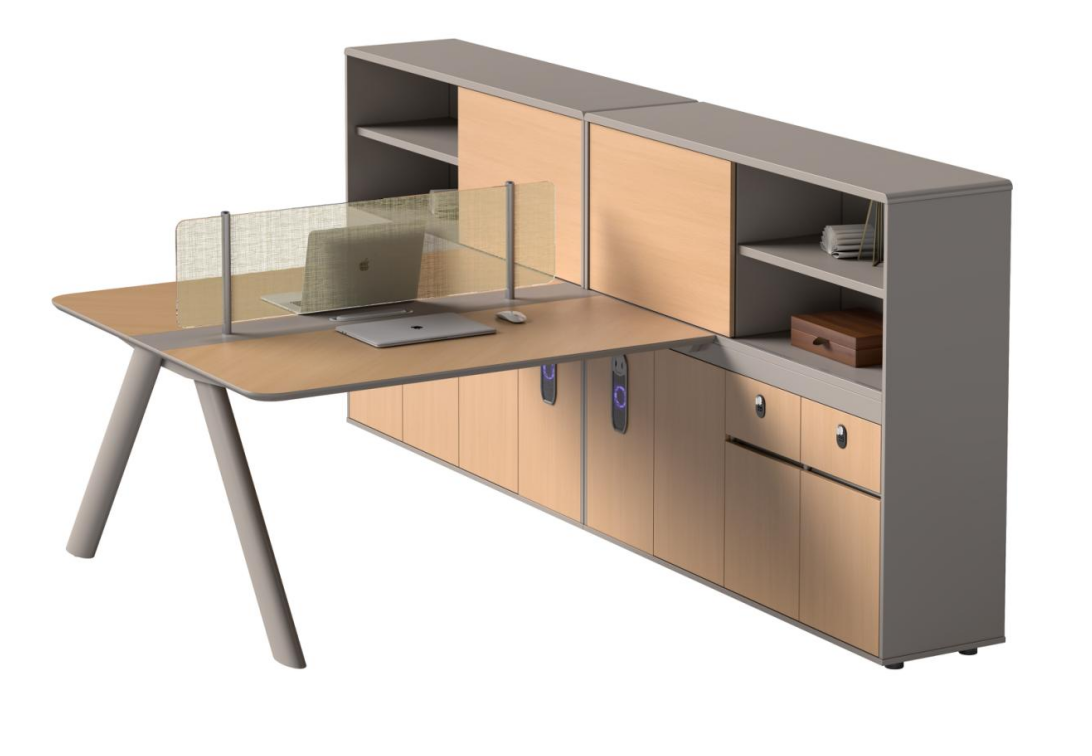

The Two-Person Workstation with Integrated Storage Credenza and Frosted Divider is an unbranded office workstation designed for shared seated work in organized commercial environments. Its model reference is WS-2P-CREDENZA-3200, and its layout places two users side by side, separated by a low central frosted divider. The work surface uses a light-oak melamine finish with grey edge trim, while the grey frame, service spine, support structure and cabinet accents create a balanced, contemporary visual appearance suitable for professional interiors. The workstation combines individual work zones with a rear storage credenza. Open shelves, sliding-door compartments, hinged lower doors and two lockable drawers provide a mix of shared filing, team storage and personal security. The frosted translucent acrylic or textured glass-like divider is supported by grey vertical members; it reduces visual distraction between users without blocking overhead visibility or airflow. Outward-splayed cylindrical front legs in grey powder-coated metal contribute to the open, structured form, while the central service spine organizes cables and supports access to power at both positions. Construction uses melamine-faced wood-composite panels, grey painted or powder-coated structural elements, metal support legs, integrated power modules and the specified privacy divider. The worktop is made from 25 mm melamine-faced wood-composite board, with a finished top thickness of 50 mm. Storage cabinet panels are 18 mm composite board in light oak and matte grey. Rear carcass and top rails use matte grey composite or metal-clad panels with continuous edge banding. Hardware includes cam-lock cylinders, concealed hinges or drawer runners, and black escutcheons. The main support leg section is 80 mm with a 2 mm metal wall. Each main seating position offers 680 mm high and 900 mm wide knee clearance. Practical functions are integrated directly into the furniture. An 80 mm cable opening and 120 mm deep cable tray support the central routing of laptop and power cables from the worktop to two vertical socket modules. The worktop is rated for 120 kg distributed static load per user zone. Upper shelves support 20 kg per level, lower cabinet shelves support 25 kg per shelf, and each drawer supports 15 kg. The product net weight is 165 kg, with floor loading of 32.2 kg/m2. This configuration is well suited to open-plan shared offices, administrative teams, HR, finance and general administration roles where two staff require adjacent work surfaces, locked storage and accessible laptop power. Procurement teams should plan for a 3600 x 2400 mm floor zone and a 750 mm laptop power height in the administrative use case. The reference packaging information indicates two cartons per set in one field, with separate logistics details listing four cartons and 180 kg packaged gross weight; purchasers should confirm packing count and delivery configuration before ordering. Reference assembly time is 40 minutes per set, and packaging volume is 1 m3 per set.

Two-Person Workstation with Integrated Storage Credenza and Frosted Divider Specifications
