Automatic mm / inch conversion · Core engineering specifications
| Overall workstation dimensions | 1600 x 1400 x 750 mm | |
|---|---|---|
| Per-user work surface size | 1200 x 700 mm | |
| Central privacy divider height above worktop | 350 mm | |
| Seated knee clearance height under worktop | 673 mm | |
| Integrated side pedestal dimensions | 400 x 500 x 670 mm | |
| Top drawer internal dimensions | 350 x 450 x 150 mm | |
| Lower cabinet internal dimensions | 350 x 450 x 470 mm | |
| Elevated side shelf dimensions | 300 x 250 x 120 mm | |
| Worktop thickness | 25 mm | |
| Metal leg section size | 60 x 30 mm | |
| Cable grommet diameter | 60 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
| Worktop uniform static load capacity | 150 kg | |
|---|---|---|
| Drawer slide cycle durability | 50000 cycles | |
| Cabinet door hinge cycle durability | 80000 cycles | |
| Workstation net weight | 126 kg | |
| Recommended user count | 2 users | |
| Melamine surface abrasion resistance | 2000 cycles | |
| Product warranty period | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Worktop panel | 25mm E1-grade melamine-faced MFC board | |
|---|---|---|
| Edge banding | 1mm PVC edge trim on all worktop and panel edges | |
| Central privacy divider | 16mm MDF core with fabric upholstered surface | |
| Support frame and legs | 1.2mm thick powder-coated white steel box section | |
| Pedestal cabinet body | 16mm melamine-faced particleboard with matching white finish | |
| Cabinet back panel | 6mm melamine-laminated MDF | |
| Drawer and door hardware | Cold-rolled steel slides, steel keyed locks, steel hinges | |
| Leveling feet | Nylon and steel adjustable feet under pedestal and legs | |
| Integrated power module | ABS plastic housing with AC power outlets | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel |
Adjustment / rotation / tilt / mobility / storage features

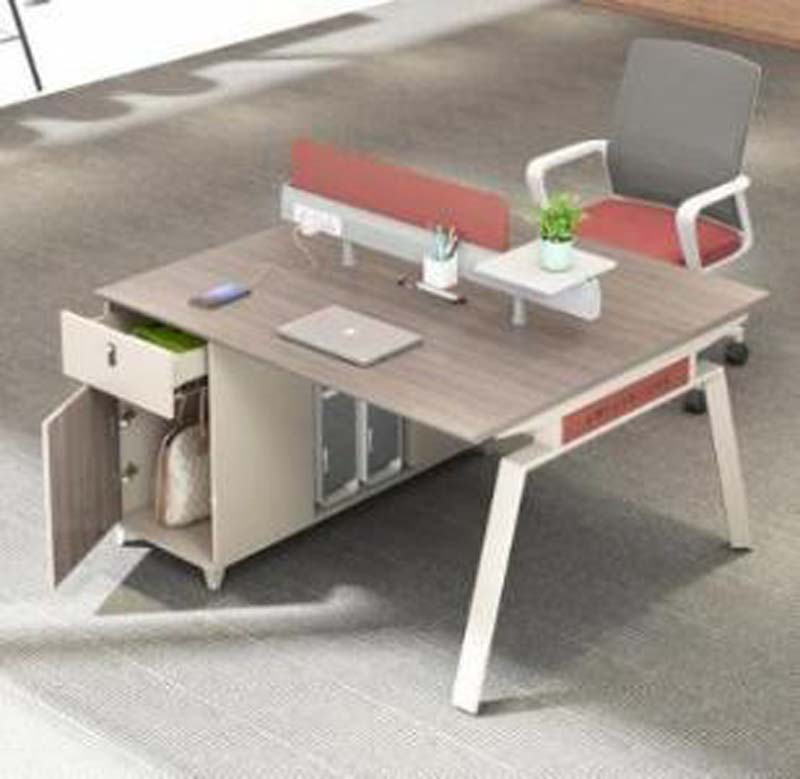

| Seating layout | Face-to-face dual opposite seating arrangement for two staff | |
|---|---|---|
| Lockable storage | Key-locked top drawer and lower cabinet door for personal item security | |
| Cable management | Central divider power outlet and worktop grommets for cable routing | |
| Desktop accessory shelf | Raised side shelf for small plants and desk organizers to free work space | |
| Leveling adjustment | Adjustable feet to compensate for uneven office flooring | |
| Privacy separation | Central fabric divider blocks direct line of sight between opposite users | |
| Surface protection | Scratch, stain, and water-resistant melamine finish for easy maintenance | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
| Open plan office areas | Fits 2-person team clusters in open office layouts to maximize space efficiency | |
|---|---|---|
| Small business workspaces | Suitable for startup offices with limited floor space for two staff | |
| Staff department zones | Ideal for administrative, customer service, or operations team work areas | |
| Seated daily office work | Designed for computer-based tasks, document processing, and daily desk work | |
| Modular office fit-outs | Can be grouped with matching units to create larger multi-seat workstation clusters |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and strength requirements, applicable for commercial office use | |
|---|---|---|
| EN 527-2:2002+A1:2019 | Office work tables mechanical safety requirements, applicable to structural stability | |
| EN 14073-2:2004 | Office storage furniture safety requirements, applicable to pedestal drawers and cabinet | |
| EN 13722:2004 | Furniture strength testing for storage units, applicable to cabinet load performance |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for safety, durability and structural performance | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard for drawer and cabinet performance in office settings |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk panel and cabinet construction | |
|---|---|---|
| GB/T 3325-2017 | Metal furniture general technical requirements, applicable to steel frame and leg structure | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to MFC/MDF components | |
| GB/T 10357.1-2013 | Furniture mechanical performance test for tables, applicable to worktop load testing |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk panel and cabinet construction; 2. GB/T 3325-2017: Metal furniture general technical requirements, applicable to steel frame and leg structure; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to MFC/MDF components; 4. GB/T 10357.1-2013: Furniture mechanical performance test for tables, applicable to worktop load testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
