PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Worktop distributed load	100 kg
Lower cabinet shelf load	25 kg per shelf
Hutch shelf load	15 kg per shelf
Maximum users	2
Product net weight	135 kg
Packaged gross weight	155 kg
Recommended floor live load	3.0 kPa
Adjustable foot leveling range	10 mm
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop	25 mm wood-grain melamine-faced particleboard with impact-resistant edge banding
Cabinet and hutch panels	18 mm melamine-faced board in walnut-brown and charcoal finishes
Support legs	50 x 50 mm square steel tube with charcoal powder-coated finish
Privacy screen	18 mm blue upholstered or laminated divider panel with silver support brackets
Lower cabinet front	Charcoal melamine door or fixed front panel with recessed pull detail
Cabinet hardware	Steel hinges, shelf supports, cam bolts and adjustable leveling feet

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Privacy division	Central low screen separates two seated work zones while maintaining sightlines over the 350 mm panel
Cable management	Two round cable ports route power and data cables from the work surface toward the rear cabinet zone
Overhead document storage	Four open side shelves and one central open compartment provide binder and document storage above the rear work surface
Under-top storage	Dark floor-supported cabinet provides enclosed storage and structural support on the right side of the workstation

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Packaged gross weight	155 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suits two-person benching in open offices where visual separation, cable ports and shared overhead filing are required.
Project procurement and staff work areas	Suitable for administrative, finance and back-office teams needing fixed work surfaces plus binder storage within one footprint.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-HUTCH-1800-WAL-BLU

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-HUTCH-1800-WAL-BLU

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-HUTCH-1800-WAL-BLUOpen Export Tool

Quick Actions

Post an RFQ

Product Description

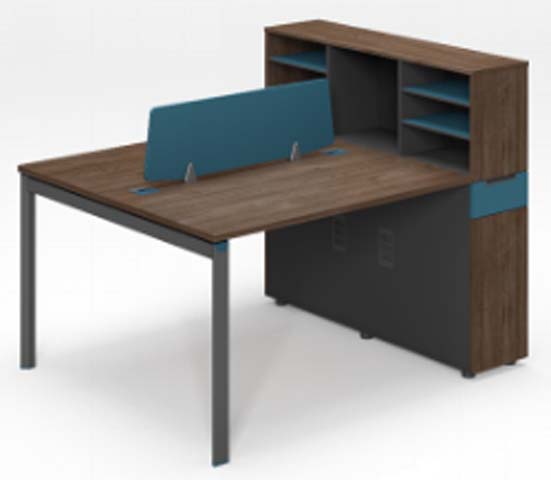

The Two-Person Office Workstation with Divider Screen and Over-Desk Storage Hutch is an unbranded benching solution, model WS-2P-HUTCH-1800-WAL-BLU, designed to combine two individual work positions, privacy division, and integrated storage in one coordinated footprint. Its rectangular layout places a central blue divider between the seated zones, creating clear personal space while retaining open sightlines over the 350 mm panel. Silver support brackets give the screen a structured visual finish, while walnut-brown and charcoal storage surfaces, charcoal metal legs, and the dark lower cabinet create a professional two-tone appearance. The overhead hutch spans the rear work area with four open side shelves and one central open compartment for binders and documents, balancing accessible filing with an uncluttered desk surface. Construction uses a 25 mm wood-grain melamine-faced particleboard worktop with impact-resistant edge banding and a finished top thickness of 50 mm. Cabinet and hutch components are made from 18 mm melamine-faced board in walnut-brown and charcoal finishes. The lower cabinet front is charcoal melamine, available as a door or fixed front panel with a recessed pull detail. Support is provided by 50 by 50 mm square steel tube legs with charcoal powder coating, together with steel hinges, shelf supports, cam bolts, and adjustable leveling feet. The blue privacy screen is offered as an 18 mm upholstered fabric or laminated rigid panel. For daily use, the central low screen separates two users without fully enclosing either position. Two round cable ports, each 80 mm in diameter, route power and data cables from the work surface toward the rear cabinet area, supported by a cable tray with 120 mm depth. The hutch supplies open overhead document storage, while the dark floor-supported lower cabinet on the right provides enclosed storage and additional structural support. Each main seat has 680 mm high and 900 mm wide effective knee clearance. The worktop is rated for a 100 kg distributed load, lower cabinet shelves for 25 kg each, and hutch shelves for 15 kg each. This workstation is suited to open-plan offices that need two-person benching with visual separation, cable routing, and shared overhead filing. It is also appropriate for administrative, finance, back-office, and staff work areas requiring fixed surfaces and binder storage in a single footprint. Procurement planning should account for a two-user maximum, 135 kg net weight, and a recommended floor live load of 3.0 kPa. Packaging details include a reference gross weight of 180 kg per set, four cartons, and one cubic metre per set; the main top package measures 2500 by 1050 by 350 mm, with the return or pedestal packed separately. Reference assembly time is 40 minutes per set.
