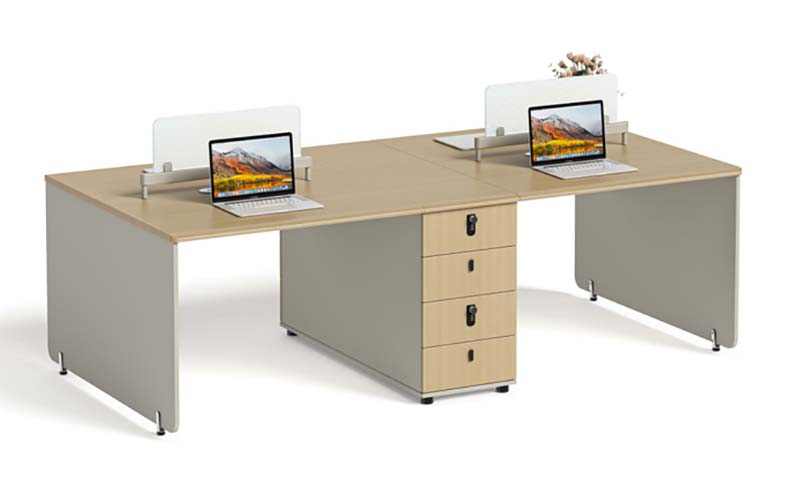

Two-Person Face-to-Face Office Workstation with Central Drawer Pedestal (model WS2-2800x1200-CP4) is listed under Open Workstation. Dimensions: 2800 × 1200 × 1100 mm. Materials: 25 mm melamine-faced wood-composite panel with sealed edge banding and light oak grain finish. Load capacity: 100 kg total, 50 kg per user. Product Features: two-person,workstation,layout,drawer,pedestal,panel,leg,construction,desktop,privacy,screen. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | XIANGSHI | Model | WS2-2800x1200-CP4 |
| Overall dimensions (W × D × H) | 2800 × 1200 × 1100 mm | Finished Top Thickness | 50 mm |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | Leg / Support Section | 80 mm main section with 2 mm metal wall |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm | Product net weight | 145 kg |
| Distributed work-surface load | 100 kg total, 50 kg per user | Drawer load rating | 12 kg per drawer |
| Central pedestal static load | 60 kg | Supported occupants | 2 people |
| Drawer slide cycle rating | 50,000 cycles | Work-surface impact resistance | 30 N drop load |
| Leveling glide vertical capacity | 40 kg per glide | Top Static Load Reference | 150 kg uniformly distributed |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | Work surface | 25 mm melamine-faced wood-composite panel with sealed edge banding and light oak grain finish |
| Drawer pedestal | Melamine-faced composite panels in matching oak tone with four recessed drawer pulls and black locks | Side modesty panels | Warm grey painted steel or aluminium panels with rounded exposed edges |
| Privacy screens | White compact panel with rounded upper corners, supported by a grey metal desk clamp | Drawer hardware | Black face-mounted locks, recessed pulls, side-mounted slides, and black base bumpers |
| Feet and support hardware | Steel threaded leveling glides with black non-marking polymer pads | Face-to-face working arrangement | Two users occupy opposite 1400 mm sides with independent knee openings and one shared central support |
| Central storage | Four vertically stacked drawers provide locked storage on the first and third drawers and open access on two intermediate drawers | Visual privacy system | Two low desktop-mounted screens separate laptop areas without blocking overhead communication or room light |
| Floor leveling | Six threaded glides rotate independently to compensate for uneven floors and keep the joined worktop level | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | Reference Packaging Volume | 1 m³/set |
| Open-plan office clusters | Suitable for side-by-side workstation rows where two staff share one compact storage spine while retaining separate work surfaces | Administrative and clerical work areas | Supports laptop use, document filing, and personal locked storage for reception, administration, or accounting teams |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2800 × 1200 × 1100 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Product net weight | 145 kg | |
|---|---|---|
| Distributed work-surface load | 100 kg total, 50 kg per user | |
| Drawer load rating | 12 kg per drawer | |
| Central pedestal static load | 60 kg | |
| Supported occupants | 2 people | |
| Drawer slide cycle rating | 50,000 cycles | |
| Work-surface impact resistance | 30 N drop load | |
| Leveling glide vertical capacity | 40 kg per glide | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25 mm melamine-faced wood-composite panel with sealed edge banding and light oak grain finish | |
|---|---|---|
| Drawer pedestal | Melamine-faced composite panels in matching oak tone with four recessed drawer pulls and black locks | |
| Side modesty panels | Warm grey painted steel or aluminium panels with rounded exposed edges | |
| Privacy screens | White compact panel with rounded upper corners, supported by a grey metal desk clamp | |
| Drawer hardware | Black face-mounted locks, recessed pulls, side-mounted slides, and black base bumpers | |
| Feet and support hardware | Steel threaded leveling glides with black non-marking polymer pads |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Face-to-face working arrangement | Two users occupy opposite 1400 mm sides with independent knee openings and one shared central support | |
|---|---|---|
| Central storage | Four vertically stacked drawers provide locked storage on the first and third drawers and open access on two intermediate drawers | |
| Visual privacy system | Two low desktop-mounted screens separate laptop areas without blocking overhead communication or room light | |
| Floor leveling | Six threaded glides rotate independently to compensate for uneven floors and keep the joined worktop level |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office clusters | Suitable for side-by-side workstation rows where two staff share one compact storage spine while retaining separate work surfaces | |
|---|---|---|
| Administrative and clerical work areas | Supports laptop use, document filing, and personal locked storage for reception, administration, or accounting teams |
EU Market Access Requirements* EN Standards
| EN 527-1 office desk safety and dimensions | Suitable European procurement reference for fixed-height office work-surface dimensions and safety | |
|---|---|---|
| EN 527-2 mechanical safety requirements | Recommended structural acceptance reference for strength, stability, and pedestal-supported desks | |
| EN 15338 drawer hardware durability | Recommended reference for extension-slide durability and drawer operational performance | |
| EN 717-1 formaldehyde release | Recommended panel-emission test reference when specifying wood-composite board |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5 desk products | Recommended North American performance standard for desk strength, fatigue, loading, and stability | |
|---|---|---|
| BIFMA E3 furniture sustainability | Optional multi-attribute sustainability specification for material, energy, and human-health criteria | |
| ANSI/BIFMA X5.9 storage units | Recommended acceptance basis for drawer operation, locks, load capacity, and pedestal stability |
Standards applicable to China-market projects
| GB/T 3324-2017 dimensional and structural suitability | Applies to wooden furniture dimensions, tolerances, and structural inspection for the composite desk and pedestal components | |
|---|---|---|
| GB/T 3325-2017 metal furniture suitability | Applies to inspection requirements for the metal modesty panels, supports, brackets, and leveling hardware | |
| GB 18580-2017 formaldehyde emission | Recommended acceptance criterion for wood-composite panels used in the desktop, drawers, and pedestal | |
| GB/T 10357 furniture strength tests | Recommended static-load, drawer, and stability test basis for commercial office desk procurement |
This product must meet the following technical requirements: 1. GB/T 3324-2017 dimensional and structural suitability: Applies to wooden furniture dimensions, tolerances, and structural inspection for the composite desk and pedestal components; 2. GB/T 3325-2017 metal furniture suitability: Applies to inspection requirements for the metal modesty panels, supports, brackets, and leveling hardware; 3. GB 18580-2017 formaldehyde emission: Recommended acceptance criterion for wood-composite panels used in the desktop, drawers, and pedestal; 4. GB/T 10357 furniture strength tests: Recommended static-load, drawer, and stability test basis for commercial office desk procurement; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
