PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 1200 × 1050 mm
Work surface height (seated ergonomic)	750 mm
Per-seat work surface width	1400 mm
Per-seat work surface depth	700 mm
Desktop privacy divider height above surface	450 mm
Desktop panel thickness	25 mm
Under-desk knee clearance height	650 mm
Under-desk knee clearance depth per seat	500 mm
Drawer pedestal width per unit	400 mm
CPU compartment dimensions	250 x 500 x 450 mm
Steel support leg thickness	1.2 mm
Frame support beam cross-section	50 x 25 mm
PVC edge banding thickness	2 mm
Desktop grommet diameter	60 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total product net weight	120 kg
Uniform distributed desktop static load per seat	100 kg
File drawer static load capacity per drawer	30 kg
Recommended maximum user weight per seat	120 kg
Surface scratch resistance	2000 cycles
Surface water and stain resistance	Class 2
Product service warranty	5 years
Drawer slide cycle rating	50000 cycles
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface panel	25mm melamine-faced E1 grade engineered wood
Edge banding	2mm thick impact-resistant PVC/ABS trim
Support frame and legs	1.2mm thick powder-coated matte black steel
Privacy dividers	Fabric-covered medium-density fiberboard panels
Storage pedestal cabinet bodies	18mm thick melamine-faced engineered wood
Drawer fronts	18mm thick melamine-faced engineered wood with integrated recessed pulls
Drawer slides	Cold-rolled steel full-extension smooth-glide rails
CPU compartment door panels	Ventilated light grey steel panels
Cable management channels	PVC raceways mounted beneath work surface
Leveling feet	Nylon-tipped adjustable steel feet
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Four dedicated independent work positions	Linear layout with individual knee clearance for each seated user
Integrated two-drawer storage pedestals	One lockable pedestal per outer seat for office supplies and file storage
Dedicated under-desk CPU compartments	Ventilated bays between pedestals for full-size desktop computer towers
Desktop-mounted privacy dividers	Partitions between adjacent seats to reduce visual distraction at work
Built-in cable management system	Grommets on work surface plus under-desk raceways for cable routing
Adjustable leveling feet	±15mm height adjustment at all base contact points
Lockable drawer storage	Central locking mechanism secures all pedestal drawers for personal item security
Modular expandable configuration	Connects to additional workstation units to create longer linear bench runs
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan corporate office work areas	Four-staff layout for team-based departments and administrative teams
Co-working space dedicated fixed desks	Provides dedicated private storage and visual separation for shared workspaces
Small business staff work zones	All-in-one configuration reduces need for separate storage furniture purchases
Administrative and operations departments	Standard ergonomic height supports full-day seated computer work
Project team cluster areas	Linear layout facilitates easy collaboration between adjacent team members
Recommended paired seating	Ergonomic mid-back rolling office chairs with 5-star bases
Compatible office equipment	Standard desktop monitors, laptops, and full-size desktop tower computers

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables: Safety and dimensional requirements
EN 527-2:2016	Office work tables: Mechanical safety and strength test methods
EN 13986:2004+A1:2015	Wood-based panels for construction and furniture use
EN 12521:2015	Furniture strength, durability and safety requirements for non-domestic seating-adjacent tables

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk Products standard for performance and durability
ANSI/BIFMA M7.1-2020	Standard test method for VOC emissions from office furniture systems

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture for office desks
GB/T 3327-2017	Performance test methods for office desks and work tables
GB 18580-2017	Formaldehyde emission limits for wood-based panel products
GB/T 4897.3-2015	Specification for particleboard used in furniture construction

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture for office desks;
2. GB/T 3327-2017: Performance test methods for office desks and work tables;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panel products;
4. GB/T 4897.3-2015: Specification for particleboard used in furniture construction;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OWS-4P-LNR-2812

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OWS-4P-LNR-2812

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OWS-4P-LNR-2812Open Export Tool

Quick Actions

Post an RFQ

Product Description

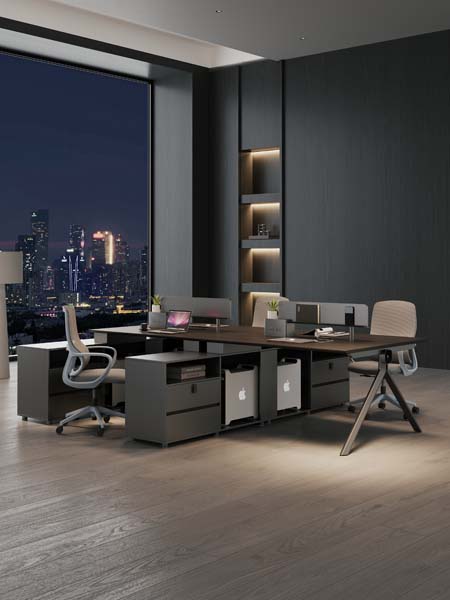

The 4-Person Linear Modular Open-Plan Office Workstation Desk (model OWS-4P-LNR-2812) is an unbranded commercial multi-seat furniture solution designed to balance collaborative access and individual work focus in shared work environments. Its straight linear layout organizes four independent, equally sized work positions along a continuous surface, finished in a dark walnut-grey palette that pairs seamlessly with a range of professional interior schemes. Low-pile fabric-covered privacy dividers rise above the work surface to create soft visual separation between adjacent seats, reducing cross-work distraction without blocking open sightlines across the larger office space. The workstation’s construction pairs durable, commercial-grade materials selected for long-term daily use: a 25mm thick E1-grade melamine-faced engineered wood desktop is finished with 2mm impact-resistant PVC edge banding to protect against daily knocks and wear, supported by a rigid 1.2mm thick matte black powder-coated steel trestle frame. Integrated storage components are built from matching 18mm melamine-faced engineered wood, with cold-rolled steel full-extension drawer slides, ventilated light grey steel CPU compartment doors, and PVC under-desk cable raceways. Each outer seat includes a lockable two-drawer storage pedestal with a central locking mechanism to secure personal items, office supplies, and files, while dedicated ventilated bays between pedestals accommodate full-size desktop computer towers. Built-in cable management includes surface grommets and under-desk raceways to keep power and data cords organized and out of sight, and adjustable leveling feet at every base contact point compensate for uneven flooring. The desk holds a seated ergonomic work surface height, with sufficient knee clearance for comfortable full-day use, and supports a 100kg uniform static load per seat. Its scratch-resistant, Class 2 water and stain-repellent surface stands up to regular office use, backed by a 5-year product service warranty. This workstation is ideal for open-plan corporate team zones, co-working space fixed dedicated desks, small business staff work areas, administrative departments, and project team clusters, as its linear design allows easy adjacent collaboration while its all-in-one configuration eliminates the need for separate storage furniture purchases. When procuring, note that each unit ships across multiple cartons, requires 40 minutes of assembly time per set, and pairs optimally with mid-back five-star base rolling ergonomic office chairs to deliver a complete work setup.

4-Person Linear Modular Open-Plan Office Workstation Desk with Integrated Storage and Dividers Specifications
