Automatic mm / inch conversion · Core engineering specifications
| overall cluster dimensions | 4200 x 1200 x 750 mm | |
|---|---|---|
| per-seat work surface width | 1400 mm | |
| per-seat work surface depth | 700 mm | |
| worktop thickness | 25 mm | |
| low privacy divider height above worktop | 450 mm | |
| under-desk knee clearance height | 650 mm | |
| knee clearance depth per seat | 450 mm | |
| PVC edge banding thickness | 2 mm | |
| integrated drawer pedestal dimensions | 400 x 500 x 600 mm | |
| steel support leg tube section | 40 x 35 mm | |
| steel leg wall thickness | 1.8 mm | |
| cable grommet diameter | 80 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
| per-workstation static vertical load capacity | 300 kg | |
|---|---|---|
| worktop surface abrasion resistance | 2000 cycles | |
| powder-coated frame corrosion resistance | 48 hours | |
| drawer slide operational cycle rating | 50000 cycles | |
| net weight per complete workstation set | 280 kg | |
| standard warranty period for structural components | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
| worktop core | E1-grade particleboard | |
|---|---|---|
| worktop surface | Thermal-fused melamine laminate | |
| worktop edging | 2mm thick PVC edge banding | |
| support frame and legs | Powder-coated matte white steel | |
| privacy dividers | Two-tone warm brown/beige MDF panels | |
| storage pedestal cabinets | Melamine-faced particleboard | |
| drawer hardware | Zinc-plated steel ball-bearing slides | |
| cable management components | ABS plastic wire channels and grommets | |
| leveling feet | Nylon-padded adjustable steel feet | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel |
Adjustment / rotation / tilt / mobility / storage features

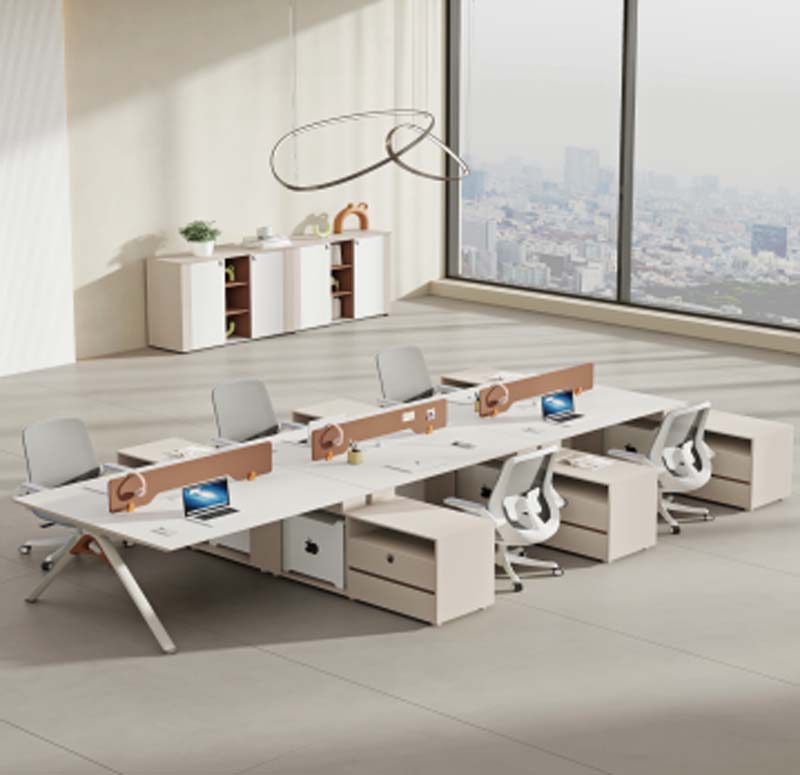

| face-to-face 6-seat layout | Two parallel rows of 3 work positions | |
|---|---|---|
| low privacy dividers | Mounted between adjacent and opposite seats | |
| integrated under-desk storage pedestals | Two lockable drawers per seat | |
| built-in cable management system | Under-desk wire trays and desk grommets | |
| modular connection design | Pre-drilled connecting brackets | |
| adjustable leveling feet | 15mm vertical adjustment range | |
| lockable drawer mechanism | Keyed alike or individual key options | |
| divider-mounted accessory slots | Integrated hangers for headphone and small item storage | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
| open-plan corporate office zones | Fits 6 employees per cluster, supports high-density team workspaces | |
|---|---|---|
| co-working space hot-desking areas | Lockable storage and integrated power supports flexible shared use | |
| startup and small business team offices | All-in-one design eliminates separate desk and storage purchases | |
| government and institutional back offices | Commercial grade construction supports long-term daily use | |
| call center and operations floors | Low dividers balance privacy and supervisor line of sight |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables and desks safety and strength requirements | |
|---|---|---|
| EN 13722:2004 | Office furniture storage units performance requirements |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products safety and durability standard | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units safety and performance standard |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture | |
|---|---|---|
| GB/T 3325-2017 | General technical requirements for metal furniture | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels | |
| GB/T 10357.1-2013 | Furniture mechanical performance test for tables |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture; 2. GB/T 3325-2017: General technical requirements for metal furniture; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels; 4. GB/T 10357.1-2013: Furniture mechanical performance test for tables; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
