PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions	2800 x 1600 x 750 mm
Per-user worksurface width	1200 mm
Per-user worksurface depth	700 mm
Desktop thickness	29 mm
PVC edge band thickness	2 mm
Privacy divider height	300 mm
Knee clearance height under desktop	673 mm
Fixed storage pedestal dimensions	450 x 600 x 650 mm
Lower cabinet door internal height	460 mm
Splayed steel leg tube cross-section	45 mm diameter
Leveling foot diameter	30 mm
Power rail cable grommet diameter	60 mm
Open legroom width per user position	600 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per-seat desktop static load capacity	120 kg
Unit total net weight	288 kg
Drawer slide cycle durability	50000 cycles
Cabinet hinge cycle durability	80000 cycles
Recommended user capacity	4 seated workers
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement Warranty	Structure 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop panel	29mm E1 grade melamine-faced particle board with 2mm PVC edge banding
Support frame and legs	Powder-coated white steel tube with matte finish
Privacy dividers	Grey woven fabric-upholstered composite board on silver metal rails
Storage cabinetry	Dual-tone melamine-faced engineered wood, white drawer fronts with light oak cabinet doors
Power rail assembly	Silver ABS plastic housing with integrated AC power outlets
Base hardware	Nylon adjustable leveling feet on all cabinet and leg contact points

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Integrated power access	Dual AC outlet banks mounted on divider rails per two seats
Cable management	Under-desk cable raceways routed from power rails to floor access
Lockable storage	Keyed cam lock per upper pedestal drawer
Modular connectivity	Pre-drilled connecting brackets for linking additional workstation runs

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office staff zones	Configured for 4 seated workers with visual privacy separation
Coworking shared workspaces	Integrated power and lockable storage support hot-desking use

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011+A1:2019	Office worktables: safety and dimensional requirements
EN 1335-1:2020	Office work chair dimensional coordination
EN 1022:2018	Furniture seating and table stability test methods

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Office desk products performance standard
ANSI/BIFMA X5.9-2019	Storage units for office environments
ANSI/BIFMA e3-2019	Furniture sustainability standard

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden office furniture
GB/T 3327-2017	Performance test methods for office desks
GB 18580-2017	Formaldehyde emission limits for wood-based panels
GB/T 4897.3-2015	Particle board for furniture use

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden office furniture;
2. GB/T 3327-2017: Performance test methods for office desks;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels;
4. GB/T 4897.3-2015: Particle board for furniture use;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFW-4P-BNCH-024

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFW-4P-BNCH-024

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFW-4P-BNCH-024Open Export Tool

Quick Actions

Post an RFQ

Product Description

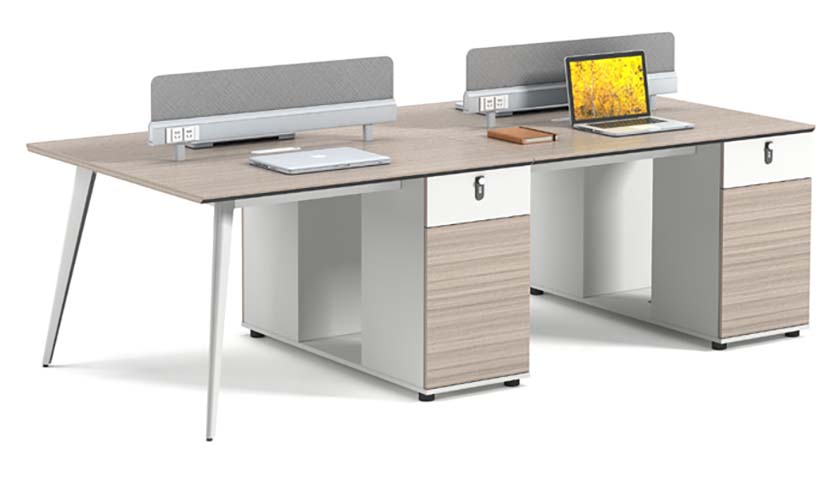

The double-sided four-person modular office bench workstation presents a balanced, space-efficient layout tailored for collaborative yet focused work settings, with a low-profile, symmetrical footprint that supports two users positioned on each opposite side of the central unit. Soft grey woven fabric privacy dividers run along the central spine, rising high enough to create subtle visual separation between facing workstations without blocking natural light or open sightlines across the broader space. Each individual user station includes a dedicated worksurface, paired with integrated storage positioned at knee level for easy access without intruding on leg room. The unit’s design leans into a modern commercial aesthetic, pairing crisp matte white structural elements with warm light oak storage door accents for a polished, understated look. Constructed for regular high-traffic use, the workstation features thick melamine-faced particle board desktops edged with durable PVC banding, supported by matte powder-coated white steel tube legs for steady structural support. The fabric dividers are mounted on slim silver metal rails, while storage components use dual-tone melamine-faced engineered wood with white drawer fronts. Integrated silver plastic power rail assemblies sit along the divider structure, and all contact points with the floor are fitted with nylon adjustable leveling feet to accommodate uneven floor surfaces. Built-in functional features support seamless daily use: each pair of adjacent seats has access to a dedicated bank of AC power outlets, with under-desk cable raceways to route cords neatly from power access points down to floor connections. Each upper pedestal storage drawer includes a keyed cam lock to secure personal items, and pre-drilled connecting brackets allow teams to link additional workstation units to create longer, cohesive bench runs as space needs evolve. Storage pedestals are positioned directly beneath each work area to keep supplies and personal items within easy reach, while maintaining the stated knee clearance under the desktop for comfortable seated positioning. This workstation is well suited for open-plan office staff zones, where its central dividers offer enough visual separation to reduce distraction while preserving the open feel of collaborative floor plans. It also functions effectively in coworking shared workspaces, where integrated power access and lockable storage support flexible hot-desking arrangements for rotating users. When planning procurement, buyers should note that the unit ships in multiple cartons, with a stated reference assembly time of 40 minutes per set. The modular connection system allows for scalable layout expansion over time, so teams can match installation volume to current headcount while reserving the option to extend workstations as teams grow. The unbranded unit fits seamlessly into standardized modern office fit-outs, with a neutral finish palette that coordinates with a wide range of existing commercial furniture collections.

FurnDim

Four-Person Double-Sided Modular Office Bench Workstation with Fabric Dividers and Integrated Storage Specifications

OFW-4P-BNCH-024
