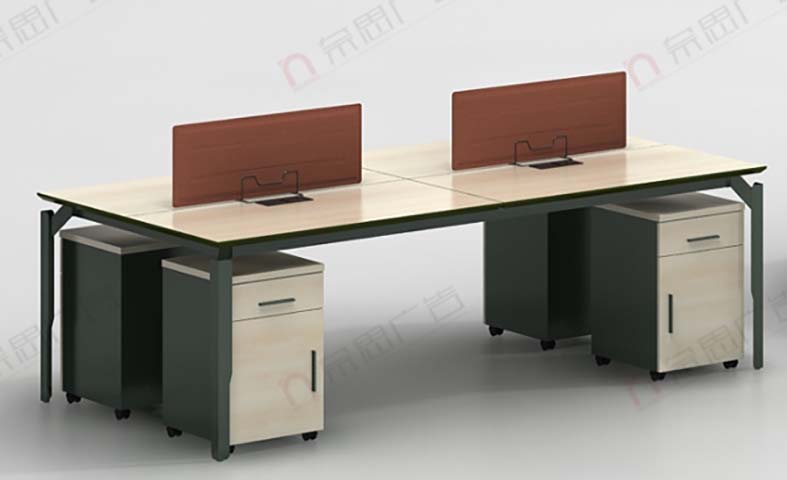

Product supplier4-Person Face-to-Face Modular Office Workstation Desk with Privacy Dividers and Mobile Pedestals, E1-grade melamine faced particleboard
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2800 × 1200 × 750 mm | |
|---|---|---|
| Per-individual workstation zone | 1400 x 600 mm | |
| Tabletop thickness | 25 mm | |
| PVC edge band thickness | 2 mm | |
| Central privacy screen height above floor | 1050 mm | |
| Knee clearance height under tabletop | 680 mm | |
| Knee clearance depth per seat | 450 mm | |
| Steel frame square tube wall thickness | 1.2 mm | |
| Cable grommet diameter | 80 mm | |
| Mobile pedestal dimensions per unit | 400 x 500 x 600 mm | |
| Privacy screen thickness | 18 mm | |
| Frame leg cross-section | 50 x 50 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Distributed static load per workstation | 80 kg | |
|---|---|---|
| Mobile pedestal drawer static load | 30 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Door hinge cycle rating | 80000 cycles | |
| Tabletop surface abrasion resistance | 2000 cycles | |
| Recommended maximum user weight per seat | 120 kg | |
| Under-desk cable tray load capacity | 10 kg | |
| Frame static load total capacity | 320 kg | |
| Structural warranty period | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop core | E1-grade melamine faced particleboard | |
|---|---|---|
| Tabletop edge trim | 2mm thick color-matched PVC edge banding | |
| Support frame | Square steel tube with dark green powder-coated finish | |
| Central privacy dividers | Rigid melamine-faced panel with brown finish | |
| Mobile pedestal cabinet body | Melamine faced particleboard with two-tone light wood/dark green finish | |
| Mobile pedestal casters | 360-degree swivel black nylon casters | |
| Cable management grommets | Black ABS plastic cable pass-throughs | |
| Hardware fasteners | Zinc-plated steel cam-lock assembly hardware | |
| Pedestal handles | Anodized aluminum recessed pulls | |
| Frame base feet | Injection-molded nylon leveling glides | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Four individual face-to-face work zones | Two pairs of opposite seated positions separated by central dividers | |
|---|---|---|
| Mobile pedestal storage per seat | One 1-drawer, 1-door castered cabinet fits under each desk position | |
| Desktop cable management | Round grommets route power/data cables from desk surface to under-desk area | |
| Knock-down modular assembly | Cam-lock fittings enable on-site assembly and reconfiguration of layout | |
| Privacy screen line-of-sight separation | Dividers block direct face-to-face view between opposite seated users | |
| Mobile pedestal mobility | 360-degree swivel casters allow pedestals to be moved for cleaning or repositioning | |
| Leveling adjustment | Frame feet adjust to compensate for uneven office flooring | |
| Reconfigurable layout compatibility | Modules can be extended or repositioned to create larger workstation banks | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office staff areas | Provides 4 dedicated work positions with visual privacy for team-based workspaces | |
|---|---|---|
| Small business office layouts | All-in-one workstation set with storage reduces need for separate furniture purchases | |
| Startup and co-working spaces | Modular design supports flexible reconfiguration as team size changes | |
| Call center and administrative departments | Divided zones reduce cross-talk distraction for repetitive task work | |
| Temporary office fit-outs | Knock-down packaging enables fast deployment and easy relocation | |
| Corporate back-office work areas | Durable commercial-grade construction suits high-traffic daily office use |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables and desks safety and strength requirements | |
|---|---|---|
| EN 527-2:2002 | Office work tables mechanical safety and structural test methods | |
| EN 1335-2:2009 | Office furniture safety requirements for storage units used with workstations |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for structural safety and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard for mobile pedestal performance and safety |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to tabletop and pedestal panels | |
|---|---|---|
| GB/T 3325-2017 | Test methods for metal furniture, applicable to steel frame structural performance | |
| GB 18584-2001 | Indoor decorating and refurbishing materials limit of harmful substances for wooden furniture | |
| GB/T 10357.1-2013 | Furniture mechanical performance test for tables, applicable to desktop load testing |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to tabletop and pedestal panels; 2. GB/T 3325-2017: Test methods for metal furniture, applicable to steel frame structural performance; 3. GB 18584-2001: Indoor decorating and refurbishing materials limit of harmful substances for wooden furniture; 4. GB/T 10357.1-2013: Furniture mechanical performance test for tables, applicable to desktop load testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
