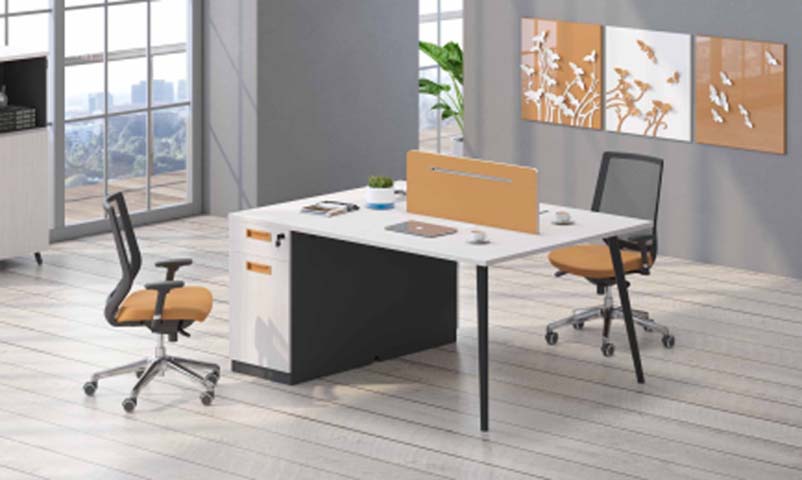

Two-Person Face-to-Face Office Workstation Desk with Central Privacy Divider and Fixed Storage Pedestal (model WS-2P-FTF-1600-WBK-TN) is listed under Open Workstation, with overall dimensions of 1600 × 1200 × 750 mm and main material of Particle‑board (PB). Load capacity: 136 kg. Certifications: modern,style,double-sided,layout,fixed,drawer,pedestal,desktop,divider,metal,leg,support. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall product dimensions | 1600 x 1200 x 750 mm | |
|---|---|---|
| Individual work zone size per user | 1600 x 600 mm | |
| Desktop thickness | 25 mm | |
| PVC edge banding thickness | 3 mm | |
| Central privacy divider dimensions | 1200 x 350 x 18 mm | |
| Seated knee clearance height under desktop | 673 mm | |
| Fixed left storage pedestal dimensions | 400 x 600 x 600 mm | |
| Upper accessory drawer internal dimensions | 340 x 520 x 150 mm | |
| Lower file drawer internal dimensions | 340 x 520 x 280 mm | |
| Steel support leg section size | 45 x 45 x 1.5 mm | |
| Cable grommet diameter | 60 mm | |
| Under-desk cable tray clearance | 100 mm | |
| Desk base footprint length | 1600 mm | |
| Desk base footprint depth | 1200 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Evenly distributed desktop static load capacity | 136 kg | |
|---|---|---|
| Drawer slide cycle durability | 50000 open/close cycles | |
| Surface scratch resistance rating | 2 N | |
| Product net weight | 125 kg | |
| Recommended user weight capacity per seated position | 136 kg | |
| Pedestal lock cycle durability | 10000 lock/unlock cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop panel | E1-grade particle board core with thermally fused white melamine finish, 3mm PVC edge banding | |
|---|---|---|
| Support legs | 1.5mm thick square steel tube with matte black powder-coated finish | |
| Central privacy divider | 18mm thick MDF panel with matte tan laminate finish | |
| Storage pedestal body | 18mm thick laminated particle board with two-tone white and black finish | |
| Drawer hardware | Zinc alloy lock core, cold-rolled steel ball-bearing full-extension slides, tan ABS drawer pulls | |
| Adjustable feet | Nylon base with steel threaded stem for level adjustment |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage configuration | Fixed left pedestal with two lockable drawers, single key secures both upper accessory and lower file drawers | |
|---|---|---|
| Privacy function | Central tan divider provides visual separation between two opposite-facing seated users | |
| Cable management | Dual desktop grommets route power and data cables to under-desk tray, reduces surface clutter | |
| Leveling adjustment | Threaded nylon feet on each leg compensate for uneven office flooring, eliminates wobble |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office spaces | Provides dedicated shared work zones with visual privacy for two staff per unit | |
|---|---|---|
| Small team startup work areas | Compact footprint fits limited floor space while offering integrated storage |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to desktop and frame performance | |
|---|---|---|
| EN 1335-1:2020 | Office furniture work chair dimensional coordination, applicable to knee clearance height |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for safety, durability and structural performance | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard for drawer slide and lock performance |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk panel and pedestal construction | |
|---|---|---|
| GB/T 3325-2017 | Metal furniture general technical requirements, applicable to steel support legs and frame | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to E1-grade core materials |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk panel and pedestal construction; 2. GB/T 3325-2017: Metal furniture general technical requirements, applicable to steel support legs and frame; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to E1-grade core materials; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
