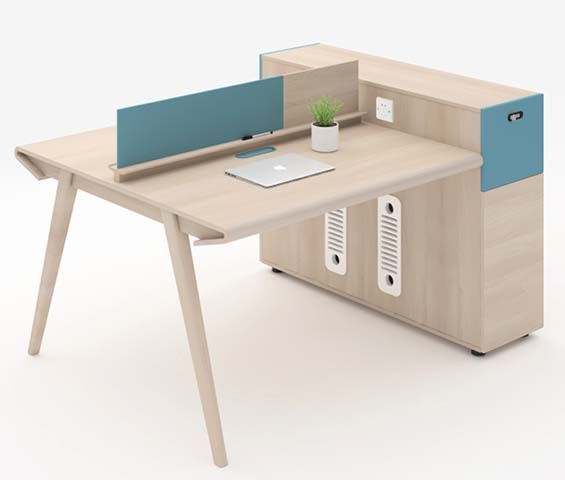

2-Person L-Shaped Modular Office Workstation with Privacy Divider and Integrated Storage (model WS-L2-LB16) is listed under Open Workstation, with overall dimensions of 2400 × 1200 × 1100 mm and main material of Particle‑board (PB). Load capacity: 136 kg. Certifications: Modern,style,L-shaped,layout,desktop,privacy,divider,integrated,rear,storage,power,module,splayed,angled,legs,cable,management,system. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall assembled dimensions | 2400 x 1200 x 1100 mm | |
|---|---|---|
| Work surface height | 750 mm | |
| Work surface thickness | 25 mm | |
| Edge banding thickness | 2 mm | |
| Single workstation work surface width | 1200 mm | |
| Work surface depth (front work area) | 600 mm | |
| Desktop-mounted privacy divider height | 400 mm | |
| Privacy divider thickness | 18 mm | |
| Knee clearance height under work surface | 650 mm | |
| Rear storage cabinet height | 1100 mm | |
| Rear storage cabinet depth | 400 mm | |
| Desktop cable grommet diameter | 80 mm | |
| Splayed leg metal tube wall thickness | 1.5 mm | |
| Rear cabinet adjustable leveling glide height adjustment | 10 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Work surface static load capacity | 136 kg | |
|---|---|---|
| Recommended maximum user weight per workstation | 136 kg | |
| Surface scratch resistance rating | 2000 cycles | |
| Finish stain resistance rating | Class 1 | |
| Leveling glide static load per foot | 150 kg | |
| Total product net weight (reference) | 120 kg | |
| Recommended commercial warranty period | 10 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface panels | E1-grade MDF core with light oak thermally fused laminate finish | |
|---|---|---|
| Front support legs | Powder-coated steel with light beige finish, splayed tapered design | |
| Privacy divider panels | Rigid MDF core with blue fabric/laminate front face and matching oak side trim | |
| Rear storage cabinet panels | E1-grade particle board core with matching light oak laminate, ventilated ABS plastic cable covers | |
| Integrated power module | Fire-retardant ABS housing with 2 AC outlets, 2 USB charging ports | |
| Hardware and glides | Zinc-plated steel cam-lock fasteners, nylon adjustable leveling feet |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management system | Desktop grommets route cables to ventilated rear cabinet channels, organizing power and data cords | |
|---|---|---|
| Integrated power access | Rear upper shelf power module provides desk-side AC and USB charging for devices | |
| Privacy divider function | Center desktop divider reduces visual distraction between adjacent seated workers | |
| Rear storage security | Lockable end panel secures stored items and CPU equipment inside the rear cabinet |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office staff work areas | Provides separated two-person work zones with reduced distraction and integrated power | |
|---|---|---|
| Small team office or co-working space | Compact L-shaped footprint maximizes space while including storage and cable management |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to worktop load and stability | |
|---|---|---|
| EN 1335-1:2020 | Office furniture ergonomic requirements for work surfaces, applicable to desk height and clearance | |
| EN 14073-2:2004 | Office storage furniture safety requirements, applicable to integrated cabinet units |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard, applicable to load, durability and stability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard, applicable to integrated cabinet shelf and lock performance |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to panel construction and surface finish | |
|---|---|---|
| GB/T 3327-2017 | Performance requirements for office desks and workstations, applicable to load and stability | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to E1-grade panel cores |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel construction and surface finish; 2. GB/T 3327-2017: Performance requirements for office desks and workstations, applicable to load and stability; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to E1-grade panel cores; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
