PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended users per module	2 persons
Worktop distributed static load	80 kg
Pedestal top distributed load	60 kg
Drawer static load	15 kg
Lower cabinet shelf load	20 kg
Workstation product weight	95 kg
Panel fastener lateral stability rating	Level 2 commercial office use
Drawer slide durability target	50000 cycles
Surface abrasion acceptance value	2000 cycles
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surfaces	25 mm wood-grain melamine-laminated particleboard with matching edge banding
Divider panels	25 mm light off-white panel, likely melamine-faced board with framed edges
Pedestal exterior	Wood-grain laminated drawer front with white laminated side and back panels
Drawer and door hardware	Steel pull handles, lock insert, hinges or slides, and cam-connecting fittings
Support structure	Panel-type floor-standing supports and integrated storage cabinet rather than independent steel legs
Edge and base protection	PVC edge banding and recessed protective plinth strip

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Privacy division	Central and rear panels separate adjacent workers and block direct sight lines above the work surface
Storage configuration	Each visible pedestal provides one shallow lockable drawer above one vertical-door storage compartment
Desk support method	Storage cabinets and floor-standing panels support the worktops without visible metal cantilever frames
Cable management	Desktop accepts a 60 mm round grommet or cutout at the rear work zone

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total packed volume	0.28 CBM
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office deployment	Suits two adjacent staff positions where privacy panels reduce visual distraction while retaining compact circulation
Document-handling work area	Suitable for administrative, sales, or finance staff using a laptop, files, stationery, and secured personal storage

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office desks safety, strength, and durability requirements for seated work surfaces
EN 14073-2:2004	Safety requirements for office storage furniture used with the drawer-and-door pedestals
EN 14073-3:2004	Stability and strength test methods for office storage units
EN 13986:2004+A1:2015	Characteristics and conformity requirements for wood-based panels in building and furniture use

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Performance standard for desk products covering strength, durability, and stability
ANSI/BIFMA X5.9-2019	Performance standard for storage units, including drawers, doors, locks, and stability

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to laminate panels, dimensions, edge finishing, and workmanship
GB/T 3325-2017	Metal furniture general technical requirements, applicable if steel drawer runners, handles, or connecting plates are supplied
GB 18580-2017	Formaldehyde emission requirement for wood-based panels used in the desk and cabinet components
GB/T 10357.5-2011	Furniture surface physical and chemical test for coating or laminate resistance

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to laminate panels, dimensions, edge finishing, and workmanship;
2. GB/T 3325-2017: Metal furniture general technical requirements, applicable if steel drawer runners, handles, or connecting plates are supplied;
3. GB 18580-2017: Formaldehyde emission requirement for wood-based panels used in the desk and cabinet components;
4. GB/T 10357.5-2011: Furniture surface physical and chemical test for coating or laminate resistance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-OAK-WHT-2400

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-OAK-WHT-2400

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-OAK-WHT-2400Open Export Tool

Quick Actions

Post an RFQ

Product Description

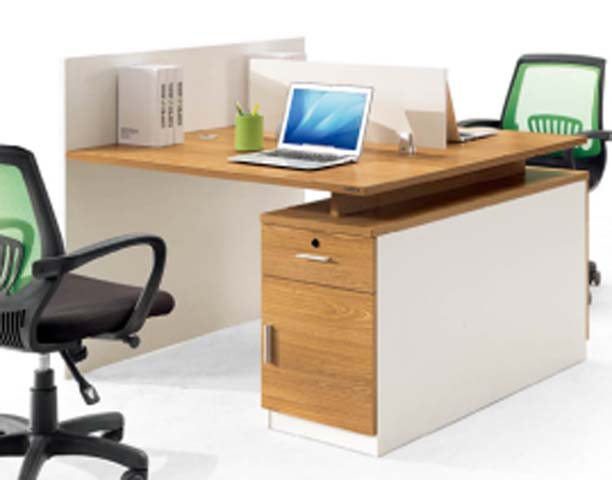

The Two-Person Panel-Based Office Workstation presents a structured two-seat layout suited to shared work environments that benefit from defined personal zones. Its wood-grain laminate worktops and drawer fronts create a warm visual contrast with light off-white panel components, while central and rear panels separate adjacent workers and limit direct sight lines above the work surface. The panel-based form uses floor-standing supports and integrated storage rather than exposed cantilever framing, giving the arrangement a clean, built-in appearance with compact circulation around each position. Construction combines 25 mm wood-grain melamine-laminated particleboard work surfaces with matching edge banding and 25 mm light off-white divider panels with framed edges. The storage pedestals use wood-grain laminated drawer fronts with white laminated side and back panels. Steel pull handles, a lock insert, hinges or slides, and cam-connecting fittings provide the principal hardware. PVC edge banding and a recessed protective plinth strip help protect exposed edges and base areas. The finished top is 50 mm thick, the support section is 80 mm with a 2 mm metal wall, and effective knee clearance is 680 mm high and 900 mm wide at each main seat. Each visible pedestal provides one shallow lockable drawer above a vertical-door storage compartment, offering space for stationery, personal items, and files close to the user. The worktops are supported by the storage cabinets and floor-standing panels, preserving an uncluttered underside. Cable management is integrated into the rear work zone, with the desktop arranged to accept a round grommet or cutout; the cable opening is specified at 80 mm in diameter and the tray depth at 120 mm. The worktop has a distributed static load capacity of 80 kg, with pedestal top capacity of 60 kg, drawer capacity of 15 kg, and lower cabinet shelf capacity of 20 kg. This workstation is appropriate for open-plan offices and document-focused roles such as administration, sales, or finance, where staff use laptops, paperwork, and secured personal storage. It is rated for Level 2 commercial office use and accommodates two users per module. Fabric or mesh task chairs shown with the configuration are separate. Procurement planning should allow for site assembly, with a reference assembly time of 40 minutes per set. Buyers should reconcile the available packing references before ordering, as both two-carton and four-carton logistics details are listed, and confirm packaging dimensions, gross weight, volume, and access requirements for the installation location.

Two-Person Panel-Based Office Workstation with Side Storage Pedestals Specifications
