PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	52 kg
Per-user desktop static load	80 kg
Pedestal drawer load	20 kg per drawer
Recommended users	2 users
Shelf static load	25 kg
Leveling adjustment	10 mm
Drawer slide durability	50000 open-close cycles
Desktop surface abrasion resistance	300 cycles
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surfaces and rear shelf	25 mm melamine-faced particleboard with sealed PVC edges
Central privacy divider	18 mm perforated steel or perforated board with gray powder-coated finish
Support legs	32 mm powder-coated steel cylinders with non-marking gray leveling feet
Modesty panel	18 mm white board or steel privacy panel fixed below the desktop
Storage pedestal	Gray steel-enclosed two-drawer cabinet with white outer trim and individual locks
Cable channel and grommet	Gray recessed polymer or steel channel with a 60 mm cable grommet

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Two-user workspace division	Central perforated screen separates two individual work surfaces while retaining visual screening and airflow.
Cable routing	Cables pass through the 60 mm desktop grommet into the central recessed channel for monitor and power management.
Drawer storage and locking	Two vertically arranged pedestal drawers provide separate lockable storage for office documents and personal items.
Floor leveling	Rotating circular pads at each exposed leg adjust contact height to stabilize the workstation on uneven floors.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Main carton dimensions	1450 x 650 x 120 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office benching	Suitable for dense two-person work clusters where the central screen provides privacy and the spine organizes monitor cables.
Administrative or shared-service area	The lockable two-drawer pedestal supports daily filing and personal storage for staff at the workstation.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Safety, strength and durability	EN 16139
Office desks structural test reference	EN 527
Office dimensions and ergonomic layout	EN 527

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Desktop load and stability acceptance	GB/T 10357.5 and GB/T 10357.7
Wood-based panel formaldehyde control	GB 18580
Office furniture safety and physical property review	GB/T 3324

Standardized tender description text

This product must meet the following technical requirements:
1. Desktop load and stability acceptance: GB/T 10357.5 and GB/T 10357.7;
2. Wood-based panel formaldehyde control: GB 18580;
3. Office furniture safety and physical property review: GB/T 3324;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS2-1400X1200-SP700

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS2-1400X1200-SP700

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS2-1400X1200-SP700Open Export Tool

Quick Actions

Post an RFQ

Product Description

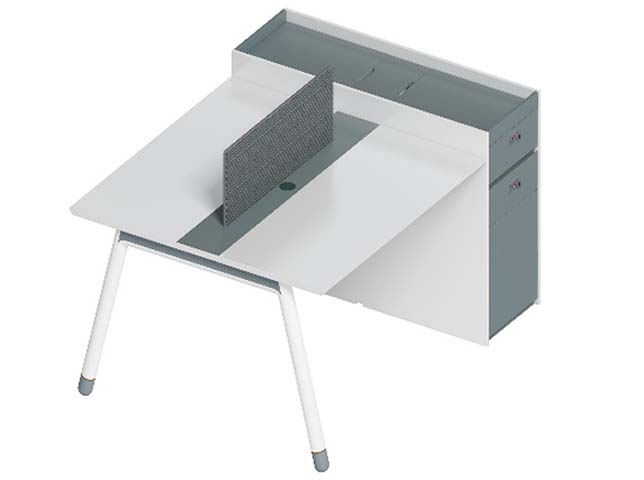

The Two-Person Workstation with Central Divider and Side Storage Pedestal is a structured office benching solution designed for two users in a single coordinated layout. Its visual character is defined by separate work surfaces, a central perforated privacy screen, a supporting modesty panel below the desktop, and a side pedestal that adds storage without disrupting the clean workstation profile. The white and gray finish gives it a neutral appearance suited to professional interiors, while the perforated central element provides visual separation without creating a fully enclosed feeling. Each user position retains an individual work zone, with a main seat knee clearance of 680 mm high and 900 mm wide. The work surface and rear shelf use 25 mm melamine-faced particleboard with sealed PVC edges, while the finished top thickness is 50 mm. Support is provided by 32 mm powder-coated steel cylinders fitted with non-marking gray leveling feet. The leg structure uses an 80 mm main support section with a 2 mm metal wall. An 18 mm white board or steel privacy panel sits below the work surface, and the 18 mm central divider is supplied in perforated steel or perforated board with a gray powder-coated finish. The gray storage pedestal is enclosed in steel, trimmed in white, and contains two vertically arranged drawers with individual locks. Functional details support daily office use. Cables pass through a 60 mm desktop grommet into the gray recessed polymer or steel central channel, helping organize monitor and power leads. The cable opening is specified at 80 mm in diameter, with a cable tray depth of 120 mm. The pedestal offers secure space for documents and personal belongings, while the rear shelf provides additional static-load storage. Rotating circular pads at each exposed leg allow 10 mm of leveling adjustment for stability on uneven floors. Rated capacities include an 80 kg per-user desktop static load, 25 kg shelf static load, and 20 kg load per pedestal drawer. The drawer slides are rated for 50000 open-close cycles. This workstation is well suited to open-plan office clusters, administrative work areas, and shared-service environments where two staff need adjacent but separated workspaces. It is particularly appropriate where privacy, cable organization, and personal locking storage are priorities. Procurement teams should plan for two recommended users, review the model designation WS1400X1200-SP700 against layout requirements, and allow for assembly time of 40 minutes per set. Packaging information should be confirmed at order placement because both a two-carton reference and a four-carton reference are listed, with the latter showing a packaged gross weight of 180 kg per set and a packaging volume of 1 m³ per set. Delivery, receiving space, and installation access should be planned around the separate return or pedestal packaging.

Two-Person Workstation with Central Divider and Side Storage Pedestal Specifications
