PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 1700 × 1450 mm
Overall footprint	2800 x 1700 x 1450 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Seating capacity	2 users
Work-surface distributed load	80 kg per seat
Top-shelf distributed load	25 kg per shelf
Lower open-shelf load	30 kg per shelf
Drawer load	15 kg
Closed cabinet floor load	25 kg per bay
Unit net weight	190 kg
Floor loading	44 kg per square meter
Warranty target	5 years
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm melamine-faced particleboard with light oak grain and sealed impact-resistant edges
Body panels	18 mm melamine-faced particleboard in warm gray and off-white finishes
Modesty and end panels	25 mm matching melamine panel with rounded top corners and floor glides
Storage doors and drawer face	18 mm light oak melamine door and drawer fronts with recessed pulls
Center dividers and shelves	18 mm gray melamine boards forming fixed open cubbies
Support and leveling hardware	Powder-coated steel rails, connector brackets, and 30 mm adjustable nylon glides

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Two-zone work layout	Two 1400 mm desktops are separated by a central vertical divider and rear shelving to support back-to-back or side-by-side planning
Integrated storage	Six upper open bays, multiple lower binder cubbies, one lockable drawer, and closed door storage provide task and personal storage
Cable management	A desktop grommet and rear shelf channel route monitor and laptop cables toward the shared under-desk service zone
Leveling installation	Adjustable circular glides under the side panel and cabinet base compensate for uneven floors without visible frame legs

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total packed volume	0.62 cbm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suitable for two-person clerical, finance, or administrative clusters where desktop work and immediate binder storage are required
Procurement configuration	Best specified in multiples to form linear workstation runs, with separate task chairs, monitor arms, and power modules added per seat

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables safety, strength, and durability requirements for the fixed work surfaces
EN 527-2:2011	Office work tables dimensional safety and structural test methods for seated workstations
EN 14073-2:2004	Office storage furniture safety requirements for shelves, doors, and drawer components
EN 14073-3:2004	Office storage furniture stability and strength test methods for the integrated cabinet run
EN 13986:2004+A1:2015	Wood-based panels for construction use characteristics, useful as a panel performance cross-check

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products standard for safety, strength, durability, and structural stability of office work surfaces
ANSI/BIFMA X5.9-2019	Storage units standard applicable to shelf loads, drawers, doors, locks, and stability
ANSI/BIFMA e3-2019	Furniture sustainability standard for optional material, emissions, and social-responsibility procurement scoring

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to panel dimensions, edge bonding, flatness, and structural stability
GB/T 3325-2017	Metal furniture technical requirements, applicable to steel rails, brackets, locks, and leveling hardware
GB 18580-2017	Formaldehyde emission limit for wood-based panels, recommended as the panel acceptance standard
GB/T 10357.5-2011	Furniture mechanical surface test for strength and durability, applicable to desktops and storage shelves

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel dimensions, edge bonding, flatness, and structural stability;
2. GB/T 3325-2017: Metal furniture technical requirements, applicable to steel rails, brackets, locks, and leveling hardware;
3. GB 18580-2017: Formaldehyde emission limit for wood-based panels, recommended as the panel acceptance standard;
4. GB/T 10357.5-2011: Furniture mechanical surface test for strength and durability, applicable to desktops and storage shelves;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-OVERHEAD-STORAGE-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-OVERHEAD-STORAGE-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-OVERHEAD-STORAGE-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

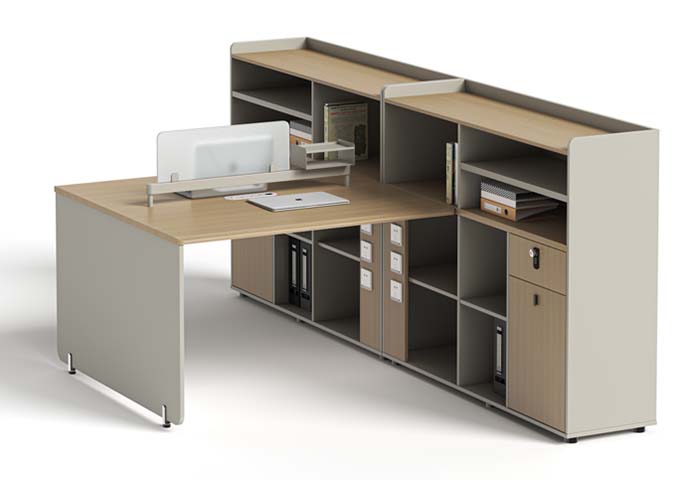

The Two-Person Panel-Based Workstation with Integrated Over-Desk Storage is an unbranded office workstation designed to combine individual workspace, partitioning, and accessible storage in one coordinated unit. Its two-zone layout provides two separate desktops divided by a central vertical panel and supported by rear shelving, allowing back-to-back or side-by-side planning within an overall footprint of 2800 x 1700 x 1450 mm. The light oak work surface contrasts with warm gray and off-white body panels, while rounded modesty and end panels give the structure a refined panel-built appearance. The finished work surface is 50 mm thick, and each main seat position offers 680 mm of knee clearance height and 900 mm of width. Construction uses melamine-faced particleboard throughout, with a 25 mm light oak grain work surface featuring sealed impact-resistant edges. Main body panels, storage doors, drawer faces, dividers, and shelves use 18 mm board in coordinating finishes. The modesty and end panels are 25 mm matching melamine panels. Structural support is provided by powder-coated steel rails and connector brackets, with an 80 mm main support section and 2 mm metal wall. Adjustable 30 mm nylon glides beneath the side panels and cabinet base allow leveling on uneven floors without visible frame legs. Integrated storage is arranged for both shared and personal use. The workstation includes six upper open bays, lower binder cubbies, a lockable drawer, and closed door storage. Light oak door and drawer fronts use recessed pulls, while fixed gray melamine dividers and shelves form open compartments. The stated load capacities are 80 kg distributed on each seat’s work surface, 25 kg per top shelf, 30 kg per lower open shelf, 15 kg for the drawer, and 25 kg per closed cabinet floor. Cable management is built into the work zone. An 80 mm desktop grommet and a rear shelf channel guide monitor and laptop cables toward a shared under-desk service area, where a 120 mm deep cable tray helps contain wiring. This makes the workstation suited to open-plan offices and two-person clerical, finance, or administrative clusters that require desktop space and immediate binder or document storage. For larger projects, it is best specified in multiples to create linear workstation runs. Buyers should plan for separate task chairs, monitor arms, and power modules for each seat. The workstation is supplied as a set, with a reference assembly time of 40 minutes; logistics information includes multiple packing references, so carton count, dimensions, and weight should be confirmed at order approval. Space planning should also account for the unit’s 190 kg net weight and storage access around the panel base.

Two-Person Panel-Based Workstation with Integrated Over-Desk Storage Specifications
