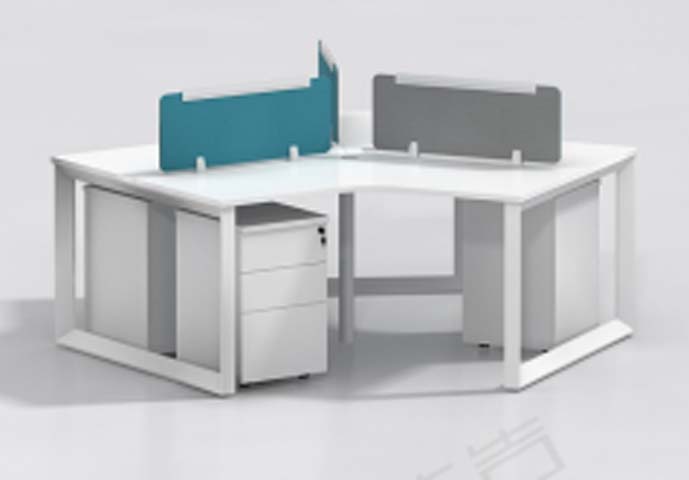

120-Degree 3-Person Modular Office Workstation with Privacy Dividers and Mobile Pedestal (model WS3-120D-WHT-001) is listed under Open Workstation, with overall dimensions of 2400 × 2400 × 1150 mm and main material of Particle‑board (PB). Load capacity: 120 kg. Certifications: Modular,cluster,layout,desktop,privacy,dividers,under-desk,storage,white,metal,O-frame,legs,lockable,mobile,pedestal. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall cluster dimensions | 2400 x 2400 x 1150 mm | |
|---|---|---|
| Per-seat work surface width | 1200 mm | |
| Per-seat work surface depth | 800 mm | |
| Fixed work surface height | 750 mm | |
| Knee clearance height under desk | 600 mm | |
| Privacy screen height above desktop | 400 mm | |
| Privacy screen thickness | 40 mm | |
| Worktop panel thickness | 25 mm | |
| PVC edge banding thickness | 2 mm | |
| Steel frame tube wall thickness | 1.5 mm | |
| Mobile pedestal dimensions | 400 x 500 x 600 mm | |
| Central support column diameter | 80 mm | |
| Leveling foot adjustment range | 10 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Worktop static load capacity | 120 kg | |
|---|---|---|
| Drawer slide cycle rating | 50000 cycles | |
| Net weight of full workstation set | 150 kg | |
| Recommended user weight capacity per seat | 130 kg | |
| Formaldehyde emission rating | E1 grade | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop substrate | 25mm E1 grade melamine-faced particleboard | |
|---|---|---|
| Support frame and legs | 1.5mm thick cold-rolled steel with white powder-coated finish | |
| Privacy dividers | Fabric-upholstered MDF core panels with two-tone teal/grey finish | |
| Mobile pedestal | 0.8mm steel body with white powder-coated finish, grey top surface | |
| Edge banding | 2mm thick impact-resistant PVC edging on all worktop edges | |
| Hardware | Steel connecting brackets, 3-section silent ball-bearing drawer slides, central pedestal lock |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management system | Integrated under-desk cable trays with 60mm desktop cable grommets per seat | |
|---|---|---|
| Leveling adjustment | Adjustable glide feet at each frame base to correct uneven floor surfaces | |
| Mobile pedestal storage | Lockable 3-drawer unit on casters, fits fully under desk for personal storage | |
| Privacy separation | Surface-mounted dividers between seats block direct line of sight for focused work |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office spaces | Ideal for 3-person team clusters, balances personal privacy and collaborative access | |
|---|---|---|
| Corporate and co-working environments | Suitable for high-density offices needing durable, easy-to-maintain workstations |
EU Market Access Requirements* EN Standards
| Office furniture safety standard | EN 527:2011 | |
|---|---|---|
| Formaldehyde emission standard | EN 13986:2004+A1:2015 E1 | |
| Upholstered screen fire resistance | EN 1021:2014 |
US and Canada office-furniture standards
| Office desk structural performance | ANSI/BIFMA X2021 | |
|---|---|---|
| Mobile pedestal performance | ANSI/BIFMA X2019 |
Standards applicable to China-market projects
| Formaldehyde emission standard | GB/T 39600E1 grade | |
|---|---|---|
| Office desk structural strength | GB/T 3324 | |
| Metal furniture coating durability | GB/T 1993 |
This product must meet the following technical requirements: 1. Formaldehyde emission standard: GB/T 39600E1 grade; 2. Office desk structural strength: GB/T 3324; 3. Metal furniture coating durability: GB/T 1993; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
