PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended seated users	4 persons
Distributed desktop load	120 kg
Single work-zone point load	30 kg
Pedestal drawer load	15 kg per drawer
Open storage shelf load	10 kg
Product net weight	85 kg
Pedestal caster or glide capacity	40 kg total
Warranty duration	5 years
Available workstation color count	2 finishes
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm engineered wood board with light oak-look melamine facing and sealed straight edge
Central pedestal	Light oak-look engineered wood carcass with two lockable drawer fronts and one open storage bay
Divider panels	Blue fabric-wrapped tackable panel with matching edge trim
Leg frame	Blue and white powder-coated square steel legs with horizontal desktop support rail
Drawer hardware	Black key locks with steel lock bars and side-mount drawer slides
Feet and floor protection	White polymer or coated steel foot caps with floor-contact glides

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Four-position work layout	Face-to-face double-sided bench provides four 1200 mm work positions separated by central screens
Privacy separation	Four low blue screens create individual visual separation without blocking overhead office lighting
Central storage	Shared pedestal combines two key-locked drawer fronts with an adjacent open under-desk cubby
Cable management	Desktop clips adjacent to each divider route monitor or laptop cables toward the central under-top channel

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton count	3 cartons
Total packed volume	0.480 CBM
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suitable for four employees in a compact open office or team zone, with low screens balancing privacy and communication
Project or administration area	Appropriate for hot-desking, clerical processing and laptop-based work where central lockable storage is required

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS4-2400-BLU-PED

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS4-2400-BLU-PED

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS4-2400-BLU-PEDOpen Export Tool

Quick Actions

Post an RFQ

Product Description

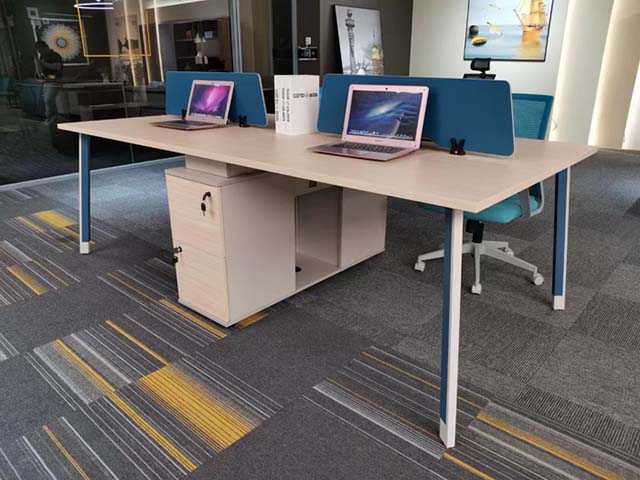

The Four-Person Shared Office Workstation with Blue Divider Panels and Central Lockable Pedestal is an unbranded office benching solution, model WS2400-BLU-PED. Its face-to-face, double-sided layout provides four 1200 mm work positions around a shared light oak-look top, making it a compact choice for team-based seating. Four low blue fabric screens run through the centre, giving each seated user visual separation while preserving an open feel and allowing overhead lighting to reach the work surface. Matching edge trim gives the divider panels a coordinated appearance, while blue and white powder-coated steel legs and horizontal support rails add a structured, modern contrast to the wood-tone surfaces. The work surface uses a 25 mm engineered wood board with light oak-look melamine facing and a sealed straight edge, producing a finished top thickness of 50 mm. Its central pedestal is made from light oak-look engineered wood and includes two lockable drawer fronts plus an adjacent open storage bay beneath the desk. Drawer security is provided by black key locks with steel lock bars, and side-mount slides support everyday drawer operation. White polymer or coated steel foot caps with floor-contact glides complete the base. The square steel legs have an 80 mm main section with a 2 mm metal wall, and each main seat offers 680 mm of knee clearance height and 900 mm of width. Designed for practical daily use, the workstation supports a distributed desktop load of 120 kg, a single work-zone point load of 30 kg, 15 kg per pedestal drawer, and 10 kg on the open shelf; the pedestal caster or glide capacity is 40 kg total. Cable management is built into the layout: desktop clips beside each divider guide monitor or laptop cables toward the central under-top channel, which includes an 80 mm cable opening and a cable tray with 120 mm depth. The central locked storage is suited to personal or team items, while the open cubby keeps shared materials accessible. This configuration fits open-plan offices, team zones, project rooms, and administration areas where four employees need a balance of privacy and communication. It is also appropriate for hot-desking, clerical processing, and laptop-based work that requires secure central storage. Procurement planning should account for multi-carton delivery, on-site assembly with a reference time of 40 minutes per set, and an 85 kg product net weight. The listed packaged information includes 3 cartons and 0.480 CBM packed volume, with a separate reference note of 180 kg gross weight per set in 4 cartons; buyers should confirm the applicable packing details and delivery terms before ordering.

Four-Person Shared Office Workstation with Blue Divider Panels and Central Lockable Pedestal Specifications
