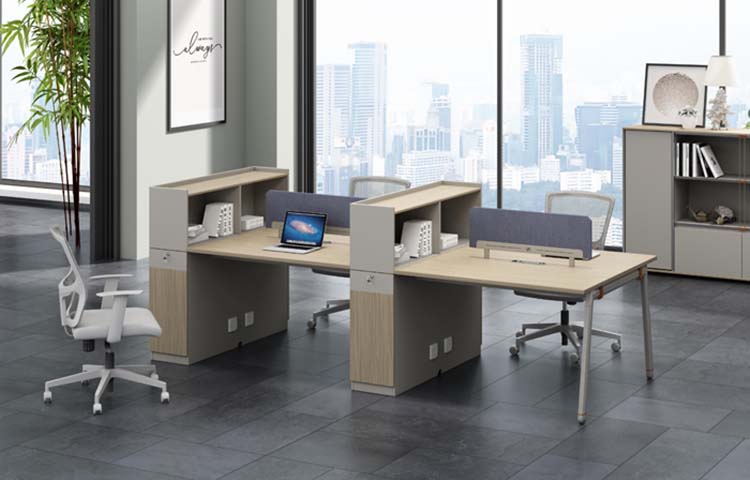

Four-Person Modular Office Workstation with Divider Screens and Storage Pedestals (model WS4-2800-1200-1100) is listed under Open Workstation. Dimensions: 2800 × 1200 × 1100 mm. Materials: 25 mm melamine-faced particleboard or MDF panel with impact-resistant PVC edge banding. Load capacity: 80 kg per seat. Product Features: modern,style,four-person,benching,layout,fabric,divider,screen,under-desk,storage,modular,structure. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | GENUOWA | Model | WS4-2800-1200-1100 |
| Finished Top Thickness | 50 mm | Effective Knee Clearance | 680 mm high and 900 mm wide per main seat |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
| Product net weight | 145 kg | Distributed worktop load | 80 kg per seat |
| Single storage shelf load | 15 kg | Occupant capacity | 4 users |
| Recommended monitor weight per seat | 12 kg | Pedestal static support load | 60 kg |
| Divider screen push resistance | 15 kg horizontal reference load | Surface durability target | 20000 abrasion cycles |
| Hardware cycle target | 50000 cycles | Top Static Load Reference | 150 kg uniformly distributed |
| Work surface | 25 mm melamine-faced particleboard or MDF panel with impact-resistant PVC edge banding | Storage cabinets | Melamine-faced engineered-wood panels in light oak and grey finishes with matching edge banding |
| Support legs | 50 mm powder-coated cylindrical steel legs with leveler-style end feet | Divider screen | Upholstered fabric panel over a composite board or metal frame with a light support rail |
| Cabinet backs and modesty panels | Grey melamine-faced panel with two rectangular cable or socket openings per support unit | Hardware and cable fittings | Steel connector plates, screw cam fittings, plastic cable grommets, and adjustable floor glides |
| Four-seat benching layout | Two back-to-back desk pairs provide four independently assigned work surfaces while sharing central screens and support units | Visual privacy division | A 350 mm upholstered central screen separates facing users and reduces direct sight lines without blocking ceiling light |
| Integrated open storage | Each outer hutch provides two open compartments for books, files, speakers, or small office equipment | Cable and socket routing | Lower cabinet panels include rectangular face openings for power sockets or cable pass-through, supporting laptop and monitor wiring |
| Largest carton dimensions | 1450 x 680 x 180 mm | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | Reference Packaging Volume | 1 m³/set |
| Open-plan office benching | Suitable for four-person team zones where users share circulation and cable infrastructure but retain separate work surfaces | Project-based procurement layout | Suitable for call centers, administration offices, and staff neighborhoods where repeated modular rows can be added side by side |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Product net weight | 145 kg | |
|---|---|---|
| Distributed worktop load | 80 kg per seat | |
| Single storage shelf load | 15 kg | |
| Occupant capacity | 4 users | |
| Recommended monitor weight per seat | 12 kg | |
| Pedestal static support load | 60 kg | |
| Divider screen push resistance | 15 kg horizontal reference load | |
| Surface durability target | 20000 abrasion cycles | |
| Hardware cycle target | 50000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25 mm melamine-faced particleboard or MDF panel with impact-resistant PVC edge banding | |
|---|---|---|
| Storage cabinets | Melamine-faced engineered-wood panels in light oak and grey finishes with matching edge banding | |
| Support legs | 50 mm powder-coated cylindrical steel legs with leveler-style end feet | |
| Divider screen | Upholstered fabric panel over a composite board or metal frame with a light support rail | |
| Cabinet backs and modesty panels | Grey melamine-faced panel with two rectangular cable or socket openings per support unit | |
| Hardware and cable fittings | Steel connector plates, screw cam fittings, plastic cable grommets, and adjustable floor glides |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Four-seat benching layout | Two back-to-back desk pairs provide four independently assigned work surfaces while sharing central screens and support units | |
|---|---|---|
| Visual privacy division | A 350 mm upholstered central screen separates facing users and reduces direct sight lines without blocking ceiling light | |
| Integrated open storage | Each outer hutch provides two open compartments for books, files, speakers, or small office equipment | |
| Cable and socket routing | Lower cabinet panels include rectangular face openings for power sockets or cable pass-through, supporting laptop and monitor wiring |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Largest carton dimensions | 1450 x 680 x 180 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office benching | Suitable for four-person team zones where users share circulation and cable infrastructure but retain separate work surfaces | |
|---|---|---|
| Project-based procurement layout | Suitable for call centers, administration offices, and staff neighborhoods where repeated modular rows can be added side by side |
EU Market Access Requirements* EN Standards
| EN 527-1 suitability | EN 527applies to office work surface dimensions, safety, and structural design for seated workstations | |
|---|---|---|
| EN 527-2 suitability | EN 527provides mechanical safety and stability test requirements suitable for the four-person desk structure | |
| EN 1022 suitability | EN 1022 seating stability is relevant only if the matching office chairs are included in the purchase scope | |
| EN 13986 suitability | EN 13986 is relevant for wood-based panel performance and declared characteristics used in tops and cabinets |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
| GB/T 3324 suitability | GB/T 3324 general technical requirements for wooden furniture are applicable to panel dimensions, edge quality, stability, and finish acceptance | |
|---|---|---|
| GB/T 3325 suitability | GB/T 3325 metal furniture technical requirements are applicable to steel legs, welded or assembled frames, and coating quality | |
| GB 18580 suitability | GB 18580 formaldehyde emission control for wood-based panels should be specified for engineered-wood desktop and cabinet panels | |
| GB/T 10357 suitability | GB/T 10357 furniture mechanical test methods are suitable for desk strength, stability, drawer, and load verification |
This product must meet the following technical requirements: 1. GB/T 3324 suitability: GB/T 3324 general technical requirements for wooden furniture are applicable to panel dimensions, edge quality, stability, and finish acceptance; 2. GB/T 3325 suitability: GB/T 3325 metal furniture technical requirements are applicable to steel legs, welded or assembled frames, and coating quality; 3. GB 18580 suitability: GB 18580 formaldehyde emission control for wood-based panels should be specified for engineered-wood desktop and cabinet panels; 4. GB/T 10357 suitability: GB/T 10357 furniture mechanical test methods are suitable for desk strength, stability, drawer, and load verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
