PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended users	2 persons
Static desktop load capacity	100 kg total
Distributed desktop load	50 kg per user zone
Pedestal drawer load	15 kg per drawer
Pedestal mobility load	45 kg per pedestal
Workstation net weight reference	105 kg
Leveling adjustment	10 mm per foot
Product service-life target	5 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surfaces	25 mm melamine-faced particleboard with impact-resistant PVC edge banding
Center dividers	Fabric-wrapped tackable panel over a composite core with framed edges
End modesty panel	25 mm light-gray melamine panel with matching edge banding
Support frame	Powder-coated steel cantilever and pedestal-support structure
Mobile pedestals	Steel drawer box with gray melamine or painted outer panels and recessed pulls
Cable ports	60 mm black plastic round grommets with removable covers

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating layout	Two users sit face-to-face across a shared 1200 mm depth, with 600 mm personal work-surface depth each
Privacy separation	Two 600 mm wide low divider panels provide visual screening between seated users while preserving open sight lines above
Cable routing	Desktop cables pass through 60 mm grommets and route below the work surface to under-desk power or floor outlets
Storage and mobility	Each user position is paired with a mobile two-drawer pedestal on casters for documents and personal storage

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office benching	Suitable for two-person clustered work areas where paired seating, under-desk filing, and low visual separation are required
Administrative workstation zones	Appropriate for clerical, customer-service, or back-office users with one monitor, keyboard, documents, and a personal mobile pedestal

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-2400-DP

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-2400-DP

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-2400-DPOpen Export Tool

Quick Actions

Post an RFQ

Product Description

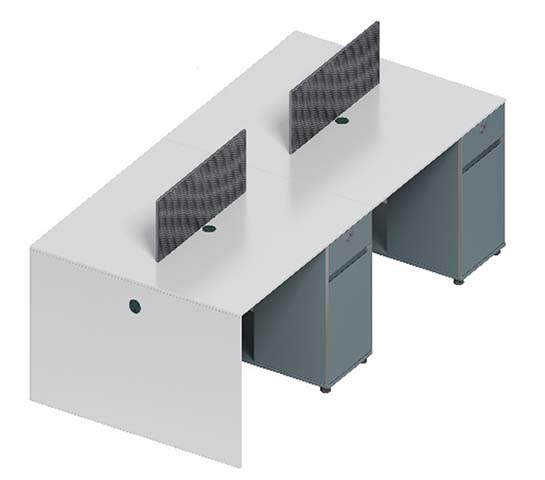

The Two-Person Face-to-Face Office Workstation with Dividers and Mobile Pedestals, model WS-2P-2400-DP, is an unbranded office workstation designed for paired seating in modern work environments. Its layout places two users opposite each other across a shared work-surface depth, giving each person a defined personal zone while maintaining a compact benching format. Two low, fabric-covered divider panels sit between the seated positions to provide visual screening and a degree of privacy without closing off the area above the panels. Visually, the workstation combines panel-based screening, rectangular work surfaces, and an exposed steel support structure for a clean commercial-office appearance. The end modesty panel is finished in light-gray melamine with matching edge banding, while the mobile pedestals use gray melamine or painted outer panels with recessed pulls. These restrained finishes support coordinated open-plan interiors and allow the workstation to fit within neutral administrative, clerical, customer-service, and back-office settings. The work surfaces are constructed from 25 mm melamine-faced particleboard with impact-resistant PVC edge banding. Center dividers consist of fabric-wrapped tackable panels over composite cores, with framed edges for a finished boundary. Support is provided by a powder-coated steel cantilever and pedestal-support structure, including an 80 mm main support section with 2 mm metal wall thickness. The finished top thickness is 50 mm, and each main seat position offers 680 mm of knee clearance height and 900 mm of width. Leveling feet allow 10 mm of adjustment to help adapt the installation to uneven floors. Each position is paired with a mobile two-drawer pedestal built with a steel drawer box, steel-and-panel construction, and casters. The pedestals provide mobile document and personal storage that can be moved under the workstation or repositioned as needed. Each drawer is rated for 15 kg of load, while pedestal mobility is rated for 45 kg per unit. The desktop supports a total static load of 100 kg, distributed as 50 kg per user zone, making the layout suitable for typical monitor, keyboard, and document-based tasks. Cable management is integrated through black plastic round grommets with removable covers. Cables pass from the desktop through the openings and route beneath the surface toward under-desk power or floor outlets. The cable opening is 60 mm in diameter, with an under-surface cable tray depth of 120 mm. This workstation is appropriate for two-person clustered work areas, open-plan benching, administrative zones, and residential office spaces where a structured two-user layout is required. Procurement planning should account for a 105 kg net workstation weight, mobile pedestals supplied as part of the set, and assembly referenced at 40 minutes per set. Packaging details vary in the supplied records, including two-carton and four-carton references, so shipment configuration should be confirmed at purchase along with delivery access, floor protection, assembly resources, and any required cable or power accessories.

Two-Person Face-to-Face Office Workstation with Dividers and Mobile Pedestals Specifications
