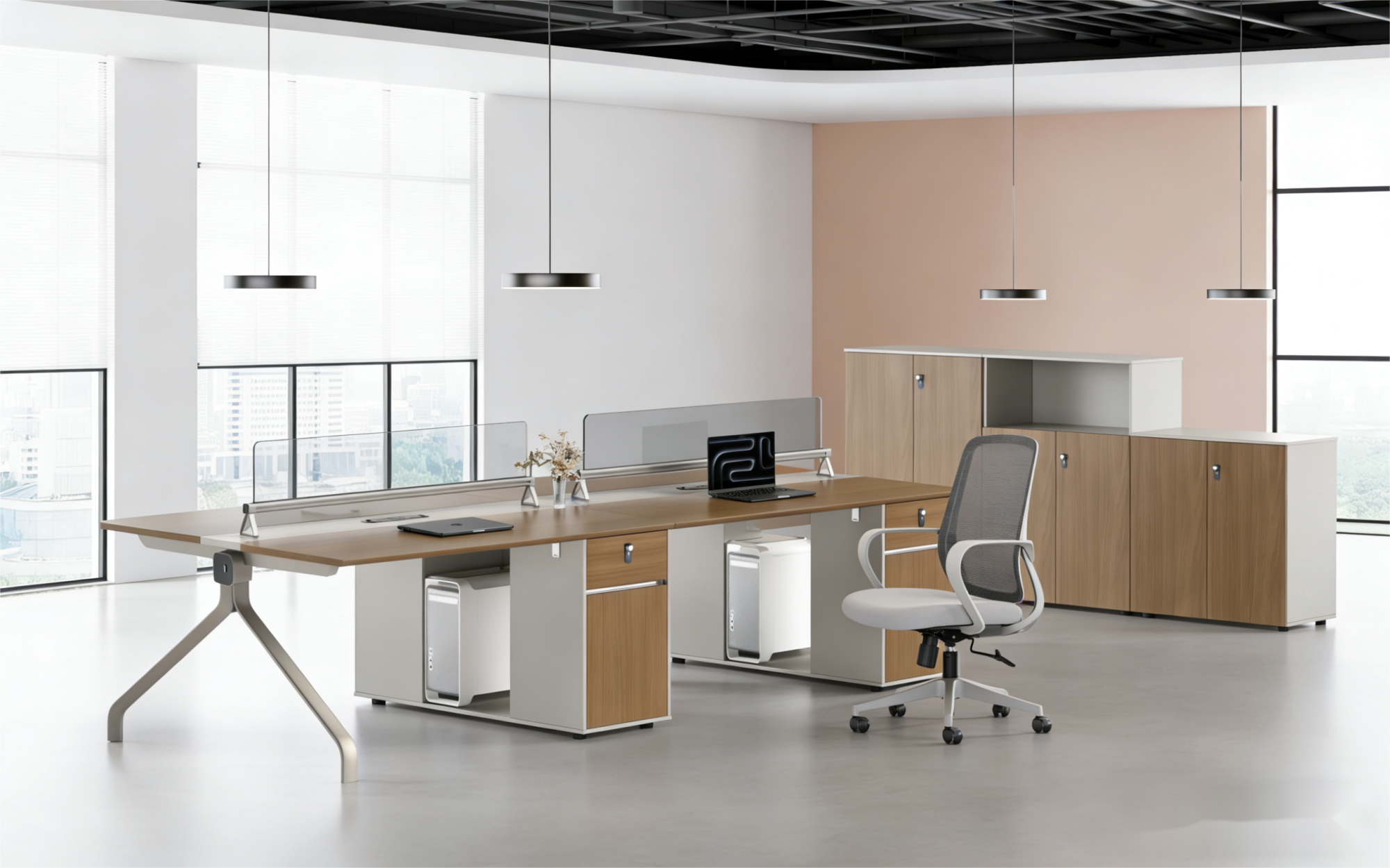

Four-Person Panel-Based Office Workstation with Glass Dividers and Mobile Pedestals (model WS-4P-WOOD-2800) is listed under Open Workstation. Dimensions: 2800 × 1400 × 1100 mm. Materials: 25 mm wood-grain melamine-faced particleboard with impact-resistant edge banding. Load capacity: 160 kg total, 40 kg per seat. Product Features: modern,four-person,workstation,wood-grain,laminate,glass,divider,metal,frame,under-desk,storage. This page consolidates 6 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | XIANGSHI | Model | WS-4P-WOOD-2800 |
| Overall dimensions (W × D × H) | 2800 × 1400 × 1100 mm | Finished Top Thickness | 50 mm |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | Leg / Support Section | 80 mm main section with 2 mm metal wall |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm | Distributed desktop static load | 160 kg total, 40 kg per seat |
| Pedestal top-drawer load | 15 kg | Pedestal file-drawer load | 25 kg |
| Glass divider impact safety | 6 mm tempered safety glass recommended | Mobile pedestal caster load | 40 kg per cabinet, four casters |
| Recommended users | 4 workers | Structure service target | 10 years under single-shift office use |
| Desktop deflection limit | L/200 under rated distributed load | Top Static Load Reference | 150 kg uniformly distributed |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | Work surface | 25 mm wood-grain melamine-faced particleboard with impact-resistant edge banding |
| Support and modesty panels | 18 mm light gray melamine-faced panels with sealed edges | Privacy dividers | Frameless smoked transparent tempered glass with silver metal mounting brackets |
| Leg frame | Silver powder-coated steel or aluminum splayed legs with floor glides | Pedestal body | Light gray laminate carcass with wood-grain drawer fronts and integrated lock |
| Hardware | Silver drawer pulls, cam locks, drawer slides, and black plastic caster housings | Seating layout | Four work positions share one rectangular 2-by-2 benching system with separate work zones |
| Privacy separation | Raised glass screens provide frontal sightline separation while retaining light transmission | Cable management | Two rectangular desktop grommets route power and data cables into the under-desk central channel |
| Under-desk equipment storage | Open floor bays accommodate two visible computer towers beside lockable pedestals | Packed volume | 2.10 CBM |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | Reference Packaged Gross Weight | 180 kg/set in 4 cartons |
| Reference Packaging Volume | 1 m³/set | Open-plan office | Suited to four-person team neighborhoods where glass screens preserve daylight while reducing visual distraction |
| Project and administrative teams | Supports laptops, desktops, filing, and personal lockable storage in one compact footprint | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2800 × 1400 × 1100 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Distributed desktop static load | 160 kg total, 40 kg per seat | |
|---|---|---|
| Pedestal top-drawer load | 15 kg | |
| Pedestal file-drawer load | 25 kg | |
| Glass divider impact safety | 6 mm tempered safety glass recommended | |
| Mobile pedestal caster load | 40 kg per cabinet, four casters | |
| Recommended users | 4 workers | |
| Structure service target | 10 years under single-shift office use | |
| Desktop deflection limit | L/200 under rated distributed load | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25 mm wood-grain melamine-faced particleboard with impact-resistant edge banding | |
|---|---|---|
| Support and modesty panels | 18 mm light gray melamine-faced panels with sealed edges | |
| Privacy dividers | Frameless smoked transparent tempered glass with silver metal mounting brackets | |
| Leg frame | Silver powder-coated steel or aluminum splayed legs with floor glides | |
| Pedestal body | Light gray laminate carcass with wood-grain drawer fronts and integrated lock | |
| Hardware | Silver drawer pulls, cam locks, drawer slides, and black plastic caster housings |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating layout | Four work positions share one rectangular 2-by-2 benching system with separate work zones | |
|---|---|---|
| Privacy separation | Raised glass screens provide frontal sightline separation while retaining light transmission | |
| Cable management | Two rectangular desktop grommets route power and data cables into the under-desk central channel | |
| Under-desk equipment storage | Open floor bays accommodate two visible computer towers beside lockable pedestals |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Packed volume | 2.10 CBM | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office | Suited to four-person team neighborhoods where glass screens preserve daylight while reducing visual distraction | |
|---|---|---|
| Project and administrative teams | Supports laptops, desktops, filing, and personal lockable storage in one compact footprint |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
