PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1800 × 1600 × 750 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended static desktop load	80 kg
Drawer static load	15 kg
Door compartment load	20 kg
Raised monitor shelf load	15 kg
Drawer slide durability	50000 open/close cycles
Lower cabinet shelf load	20 kg
Door hinge durability	100000 open/close cycles
Knee-bay impact and occupancy load	135 kg seated user load
Leveling system load per glide	40 kg
Finish abrasion resistance	Class 2B, 350 revolutions

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop	25 mm E1-class particleboard core with oak-look melamine face and 2 mm PVC edge banding
Storage cabinet carcass	18 mm light grey melamine-faced particleboard with 1 mm PVC edge banding
Drawer and door fronts	18 mm oak-look melamine particleboard with matched 1 mm PVC edge banding
Back and modesty panels	18 mm grey melamine-faced panel with rounded exposed front corners
Privacy screen	9 mm compact laminate or MDF core, light grey matte finish, 2 mm PVC edge
Monitor riser	18 mm grey and oak-look melamine board with two vertical panel supports

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

No data is available for this section.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EDU-LS-1800-STG-GRY-OAK

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EDU-LS-1800-STG-GRY-OAK

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EDU-LS-1800-STG-GRY-OAKOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The EDU-LS-1800-STG-GRY-OAK is an unbranded L-shaped executive workstation designed for users who need a substantial work surface, integrated storage, and a degree of desktop privacy in one coordinated layout. Its corner-oriented form combines a main work area with a return and storage pedestal, creating distinct zones for focused work, reference materials, and peripheral equipment. Oak-grain melamine on the worktop, drawer fronts, and door fronts is paired with light grey melamine cabinet panels, giving the desk a neutral commercial appearance suited to a wide range of interior palettes. A desktop-mounted privacy screen and modesty panels refine the visual separation, while the raised monitor riser helps organize the primary sightline and free up worktop space. Construction is based on melamine-faced particleboard panels. The worktop uses a 25 mm E1-class particleboard core with an oak-look melamine face and 2 mm PVC edge banding, producing a finished top thickness of 50 mm. The storage carcass uses 18 mm light grey melamine-faced particleboard with 1 mm PVC edge banding, and the drawer and door fronts use matching 18 mm oak-look melamine particleboard. Back and modesty panels are 18 mm grey melamine-faced panels with rounded exposed front corners. The privacy screen has a 9 mm compact laminate or MDF core, a light grey matte finish, and 2 mm PVC edging. Steel leveling feet provide floor contact and adjustment support, while the 80 mm main support section has a 2 mm metal wall. Functionally, the workstation integrates lockable drawer storage and a door compartment, with a lower cabinet shelf for additional filing or office items. The monitor riser is supported by two vertical panels, and cable management is handled through an 80 mm cable opening and a tray with 120 mm depth. The cable system is referenced for 10 power or data cables and a 10 kg tray load. Rated capacities include 80 kg for the desktop, 15 kg for each drawer and the raised monitor shelf, and 20 kg for the door compartment and lower cabinet shelf. Hardware durability is referenced at 50,000 drawer-slide cycles and 100,000 door-hinge cycles, while the main joints are intended to support 5 controlled assembly cycles. This workstation is well suited to private executive offices, management workspaces, consultation rooms, educational administrative offices, and refined residential studies where storage and cable containment are priorities. Procurement planning should account for delivery in multiple cartons, the stated 180 kg packaged gross weight, and assembly time of 40 minutes per set. Because logistics data references both a two-carton and four-carton configuration, buyers should confirm packaging count and handling resources before installation. The neutral oak and grey finish supports flexible furnishing schemes, while the L-shape should be checked against room circulation and seating clearances; the specified main seat offers 680 mm high and 900 mm wide knee clearance.

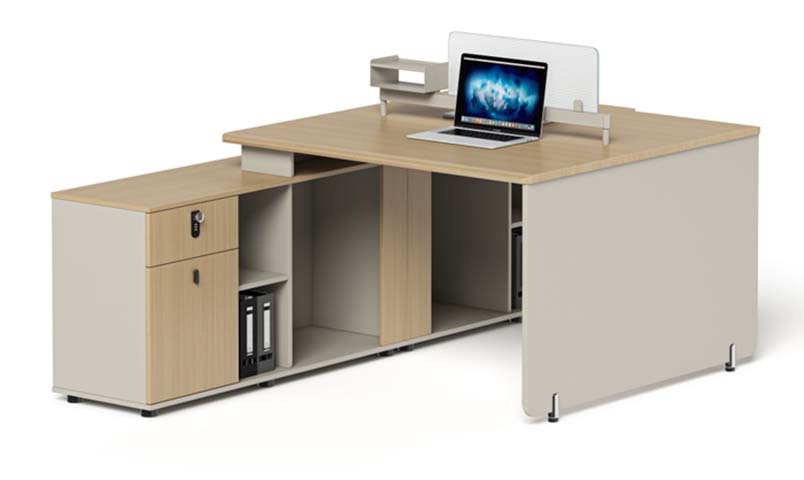

L-Shaped Executive Workstation with Integrated Storage Pedestal and Desktop Privacy Panel Specifications
