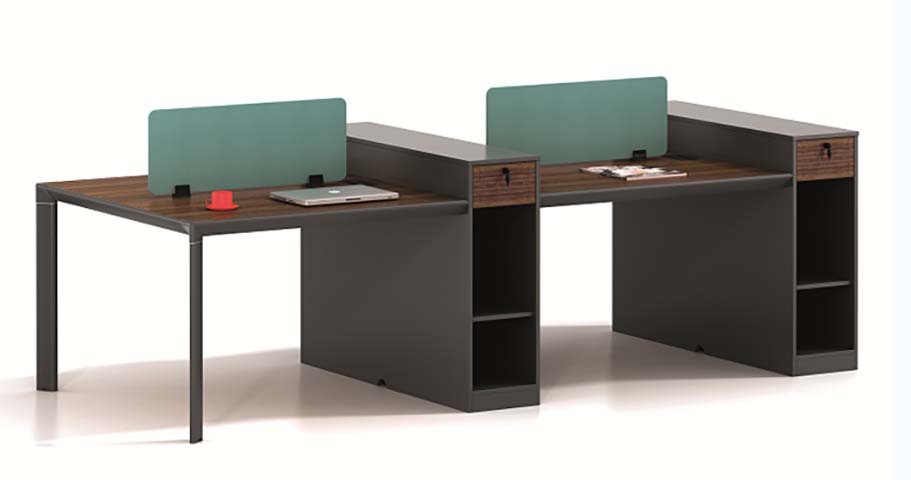

Two-Person Back-to-Back Office Workstation with Dividers and Side Storage (model WS-2P-2400) is listed under Open Workstation, with overall dimensions of 2400 × 1200 × 1100 mm and main material of Particle‑board (PB). Load capacity: 100 kg. Certifications: Modular,office,workstation,back-to-back,double,seat,integrated,storage,privacy,dividers,fixed-height,desk,open,shelving. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total static load capacity per worksurface | 100 kg | |
|---|---|---|
| Total product net weight | 125 kg | |
| Recommended user weight for seated use | 135 kg per seat | |
| Number of work positions | 2 | |
| Surface abrasion resistance (desktop) | 2000 cycles | |
| Stability safety factor | 1.5 | |
| Warranty period for structural components | 3 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop panel | 18mm thick E1 grade particleboard with walnut woodgrain melamine finish, 2mm PVC edge banding | |
|---|---|---|
| Support frame and legs | 1.2mm thick cold-rolled steel with matte black powder-coated finish, welded corner joints | |
| Modesty and storage panels | 25mm thick E1 grade particleboard with matte dark grey melamine finish | |
| Privacy dividers | 18mm thick MDF core wrapped in dark green stain-resistant polyester fabric, black steel mounting brackets | |
| Drawer fronts | 18mm thick particleboard with matching walnut melamine finish, fitted with keyed cam locks | |
| Hardware components | Zinc-plated steel cam locks, black plastic drawer pulls, steel shelf supports, adjustable floor glides |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Visual privacy separation | 350mm high fabric dividers block direct line of sight between adjacent and facing users | |
|---|---|---|
| Integrated lockable storage | 1 lockable top drawer per pedestal secures personal valuables and confidential documents | |
| Open under-desk shelving | 2 open compartments per pedestal provide easy access to documents and personal items without moving the chair | |
| Cable management access | 30mm diameter cable port cutout at bottom of modesty panel routes power and data cables to floor outlets |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office spaces | Provides separated work positions with integrated storage to reduce clutter and visual distraction in high-density offices | |
|---|---|---|
| Small startup and branch offices | Compact all-in-one design removes need for separate storage cabinets, reducing total furnishing footprint |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety, strength and durability requirements for commercial office use | |
|---|---|---|
| EN 1335-2:2009 | Office furniture stability requirements applicable to fixed-height desk structures | |
| EN 14372:2004 | Furniture hardware performance requirements for locks and connecting fittings |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for static load, durability and stability testing | |
|---|---|---|
| ANSI/BIFMA M7.1-2021 | Test method for office furniture structural durability of storage components | |
| ANSI/BIFMA e3-2019e | Furniture sustainability standard for material emissions and material content |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desktop and storage panel strength and finish quality | |
|---|---|---|
| GB/T 3327-2017 | Stability, strength and durability requirements for office desks and workstations | |
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, applicable to E1 grade panel substrate selection | |
| GB/T 10357.1-2013 | Desk static load and impact test methods for structural performance verification |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desktop and storage panel strength and finish quality; 2. GB/T 3327-2017: Stability, strength and durability requirements for office desks and workstations; 3. GB 18580-2017: Formaldehyde emission limit for wood-based panels, applicable to E1 grade panel substrate selection; 4. GB/T 10357.1-2013: Desk static load and impact test methods for structural performance verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
