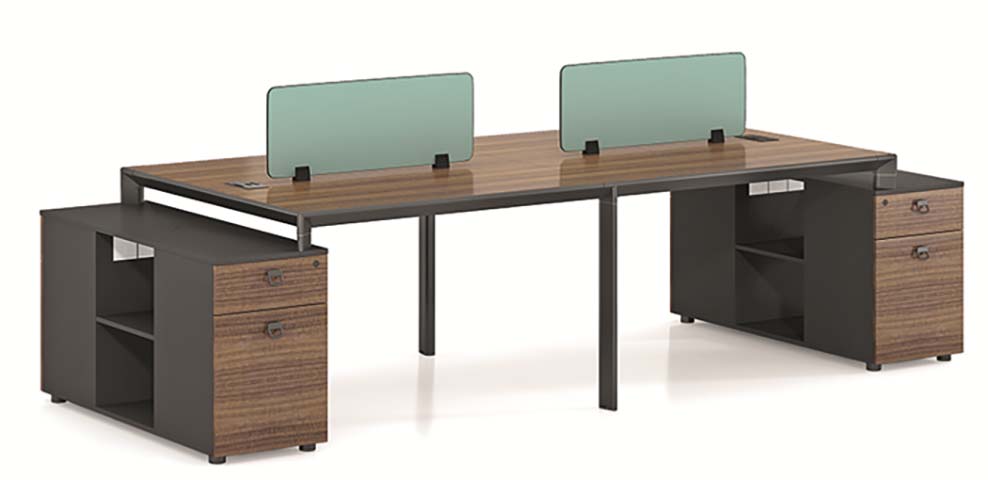

2-Person Side-by-Side Office Workstation with End Storage Pedestals and Frosted Privacy Dividers (model WS2-2400-WL-BLK) is listed under Open Workstation, with overall dimensions of 2400 × 600 × 750 mm and main material of Particle‑board (PB). Load capacity: 500 kg. Certifications: Modern,commercial,style,fixed-height,workstation,integrated,storage,privacy,dividers,cable,management. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall workstation dimensions | 2400 x 600 x 750 mm | |
|---|---|---|
| Desktop thickness | 25 mm | |
| Single work surface width per user | 1200 mm | |
| Privacy divider dimensions | 800 x 350 x 10 mm | |
| End storage pedestal dimensions | 400 x 600 x 650 mm | |
| Central metal support leg section | 60 x 30 mm | |
| Steel frame wall thickness | 1.5 mm | |
| PVC edge band thickness | 2 mm | |
| Cable grommet diameter | 76 mm | |
| Knee clearance height under desktop | 650 mm | |
| Drawer internal height per pedestal drawer | 250 mm | |
| Open shelf compartment height per pedestal | 300 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total desktop static load capacity | 500 kg | |
|---|---|---|
| Surface abrasion resistance | 40 mg/100r | |
| Powder coat finish hardness | 5H | |
| Formaldehyde emission level | 0.05 mg/m³ | |
| Total workstation net weight | 125 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop substrate | E1 grade particleboard with thermally fused walnut laminate finish | |
|---|---|---|
| Frame and legs | 1.5mm thick powder-coated square steel tubing | |
| Privacy dividers | Frosted semi-opaque acrylic with black plastic mounting brackets | |
| Cabinet panels | 18mm thick melamine-faced particleboard in matte black finish | |
| Edge protection | 2mm thick impact-resistant PVC edge banding on all desktop and cabinet edges | |
| Hardware components | Zinc-plated steel drawer slides, lock cores, and adjustable leveling glides |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Workstation layout | Side-by-side dual work zones separated by desktop privacy dividers for two seated users | |
|---|---|---|
| Storage configuration | Each end pedestal includes two lockable drawers and two open storage shelves for per-user storage | |
| Cable management | Dual desktop cable grommets route power and data cables to under-desk routing space | |
| Leveling adjustment | Adjustable plastic glides on pedestal bases compensate for uneven office flooring |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Shipping carton dimensions | 2450 x 650 x 120 mm (top carton), 800 x 450 x 680 mm (per pedestal carton), 850 x 400 x 80 mm (divider/frame carton) | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office space | Suits 2-person team clusters with partial visual privacy and dedicated per-user storage | |
|---|---|---|
| Small business and startup offices | Fits compact office footprints without requiring separate filing cabinets per user |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and strength requirements, applicable to workstation structural performance | |
|---|---|---|
| EN 13722:2004 | Office furniture storage units strength and durability requirements, applicable to pedestals | |
| EN 14073-2:2004 | Office storage furniture safety requirements, applicable to drawer and shelf components |
US and Canada office-furniture standards
| ANSI/BIFMA X5.1-2017 | Office desk performance and durability standard for static load and stability testing | |
|---|---|---|
| ANSI/BIFMA X5.3-2018 | Vertical files performance standard applicable to pedestal drawer load ratings |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk and cabinet components | |
|---|---|---|
| GB/T 3325-2017 | Test methods for metal furniture, applicable to steel frame and support components | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to engineered wood components | |
| GB/T 4897.3-2015 | Requirements for particleboard used in furniture, applicable to desktop and cabinet substrates |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk and cabinet components; 2. GB/T 3325-2017: Test methods for metal furniture, applicable to steel frame and support components; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to engineered wood components; 4. GB/T 4897.3-2015: Requirements for particleboard used in furniture, applicable to desktop and cabinet substrates; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
