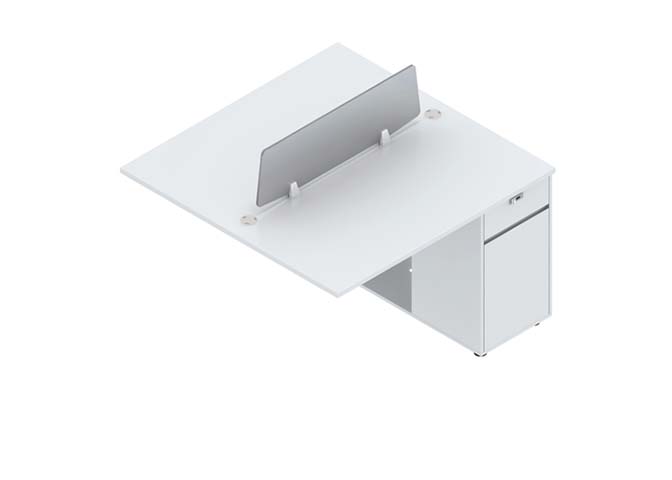

Two-Person Panel-End Workstation with Center Divider and Fixed Pedestal (model WS-2P-WHT-1200X1200-PED) is listed under Open Workstation. Dimensions: 1200 × 1200 × 1100 mm. Materials: 25 mm wood-composite board with smooth white melamine or laminate facing and sealed edges. Load capacity: 80 kg. Product Features: White,finish,two-person,layout,divider,fixed,storage,pedestal,panel-end,construction,cable,grommets. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | GENUOWA | Model | WS-2P-WHT-1200X1200-PED |
| Finished Top Thickness | 50 mm | Effective Knee Clearance | 680 mm high and 900 mm wide per main seat |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
| Product net weight | 64 kg | Distributed work surface load | 80 kg |
| Single cable grommet capacity | 2 cables | Drawer load capacity | 15 kg |
| Lower cabinet shelf load | 25 kg | Seating capacity | 2 users |
| Recommended user weight per seat | 120 kg | Leveling range | 10 mm |
| Suggested warranty period | 5 years | Top Static Load Reference | 150 kg uniformly distributed |
| Work surface substrate and finish | 25 mm wood-composite board with smooth white melamine or laminate facing and sealed edges | Pedestal panels | 18 mm white panel-product boards forming the drawer, door, side and back supports |
| Center divider | Gray smooth panel in a white or light-gray perimeter frame, mounted on two upright supports | Edge treatment | PVC or ABS edge banding on exposed work surface and cabinet edges, 2 mm thickness |
| Cable hardware | Two circular plastic or zinc-alloy grommets with removable caps, 60 mm diameter | Drawer and lock hardware | Steel drawer slides, hinged lower door and a front-mounted key lock cylinder |
| Two-person opposed work layout | The 1200 mm wide top is divided across its depth, giving each user a separate 600 mm work zone and cable port | Privacy and cable screen | A low 320 mm center panel reduces direct sightlines and provides a mounting spine between the two work surfaces |
| Cable management | Two 60 mm grommets route monitor power and data cables from the desk surface toward the under-desk area | Integrated storage support | The right pedestal combines a lockable shallow drawer with a lower hinged storage compartment and supports the work surface |
| Carton dimensions | 1260 x 660 x 110 mm and 760 x 640 x 180 mm | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | Reference Packaging Volume | 1 m³/set |
| Open-plan office benching | Suits two opposing staff positions in compact call centers, admin zones or renovation projects where cable ports and personal storage are required | Procurement configuration | Specify as a white two-person workstation with fixed right-hand pedestal; pair with ergonomic task chairs, under-desk cable trays and lock-keyed drawer allocation |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Product net weight | 64 kg | |
|---|---|---|
| Distributed work surface load | 80 kg | |
| Single cable grommet capacity | 2 cables | |
| Drawer load capacity | 15 kg | |
| Lower cabinet shelf load | 25 kg | |
| Seating capacity | 2 users | |
| Recommended user weight per seat | 120 kg | |
| Leveling range | 10 mm | |
| Suggested warranty period | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface substrate and finish | 25 mm wood-composite board with smooth white melamine or laminate facing and sealed edges | |
|---|---|---|
| Pedestal panels | 18 mm white panel-product boards forming the drawer, door, side and back supports | |
| Center divider | Gray smooth panel in a white or light-gray perimeter frame, mounted on two upright supports | |
| Edge treatment | PVC or ABS edge banding on exposed work surface and cabinet edges, 2 mm thickness | |
| Cable hardware | Two circular plastic or zinc-alloy grommets with removable caps, 60 mm diameter | |
| Drawer and lock hardware | Steel drawer slides, hinged lower door and a front-mounted key lock cylinder |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Two-person opposed work layout | The 1200 mm wide top is divided across its depth, giving each user a separate 600 mm work zone and cable port | |
|---|---|---|
| Privacy and cable screen | A low 320 mm center panel reduces direct sightlines and provides a mounting spine between the two work surfaces | |
| Cable management | Two 60 mm grommets route monitor power and data cables from the desk surface toward the under-desk area | |
| Integrated storage support | The right pedestal combines a lockable shallow drawer with a lower hinged storage compartment and supports the work surface |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Carton dimensions | 1260 x 660 x 110 mm and 760 x 640 x 180 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office benching | Suits two opposing staff positions in compact call centers, admin zones or renovation projects where cable ports and personal storage are required | |
|---|---|---|
| Procurement configuration | Specify as a white two-person workstation with fixed right-hand pedestal; pair with ergonomic task chairs, under-desk cable trays and lock-keyed drawer allocation |
EU Market Access Requirements* EN Standards
| Office furniture structural safety | EN 16139:2013 Level 2 strength, durability and stability requirements for non-domestic seating-supporting workstations | |
|---|---|---|
| Surface wear resistance | EN 14376 laminate abrasion and impact acceptance criteria for horizontal work surfaces | |
| Formaldehyde panel emissions | EN 13986 E1 declaration for wood-based panels used in built-in furniture | |
| Office storage safety | EN 14073:2004 safety requirements for drawer and door storage components |
US and Canada office-furniture standards
| Desk strength and durability | Recommended references: ANSI/BIFMA X2021 | |
|---|---|---|
| Storage pedestal performance | ANSI/BIFMA X2019drawer cycle, lock, door and stability requirements | |
| Power and cable integration | ANSI/BIFMA X2019cable-routing safety checks where powered accessories are added later |
Standards applicable to China-market projects
| Formaldehyde emission acceptance | GB/T 39600E1 limit applied to wood-based panels and finished panel components | |
|---|---|---|
| Wood-based furniture inspection | GB/T 3324dimensional tolerance, appearance, material and construction checks | |
| Desktop fire safety acceptance | GB 8624 B1 flame spread performance for laminate and panel components where fire rating is specified |
This product must meet the following technical requirements: 1. Formaldehyde emission acceptance: GB/T 39600E1 limit applied to wood-based panels and finished panel components; 2. Wood-based furniture inspection: GB/T 3324dimensional tolerance, appearance, material and construction checks; 3. Desktop fire safety acceptance: GB 8624 B1 flame spread performance for laminate and panel components where fire rating is specified; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
