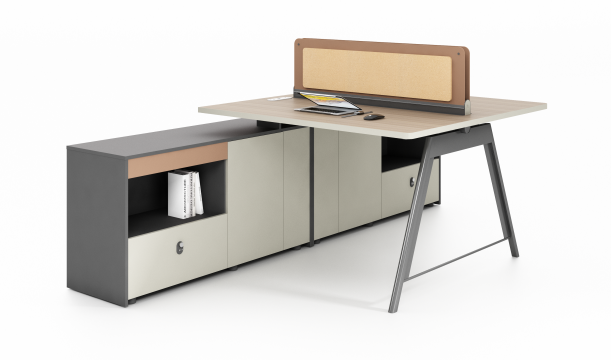

Primary sourceSingle Staff Office Workstation Desk with Integrated Side Storage Credenza and Upholstered Privacy Screen, Melamine-faced engineered wood, powder-coated steel frame, fabric-upholstered privacy screen, PVC ed
Stock 100; MOQ 1
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2800 × 600 × 1100 mm | |
|---|---|---|
| Fixed work surface height | 750 mm | |
| Single work surface dimensions | 1400 x 600 x 25 mm | |
| Privacy screen dimensions | 1400 x 350 x 20 mm | |
| Under-desk knee clearance (width x height x depth) | 1200 x 650 x 450 mm | |
| Integrated side storage credenza dimensions | 2400 x 400 x 650 mm | |
| Open storage shelf internal dimensions (per section) | 380 x 350 x 250 mm | |
| Closed cabinet door dimensions (per door panel) | 400 x 600 x 18 mm | |
| Steel A-frame leg tube section | 50 x 30 mm rectangular steel tube | |
| Steel leg wall thickness | 1.5 mm | |
| PVC edge banding thickness | 2 mm | |
| Cross-brace height from floor | 120 mm | |
| Finished Top Thickness | Approx. 30-50 mm | |
| Effective Knee Clearance | Approx. 620-680 mm high and 700-900 mm wide per main seat | |
| Leg / Support Section | Approx. 40-80 mm main section with 1.2-2.0 mm metal wall | |
| Cable Opening Size | Approx. 60-80 mm diameter; cable tray depth approx. 80-120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Complete workstation net weight range | 65-80 kg | |
|---|---|---|
| Work surface static load capacity | 120 kg | |
| Recommended maximum user weight for seated use | 110 kg | |
| Frame lateral stability load rating | 40 kg horizontal force at desk edge | |
| Adjustable floor glide adjustment range | 10 mm | |
| Standard commercial product warranty | 3 years | |
| Drawer slide cycle life | ≥50000 open/close cycles | |
| Cabinet hinge cycle life | ≥80000 open/close cycles | |
| Top Static Load Reference | Approx. 80-150 kg uniformly distributed | |
| Drawer Slide Load / Life | Approx. 25-45 kg/pair; 30,000-50,000 cycles | |
| Hinge Opening Life | Acceptance target 40,000-80,000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 3-5 years; hardware 2-3 years; finish 1-2 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25mm thick melamine-faced particle board (E1 grade low-formaldehyde) with light wood grain finish, 2mm PVC edge banding | |
|---|---|---|
| Privacy screen | 20mm thick medium-density fiberboard core, upholstered in beige woven polyester fabric with brown trim edge | |
| Storage cabinet panels | 18mm thick melamine-faced particle board, three-tone finish (dark grey end panels, light beige door/drawer fronts, light brown accent strip) | |
| Leg frame and cross-brace | 1.5mm thick cold-rolled rectangular steel tube, powder-coated matte grey finish, with welded joints and horizontal cross-brace | |
| Drawer hardware | Cold-rolled steel three-quarter extension drawer slides, zinc alloy keyed drawer locks | |
| Cabinet door hardware | 110-degree opening cold-rolled steel concealed hinges with soft-close function | |
| Surface finish performance | Melamine surfaces have scratch resistance rating ≥2H, stain resistance to common office liquids (coffee, ink, water), heat resistance to 80°C | |
| Floor protection | Nylon adjustable floor glides with non-slip rubber base at all leg and cabinet contact points | |
| Fasteners and connectors | Zinc-plated steel cam lock connectors and bolts for knock-down assembly | |
| Cable management grommet | 60mm diameter ABS plastic cable grommet with brush insert, fitted at rear edge of work surface adjacent to privacy screen | |
| Under-desk cable tray (optional) | 0.8mm thick powder-coated steel cable tray, mounts to leg cross-brace to hold power strips and excess cabling, 10kg load capacity | |
| Primary Panel Thickness | Approx. 18-25 mm; load-bearing top may use 25-40 mm composite build-up | |
| Edge Band Thickness | Approx. 1.0-2.0 mm | |
| Metal Frame Wall Thickness | Approx. 1.2-2.0 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support | |
| Reference Finish / Color Count | Recommended 3-6 top finishes and 1-3 frame colors |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage configuration | Integrated side credenza includes 2 lockable lower drawers, 2 open upper storage shelves, and 4 closed hinged cabinet doors, providing mixed open and secure enclosed storage for office files, supplies and personal items | |
|---|---|---|
| Privacy screen function | Rear-mounted upholstered screen blocks direct line of sight between adjacent seated workstations to reduce visual distraction, while retaining seated collaboration visibility above screen height | |
| Cable management | 60mm diameter plastic cable grommet positioned at rear of work surface adjacent to screen, routes power and data cables from desk surface to under-desk area, with optional under-desk cable tray compatible with frame cross-brace | |
| Leveling adjustment | 10mm height adjustment via rotating nylon floor glides on all legs and cabinet base, compensates for uneven office flooring to keep work surface level | |
| Drawer security | Keyed alike drawer locks on both lower storage drawers, secures personal items and confidential documents, each drawer comes with 2 keys | |
| Anti-tilt design | Storage credenza is structurally integrated with desk frame to prevent tipping when drawers are fully extended, meets commercial furniture anti-tilt safety requirements | |
| Modular compatibility | Desk unit is designed to connect to matching adjacent workstations to create 2/4/6-person clustered workstations via connecting brackets, supporting open office layout configuration | |
| Surface maintenance | Melamine work surface and cabinet panels are wipe-clean with standard office cleaning products, no special surface treatment required for regular maintenance | |
| Single lockable drawer (per storage section) internal dimensions | 380 x 350 x 150 mm | |
| Soft-close door function | Concealed cabinet hinges include integrated damping to close doors softly and silently from 15 degrees of opening, eliminating slamming noise in quiet office environments | |
| Cable grommet brush seal | Grommet fitted with nylon brush insert to prevent dust ingress into under-desk area while allowing cables to pass through without removing the grommet cover | |
| Lockable drawer internal dimensions (per drawer) | 380 x 350 x 150 mm | |
| Cable Management Capacity | Reference capacity 6-10 power/data cables; tray load approx. 5-10 kg | |
| Reference Reassembly Count | Main joints should support 3-5 controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Packaging form | Knock-down flat pack, 3 cartons total per complete workstation | |
|---|---|---|
| Carton 1 (desk and cabinet panels) dimensions | 1450 x 650 x 120 mm | |
| Carton 2 (steel frame and hardware) dimensions | 850 x 220 x 110 mm | |
| Carton 3 (privacy screen) dimensions | 1450 x 100 x 60 mm | |
| Total gross weight per workstation | 70-85 kg | |
| Total shipping volume (CBM) per workstation | 0.16 CBM | |
| Assembly time per workstation | 45-75 minutes for 1 trained assembler using standard hand tools | |
| 20ft GP container loading quantity | 108-125 units | |
| 40ft HQ container loading quantity | 270-305 units | |
| Packaging materials | 5-layer corrugated cardboard cartons, EPS foam corner protection, PE film wrapping for panels, sealed hardware bag with printed assembly manual |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office workstations | Suitable for single-seat deployment or clustered multi-seat open office layouts, privacy screen reduces cross-desk visual distraction for focused work | |
|---|---|---|
| Small business private offices | Fits compact private offices for staff or junior managers, integrated storage eliminates need for separate file cabinets to save floor space | |
| Shared co-working spaces | Durable commercial-grade construction and lockable storage support flexible co-working use, modular design allows reconfiguration of desk clusters as space needs change | |
| Administrative and clerical work areas | Ample work surface depth supports computer, document and office supply placement, mixed open/closed storage organizes frequently used supplies and archived files | |
| Educational institution staff offices | Sturdy construction and easy-to-clean surfaces suit school and university administrative offices, neutral two-tone finish matches institutional interior schemes | |
| Startup team open offices | Neutral modern finish and modular clustering capability suit flexible startup office layouts, integrated storage reduces upfront furniture cost by eliminating separate storage cabinet purchases |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 Office furniture - Work tables and desks - Part 1: Dimensions | Applies to ergonomic work surface height, knee clearance and dimensional requirements for seated office workstations | |
|---|---|---|
| EN 527-2:2002 Office furniture - Work tables and desks - Part 2: Mechanical safety requirements | Applies to structural stability, strength and safety requirements to prevent collapse or tipping during normal office use | |
| EN 13986:2004 Wood-based panels for use in construction - Characteristics, evaluation of conformity and marking | Applies to engineered wood panel performance and formaldehyde emission classification for desk and cabinet components | |
| EN 12521:2015 Furniture - Strength, durability and safety - Requirements for domestic tables | Reference standard for non-domestic table strength and durability performance for commercial office applications | |
| EN 15372:2016 Furniture - Strength, durability and safety - Requirements for non-domestic storage furniture | Applies to drawer load capacity, hinge durability and anti-tilt requirements for the integrated commercial storage credenza |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 Office Desks and Tables | Applies to static load, cyclic load, stability, drop test and durability performance requirements for commercial office workstations | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 Storage Units | Applies to drawer load capacity, slide cycle life, hinge durability, anti-tilt and safety requirements for the integrated storage credenza | |
| ANSI/BIFMA M7.1-2011 Standard Test Method for Determining VOC Emissions from Office Furniture Systems | Applies to volatile organic compound emission testing for indoor air quality compliance in commercial office spaces |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 General technical requirements for wooden furniture | Applies to dimensional tolerance, surface quality, edge banding and structural strength requirements for engineered wood desk and cabinet components | |
|---|---|---|
| GB/T 3327-2016 Office desks and tables | Applies to work surface height, load capacity, stability and dimensional accuracy requirements for fixed-height office workstations | |
| GB 18580-2017 Indoor decorating and refurbishing materials - Limit of formaldehyde emission from wood-based panels | Applies to formaldehyde emission limits for all engineered wood panels used in the desk and cabinet, minimum E1 grade required for commercial office furniture | |
| GB/T 10357.1-2013 Test of mechanical properties of furniture - Strength and durability of tables | Applies to static load, impact and durability testing for the work surface and frame structure |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017 General technical requirements for wooden furniture: Applies to dimensional tolerance, surface quality, edge banding and structural strength requirements for engineered wood desk and cabinet components; 2. GB/T 3327-2016 Office desks and tables: Applies to work surface height, load capacity, stability and dimensional accuracy requirements for fixed-height office workstations; 3. GB 18580-2017 Indoor decorating and refurbishing materials - Limit of formaldehyde emission from wood-based panels: Applies to formaldehyde emission limits for all engineered wood panels used in the desk and cabinet, minimum E1 grade required for commercial office furniture; 4. GB/T 10357.1-2013 Test of mechanical properties of furniture - Strength and durability of tables: Applies to static load, impact and durability testing for the work surface and frame structure; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
