| Submitted | Field | Original | Note / Status | |
|---|---|---|---|---|
No corrections yet. Use the flag at the end of a row to report an issue. | ||||
Automatic mm / inch conversion · Core engineering specifications
| Overall unit dimensions (W x D x H) | 1830 x 1220 x 762 mm | |
|---|---|---|
| Central privacy divider height | 360 mm above work surface | |
| Worktop thickness | 38 mm | |
| Knee clearance height under worktop | 680 mm | |
| Per-user work surface depth | 600 mm per side | |
| Per-user work surface width | 915 mm per side | |
| Side storage cabinet dimensions (W x D x H) | 400 x 600 x 680 mm | |
| Upper storage drawer internal dimensions | 350 x 520 x 120 mm | |
| Lower storage cabinet internal dimensions | 350 x 520 x 520 mm | |
| Edge banding thickness | 2 mm | |
| Cable pass-through cutout diameter | 80 mm | |
| Metal A-frame leg tubing section | 50 x 30 mm rectangular steel | |
| Divider mounting bracket height | 50 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall |
Net weight / load capacity / users / durability
| Upper drawer static load capacity | 25 kg | |
|---|---|---|
| Total unit net weight | 154 kg | |
| Recommended maximum user weight per seat | 136 kg | |
| Drawer slide cycle rating | 50000 open/close cycles | |
| Door hinge cycle rating | 100000 open/close cycles | |
| Work surface abrasion resistance | 2000 revolutions | |
| Surface stain and spill resistance rating | Level 4 for common office liquids | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Work surface | 38mm thick E1 grade particleboard core with light oak laminate finish | |
|---|---|---|
| Metal frame and legs | Powder-coated light grey steel A-frame with 1.5mm wall thickness | |
| Leg accent panel | Powder-coated orange steel cross brace between A-frame legs | |
| Central privacy divider | 18mm thick MDF core with matte light off-white laminate finish | |
| Storage cabinet carcase | 18mm thick E1 grade particleboard with light grey laminate finish | |
| Drawer front | 18mm thick MDF with matte off-white laminate and orange pull handle | |
| Cabinet door front | 18mm thick particleboard with matching light oak laminate and orange pull handle | |
| Hardware components | Orange-finished zinc alloy handles, black nylon leveling feet, steel mounting brackets | |
| Edge banding | 2mm thick PVC edge matching worktop and cabinet finish | |
| Cable grommet | ABS plastic cable pass-through with brushed finish | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm |
Adjustment / rotation / tilt / mobility / storage features

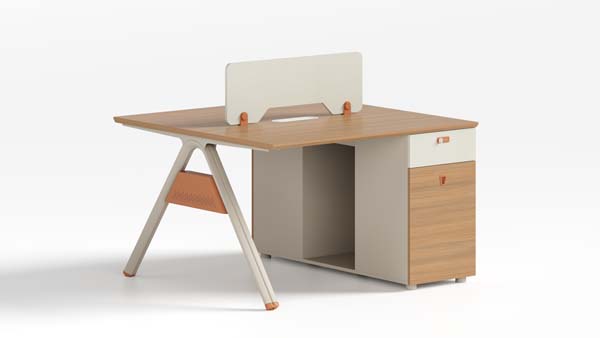

| Dual opposite-seat configuration | Supports two users seated face-to-face with divided work zones | |
|---|---|---|
| Integrated cable management | 80mm central cable pass-through routes power and data cables under divider | |
| Upper storage drawer | Full-extension ball-bearing slide provides full access to drawer interior | |
| Lower enclosed cabinet storage | Hinged door encloses lower storage space for personal items or CPU tower | |
| Open middle knee cavity | Unobstructed central leg space between left leg and right cabinet | |
| Leveling foot adjustment | 15mm height adjustment on all base feet | |
| Privacy screen function | 360mm high divider blocks direct line of sight between opposite users | |
| Knock-down assembly | Ships flat-packed with cam-lock and bolt hardware for on-site assembly | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
| Open plan office work zones | Ideal for 2-person team clusters in open offices, divider reduces cross-user distraction | |
|---|---|---|
| Small startup offices | Compact footprint fits small office spaces without requiring custom modular installation | |
| Co-working space dedicated desks | Durable commercial construction suitable for daily shared use in co-working environments | |
| Home office dual work setups | Provides separate dedicated work zones for two people working from home | |
| Departmental team workstations | Can be grouped in linear runs to create larger multi-seat workstation clusters | |
| Training and administrative areas | Sturdy construction supports training, paperwork and computer use for administrative staff |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applies to overall desk structure | |
|---|---|---|
| EN 527-2:2016 | Office worktables dimensional and safety requirements, applicable to ergonomic clearance | |
| EN 14073-2:2004 | Office storage furniture safety requirements, applies to drawer and cabinet components | |
| EN 14074:2004 | Office storage furniture strength and durability requirements, applies to hinges and slides |
US and Canada office-furniture standards
| BIFMA X5.5-2021 | Desk products standard for structural performance and durability of commercial desks | |
|---|---|---|
| BIFMA X5.9-2019 | Storage units standard for strength and durability of integrated cabinet components | |
| Single work surface static load capacity | 136 kg |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to worktop and cabinet components | |
|---|---|---|
| GB/T 3325-2017 | Metal furniture general technical requirements, applicable to steel frame components | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applies to all engineered wood parts | |
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable to worktop and cabinet core material |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to worktop and cabinet components; 2. GB/T 3325-2017: Metal furniture general technical requirements, applicable to steel frame components; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applies to all engineered wood parts; 4. GB/T 4897.3-2003: Particleboard for furniture use, applicable to worktop and cabinet core material; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
