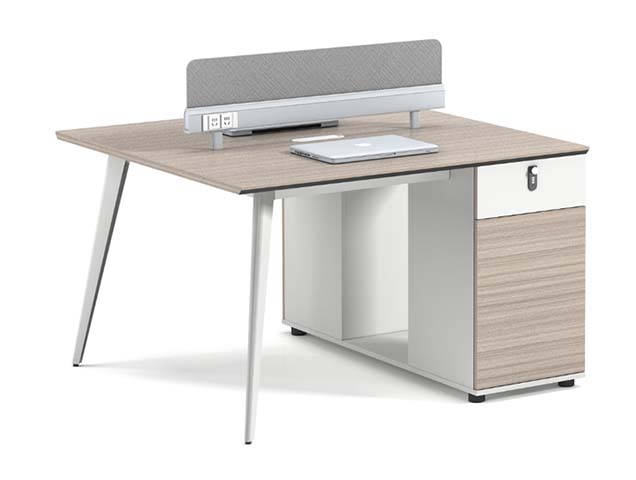

2-Person Face-to-Face Office Benching Workstation with Central Privacy Screen and Integrated Storage (model WS-2P-FTF-1400) is listed under Open Workstation, with overall dimensions of 1400 × 1400 × 750 mm and main material of Particle‑board (PB). Load capacity: 150 kg. Certifications: modern,style,2-person,benching,structure,fabric,privacy,divider,integrated,storage,power,outlets. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 1400 x 1400 x 1200 mm | |
|---|---|---|
| Central privacy screen height above desktop | 350 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load capacity | 150 kg | |
|---|---|---|
| Drawer slide cycle rating | 50000 cycles | |
| Cabinet hinge cycle rating | 80000 cycles | |
| Net weight (complete workstation) | 85 kg | |
| Laminate surface abrasion resistance | 2000 cycles | |
| Recommended user capacity | 2 persons | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worksurface | E1 grade MDF core with light wood grain laminate finish, PVC edge banding | |
|---|---|---|
| Support legs | Powder-coated mild steel square tube with non-marking plastic foot glides | |
| Central privacy screen | Particleboard core with grey woven fabric upholstery, silver metal trim | |
| Storage cabinet panels | 16 mm laminated MDF with matching wood grain door and white drawer front | |
| Hardware components | Zinc alloy central drawer lock, steel three-section ball-bearing drawer slides | |
| Power module | Silver ABS housing with integrated AC power outlets mounted to screen base |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Fixed height worksurface | Static 762 mm seated work height, no height adjustment mechanism | |
|---|---|---|
| Central privacy divider | Fabric screen blocks direct line of sight between facing users, mounts to desktop center | |
| Integrated power access | AC outlets positioned at divider base for easy device charging for both users | |
| Under-desk storage | One lockable top drawer, one wood grain cabinet door, two open vertical cubbies for supplies |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office benching | Suitable for 2-person shared work zones in open office layouts, with divider for visual privacy | |
|---|---|---|
| Staff task workstations | Ideal for administrative and operational staff requiring integrated storage and power access |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables and desks, safety and strength requirements for commercial use | |
|---|---|---|
| EN 1335-1:2000 | Office work furniture, dimensional and safety baseline for workstation seating compatibility |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard, applicable for static load and durability performance | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard, applicable for integrated cabinet and drawer components |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk panel and cabinet components | |
|---|---|---|
| GB/T 3325-2017 | General technical requirements for metal furniture, applicable to steel leg frame components | |
| GB 18584-2001 | Limit of harmful substances in wooden furniture, applicable to MDF panel materials |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk panel and cabinet components; 2. GB/T 3325-2017: General technical requirements for metal furniture, applicable to steel leg frame components; 3. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable to MDF panel materials; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
