PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2450 × 1220 × 1050 mm
Standard work surface height	750 mm
Per-user work surface width	1225 mm
Work surface thickness	25 mm
Central privacy divider height	300 mm
Under-desk knee clearance height	680 mm
PVC edge banding thickness	2 mm
End storage pedestal dimensions (per unit)	600 x 1220 x 720 mm
Central tripod leg footprint diameter	700 mm
Drawer internal usable depth	450 mm
Cable grommet diameter	60 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total unit gross weight	98 kg
Work surface static load capacity	120 kg
Maximum recommended concurrent users	4
Surface abrasion resistance rating	2000 cycles
Standard commercial warranty	5 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement Warranty	Structure 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop	25mm E1-grade melamine-faced particleboard
Cabinet frames	18mm melamine-faced MDF in dark navy finish
Drawer fronts	18mm melamine-faced MDF in sage green finish
Cabinet doors	18mm melamine-faced MDF in natural oak finish
Central support leg	1.5mm thick powder-coated steel tripod frame
Privacy dividers	15mm MDF core with matte green laminate surface
Edge banding	2mm thick matching PVC trim
Hardware	Brushed steel drawer pulls, keyed drawer locks, steel leveling feet
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

End pedestal storage layout	Each end has 1 lockable top drawer, 1 lower cabinet door, 2 open side shelves
Drawer locking mechanism	Keyed lock secures the top drawer for personal document storage
Central support structure	Tripod steel leg provides mid-span support to prevent worktop sag
Cable management	Dual desktop cable grommets route power and data cords below the work surface
Leveling adjustment	Adjustable feet on pedestal bases compensate for uneven office flooring
Privacy separation	Low central dividers screen seated users without blocking open office sightlines
Seating configuration	Face-to-face 2-per-side layout supports collaborative or individual focused work
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office staff areas	Provides 4 dedicated work positions with separated personal storage for department teams
Startup and co-working spaces	Flexible face-to-face layout supports both independent work and quick collaboration
Small business administrative offices	Integrated storage eliminates need for separate filing cabinets to save floor space
Project team work zones	Central low dividers reduce visual distraction while enabling easy team communication
Open office expansion projects	Modular structure can be clustered with matching units for larger team deployments

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and dimensional requirements for general office use
EN 15372:2016	Office furniture strength, durability and safety requirements for storage units

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to wood cabinetry and worktop
GB 18580-2017	Formaldehyde emission limits for engineered wood panels, applicable to all board components
GB/T 10357.1-2013	Desk strength and stability test methods for flat office work surfaces

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to wood cabinetry and worktop;
2. GB 18580-2017: Formaldehyde emission limits for engineered wood panels, applicable to all board components;
3. GB/T 10357.1-2013: Desk strength and stability test methods for flat office work surfaces;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFW-4P-TRI2412

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFW-4P-TRI2412

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFW-4P-TRI2412Open Export Tool

Quick Actions

Post an RFQ

Product Description

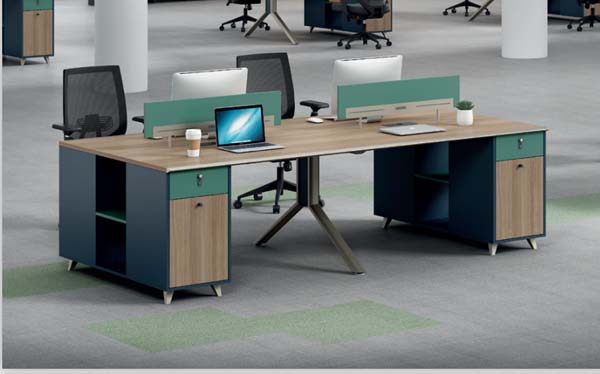

The OFW-4P-TRI24 unbranded 4-person face-to-face modular office workstation is a cluster-style workbench designed for contemporary commercial workspaces, balancing open collaboration, personal privacy, and built-in storage in a streamlined, space-efficient layout. Configured to seat two users per side across a central divider, the unit features a mixed-finish visual design: worktops pair with dark navy cabinet frames, sage green drawer fronts, natural oak cabinet doors, and matte green privacy panels, unified by matching PVC edge banding for a polished, coordinated look. The 300mm tall central privacy divider screens seated users to reduce visual distraction without blocking cross-space sightlines, supporting an open, connected office feel. Built for heavy daily commercial use, the workstation features a 25mm E1-grade melamine-faced particleboard worktop, with 18mm melamine-faced MDF for all cabinetry components. A 1.5mm thick powder-coated steel tripod leg sits at the unit’s center to provide mid-span support and prevent worktop sag, while 2mm thick matching PVC edge banding protects all panel edges from impact damage. Brushed steel drawer pulls, keyed drawer locks, and steel leveling feet come as standard hardware. The work surface holds a 120kg static load, with a 150kg uniformly distributed top load reference, and resists surface abrasion across 2000 cycles; drawer slides support 45kg per pair across 50000 operation cycles, and the unit is backed by a 5-year standard commercial warranty. Functional design details cater to daily office needs: dual desktop cable grommets route power and data cords below the work surface to reduce desktop clutter, while adjustable feet on pedestal bases compensate for uneven flooring. The integrated end storage pedestals, one at each end of the unit, each include one lockable top drawer for secure personal document storage, one lower cabinet door, and two open side shelves, eliminating the need for separate freestanding filing cabinets. The 750mm standard work surface height and 680mm under-desk knee clearance support comfortable seated use for all four recommended concurrent users. This workstation is well suited for open-plan office staff areas, startup and co-working spaces, small business administrative offices, project team work zones, and phased open office expansion projects, as its modular structure allows clustering with matching units to accommodate larger teams. Procurement teams should note that each unit ships across multiple cartons with a total packaged gross weight of 180kg and 1 cubic meter packaging volume, requires 40 minutes of assembly time per set, and offers 1225mm of personal work surface width per user to support both focused individual tasks and quick, impromptu collaboration across the face-to-face layout.

4-Person Face-to-Face Modular Office Workstation with Integrated Storage Pedestals Specifications
