PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Workstation seating capacity	4 users
Distributed worktop static load	120 kg total
Pedestal drawer load	15 kg
Lower cabinet shelf load	20 kg
Desktop hutch shelf load	10 kg per compartment
Privacy screen impact load	15 kg horizontal
Steel frame static stability load	240 kg total
Suggested chair clearance zone	800 mm depth behind seat
Net weight reference	165 kg per complete workstation
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm melamine-faced particleboard with PVC edge banding
Support pedestals	18 mm melamine-faced particleboard in light gray and oak-look fronts
Desktop hutch	18 mm melamine-faced particleboard with open compartments and solid top
Privacy screens	30 mm fabric-wrapped panel over engineered board or fiber core
Support frame	Powder-coated light gray square steel tube with angled legs and leveling feet
Hardware	Steel cam connectors, drawer lock, hinges or slides, and adjustable glides

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Work layout	Four users occupy two opposite benches, with each position receiving a 1200 mm wide surface and center screen
Privacy division	Two 300 mm high upholstered screens separate opposite sight lines while retaining open supervision above the panel
Integrated storage	Each fixed pedestal provides one upper lockable drawer and one lower enclosed storage bay for personal or team items
Desktop organization	Each low hutch provides two open compartments for books, documents and small objects without blocking monitor space

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total packed gross weight	185 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suits four staff in a compact cluster while using fabric screens to reduce direct visual distraction
Project or administrative team area	Fixed pedestals and open hutch cubbies support daily documents, laptops and shared reference material

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS4-OAK-WHT-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS4-OAK-WHT-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS4-OAK-WHT-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

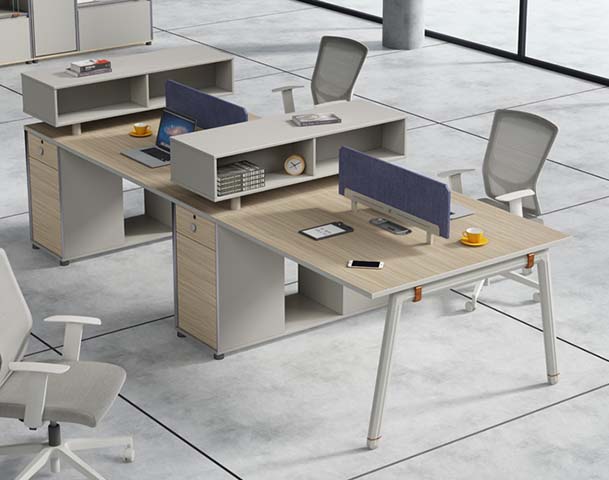

The Four-Person Modular Office Workstation with Dividers and Storage Hutch, model WS4-OAK-WHT-2800, presents a balanced benching solution for teams that need defined personal space without a fully enclosed feel. Its unbranded design arranges four users across two opposite benches, with each position receiving a 1200 mm wide work surface and a central dividing screen. Two upholstered privacy screens stand 300 mm high, separating opposite sight lines while preserving open supervision above the panels. The visual character combines oak-look fronts with light gray support pedestals, fabric-wrapped dividers, and a light gray powder-coated steel frame, producing a clean, contemporary office appearance. Construction uses melamine-faced particleboard throughout the work and storage components. The work surface is 25 mm thick with PVC edge banding, while support pedestals and the desktop hutch use 18 mm board. The finished top thickness is 50 mm. Angled legs are formed from square steel tube with an 80 mm main section and 2 mm metal wall, fitted with leveling feet for alignment on varied floors. Privacy panels are 30 mm fabric-wrapped sections over an engineered board or fiber core. Steel cam connectors, a drawer lock, hinges or slides, and adjustable glides complete the hardware specification. Each fixed pedestal includes one upper lockable drawer and one lower enclosed storage bay for personal or team belongings. Above the desktop, a low hutch provides two open compartments for books, documents, and small items while retaining space for monitors. Cable management is integrated through an 80 mm diameter opening and a cable tray with 120 mm depth. Per main seat, effective knee clearance is 680 mm high and 900 mm wide. Rated capacities include 120 kg distributed static load across the worktop, 15 kg per pedestal drawer, 20 kg for the lower cabinet shelf, and 10 kg per hutch compartment. The privacy screen supports 15 kg horizontal impact load, and the steel frame is rated for 240 kg total static stability load. This workstation is well suited to open-plan offices where a compact four-person cluster can benefit from reduced direct visual distraction. It also fits project and administrative team areas requiring daily access to documents, laptops, and shared reference material. Buyers should plan for assembly, specified at 40 minutes per set, and confirm delivery details because packaging references list both a two-carton and a four-carton configuration, with packaged gross weight stated as 180 kg per set and total packed gross weight as 185 kg. The stated packaging volume is 1 cubic meter per set.

Four-Person Modular Office Workstation with Dividers and Storage Hutch Specifications
