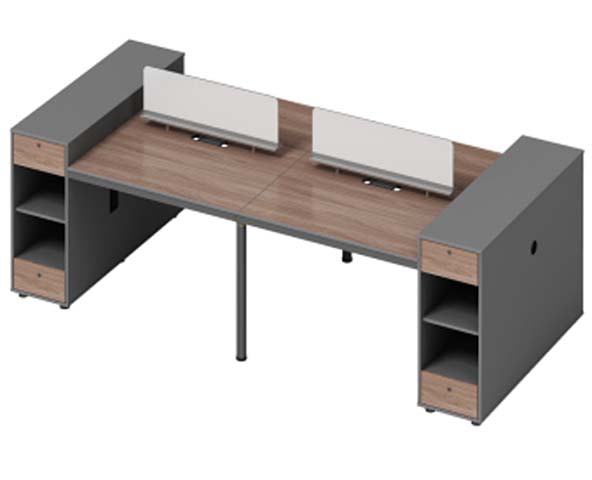

Product supplierTwo-Person Workstation with Side Storage Pedestals and Desk Screens, 25 mm melamine-faced wood-composite panel with matching edge banding
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Product net weight | 155 kg | |
|---|---|---|
| Distributed worktop load | 80 kg | |
| Single drawer load | 15 kg | |
| Open shelf load | 20 kg | |
| Supported users | 2 persons | |
| Drawer slide durability | 50000 cycles | |
| Leveling adjustment | 15 mm | |
| Warranty period | 5 years | |
| Distributed worktop static load | 80 kg per person zone | |
| Pedestal top static load | 40 kg |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop | 25 mm melamine-faced wood-composite panel with matching edge banding | |
|---|---|---|
| Drawer fronts | 18 mm melamine-faced composite panel in walnut wood-grain finish | |
| Cabinet carcass | 18 mm charcoal-grey composite panel with sealed exposed edges | |
| Support frame and legs | Powder-coated charcoal steel round leg with under-top metal rail | |
| Privacy screens | 25 mm light-grey upholstered or laminated panel with metal support feet | |
| Hardware | Steel locks, drawer slides, fixing brackets and adjustable leveling feet |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Two-position layout | Two independently facing work positions share one continuous worktop and central support zone | |
|---|---|---|
| Personal storage | Each side pedestal includes one upper lockable drawer, one open shelf and one lower lockable drawer | |
| Visual privacy | Two low desk-mounted screens separate adjacent monitor zones while preserving overhead visibility | |
| Cable management | Black cable ports with twin grommet openings are fitted at each screen base for monitor and power leads |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office benching | Install in two-person clusters for administrative staff; 350 mm screens reduce visual distraction while retaining collaboration. | |
|---|---|---|
| Supervisor or shared-service workspace | Use for two adjacent operators needing personal lockable drawers and immediate access to shared files or peripherals. |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
No standards data is available for this market.
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2024 General technical requirements for wooden furniture | applies to panel dimensions, workmanship, stability and edge finishing acceptance. | |
|---|---|---|
| GB/T 3325-2017 Test methods for metallic furniture | applies to steel leg, frame, coating and structural strength verification. | |
| GB/T 10357.5-2011 Furniture test for surface durability | applies to melamine worktop resistance to wear, heat, stain and impact. | |
| GB 18580-2017 Formaldehyde emission for interior decoration materials | applies to procurement acceptance of wood-composite panels. |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2024 General technical requirements for wooden furniture: applies to panel dimensions, workmanship, stability and edge finishing acceptance.; 2. GB/T 3325-2017 Test methods for metallic furniture: applies to steel leg, frame, coating and structural strength verification.; 3. GB/T 10357.5-2011 Furniture test for surface durability: applies to melamine worktop resistance to wear, heat, stain and impact.; 4. GB 18580-2017 Formaldehyde emission for interior decoration materials: applies to procurement acceptance of wood-composite panels.; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
