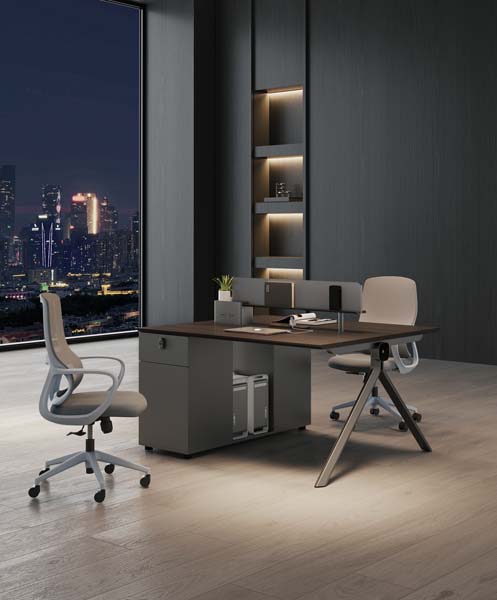

Two-Person Straight Office Workstation with Lockable Left Pedestal, CPU Bay and Desktop Privacy Dividers (model WS-2P-YLEG-PED-2800) is listed under Open Workstation. Dimensions: 2850 × 700 × 1100 mm. Materials: 25mm E1 grade melamine-faced MFC panel, dark walnut woodgrain finish. Load capacity: 200 kg. Product Features: Modern,commercial,style,fixed,2-person,layout,integrated,lockable,storage,open,CPU,bay,angled,metal,support,legs,desktop,privacy,dividers. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | Fanshidun | Model | WS-2P-YLEG-PED-2800 |
| Overall dimensions (W × D × H) | 2850 × 700 × 1100 mm | Working desktop height (floor to table top) | 750 mm |
| Desktop panel thickness | 25 mm | Left storage pedestal dimensions | 1200 x 500 x 750 mm |
| Under-desk CPU bay dimensions | 350 x 500 x 450 mm | Minimum seated knee clearance height | 680 mm |
| Privacy divider height above desktop | 300 mm | PVC edge banding thickness | 2 mm |
| Angled Y-shaped metal leg tubing diameter | 60 mm | Desktop cable grommet diameter | 60 mm |
| Under-desk knee clearance width per user | 1200 mm | Drawer internal usable dimensions | 400 x 450 x 150 mm |
| Finished Top Thickness | 50 mm | Effective Knee Clearance | 680 mm high and 900 mm wide per main seat |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
| Desktop static uniform load capacity | 200 kg | Drawer slide open/close cycle rating | 50000 cycles |
| Cabinet door hinge open/close cycle rating | 80000 cycles | Product net weight | 150 kg |
| Recommended maximum user weight per seat position | 150 kg | Surface abrasion resistance rating | 2000 cycles |
| Frame warranty period | 3 years | Available standard finish color options | 5 |
| Top Static Load Reference | 150 kg uniformly distributed | Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
| Desktop substrate and finish | 25mm E1 grade melamine-faced MFC panel, dark walnut woodgrain finish | Storage pedestal construction | 18mm matching grey melamine-faced MDF/MFC panels, lockable metal lock core |
| Support leg construction | 1.5mm thick powder-coated steel Y-shaped splay legs, two-tone grey and black finish | Edge sealing material | 2mm thick PVC edge banding on all exposed panel edges, matching finish |
| Privacy dividers | 12mm thick grey MDF core panel dividers, matte surface finish | Cabinet hardware | Cold rolled steel drawer slides, metal hinges, integrated cam lock for drawer and lower door |
| Cable management components | ABS plastic cable grommets, 0.8mm thick steel under-desk cable tray | Foot pads under storage pedestal | Nylon adjustable glide feet, 10mm height adjustment range |
| Included task chair upholstery | Breathable mesh backrest, fabric seat cushion, 40mm high density foam padding | Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up |
| Edge Band Thickness | 2 mm | Metal Frame Wall Thickness | 2 mm cold-rolled steel |
| Integrated storage function | Left pedestal includes 1 lockable upper drawer and 1 lockable lower door cabinet for secure office supply storage | CPU storage function | Open floor-standing bay between pedestal and leg accommodates full-size office PC towers without extra holders |
| Privacy separation function | Low desktop dividers separate two work positions to reduce visual distraction in open offices | Cable management function | Desktop grommets route power and data cables directly to under-desk cable tray to keep work surface clear |
| Stability function | Combined full-height pedestal support and angled Y-leg provides four-point stable support with no cross-bar leg obstruction | Floor protection function | Adjustable nylon glides under pedestal prevent floor scratching and compensate for uneven floor surfaces |
| Storage lock function | Single cam lock secures both drawer and lower cabinet door to restrict unauthorized access to stored items | Assembly function | Knock-down design with cam lock and bolt connections for on-site assembly with standard hand tools |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | Reference Packaged Gross Weight | 180 kg/set in 4 cartons |
| Reference Packaging Volume | 1 m³/set | Open plan corporate office space | Provides dedicated separate work positions for two staff members with visual privacy and integrated storage |
| Small business and startup work areas | Combines work surface, secure storage and CPU space in one footprint to save limited office floor space | Shared administrative workspace | Supports daily document processing, computer work and supply storage for administrative or operations staff |
| Project team collaboration zones | Two adjacent positions allow close team collaboration while maintaining individual work surface privacy | 24/7 commercial office environments | Durable commercial-grade construction withstands frequent daily use in high-traffic office settings |
| Recommended configuration for procurement | Pair with ergonomic mesh task chairs, monitor arms and under-desk cable management kits for full workstation setup | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2850 × 700 × 1100 mm | |
|---|---|---|
| Working desktop height (floor to table top) | 750 mm | |
| Desktop panel thickness | 25 mm | |
| Left storage pedestal dimensions | 1200 x 500 x 750 mm | |
| Under-desk CPU bay dimensions | 350 x 500 x 450 mm | |
| Minimum seated knee clearance height | 680 mm | |
| Privacy divider height above desktop | 300 mm | |
| PVC edge banding thickness | 2 mm | |
| Angled Y-shaped metal leg tubing diameter | 60 mm | |
| Desktop cable grommet diameter | 60 mm | |
| Under-desk knee clearance width per user | 1200 mm | |
| Drawer internal usable dimensions | 400 x 450 x 150 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static uniform load capacity | 200 kg | |
|---|---|---|
| Drawer slide open/close cycle rating | 50000 cycles | |
| Cabinet door hinge open/close cycle rating | 80000 cycles | |
| Product net weight | 150 kg | |
| Recommended maximum user weight per seat position | 150 kg | |
| Surface abrasion resistance rating | 2000 cycles | |
| Frame warranty period | 3 years | |
| Available standard finish color options | 5 | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop substrate and finish | 25mm E1 grade melamine-faced MFC panel, dark walnut woodgrain finish | |
|---|---|---|
| Storage pedestal construction | 18mm matching grey melamine-faced MDF/MFC panels, lockable metal lock core | |
| Support leg construction | 1.5mm thick powder-coated steel Y-shaped splay legs, two-tone grey and black finish | |
| Edge sealing material | 2mm thick PVC edge banding on all exposed panel edges, matching finish | |
| Privacy dividers | 12mm thick grey MDF core panel dividers, matte surface finish | |
| Cabinet hardware | Cold rolled steel drawer slides, metal hinges, integrated cam lock for drawer and lower door | |
| Cable management components | ABS plastic cable grommets, 0.8mm thick steel under-desk cable tray | |
| Foot pads under storage pedestal | Nylon adjustable glide feet, 10mm height adjustment range | |
| Included task chair upholstery | Breathable mesh backrest, fabric seat cushion, 40mm high density foam padding | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Integrated storage function | Left pedestal includes 1 lockable upper drawer and 1 lockable lower door cabinet for secure office supply storage | |
|---|---|---|
| CPU storage function | Open floor-standing bay between pedestal and leg accommodates full-size office PC towers without extra holders | |
| Privacy separation function | Low desktop dividers separate two work positions to reduce visual distraction in open offices | |
| Cable management function | Desktop grommets route power and data cables directly to under-desk cable tray to keep work surface clear | |
| Stability function | Combined full-height pedestal support and angled Y-leg provides four-point stable support with no cross-bar leg obstruction | |
| Floor protection function | Adjustable nylon glides under pedestal prevent floor scratching and compensate for uneven floor surfaces | |
| Storage lock function | Single cam lock secures both drawer and lower cabinet door to restrict unauthorized access to stored items | |
| Assembly function | Knock-down design with cam lock and bolt connections for on-site assembly with standard hand tools | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan corporate office space | Provides dedicated separate work positions for two staff members with visual privacy and integrated storage | |
|---|---|---|
| Small business and startup work areas | Combines work surface, secure storage and CPU space in one footprint to save limited office floor space | |
| Shared administrative workspace | Supports daily document processing, computer work and supply storage for administrative or operations staff | |
| Project team collaboration zones | Two adjacent positions allow close team collaboration while maintaining individual work surface privacy | |
| 24/7 commercial office environments | Durable commercial-grade construction withstands frequent daily use in high-traffic office settings | |
| Recommended configuration for procurement | Pair with ergonomic mesh task chairs, monitor arms and under-desk cable management kits for full workstation setup |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables, safety and strength requirements for commercial workstations | |
|---|---|---|
| EN 527-2:2016 | Office work tables, mechanical safety test methods for structural verification | |
| EN 13722:2004 | Office furniture storage pedestals, strength and durability requirements |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard, defines load, stability and durability test requirements | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard, applies to integrated pedestal performance requirements |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for panel structural performance | |
|---|---|---|
| GB/T 3325-2017 | Metal furniture general technical requirements, applicable for steel leg structural strength | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, E1 grade ≤0.124mg/m³ requirement | |
| GB/T 10357.1-1989 | Furniture test method for desk table strength and stability |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for panel structural performance; 2. GB/T 3325-2017: Metal furniture general technical requirements, applicable for steel leg structural strength; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, E1 grade ≤0.124mg/m³ requirement; 4. GB/T 10357.1-1989: Furniture test method for desk table strength and stability; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
